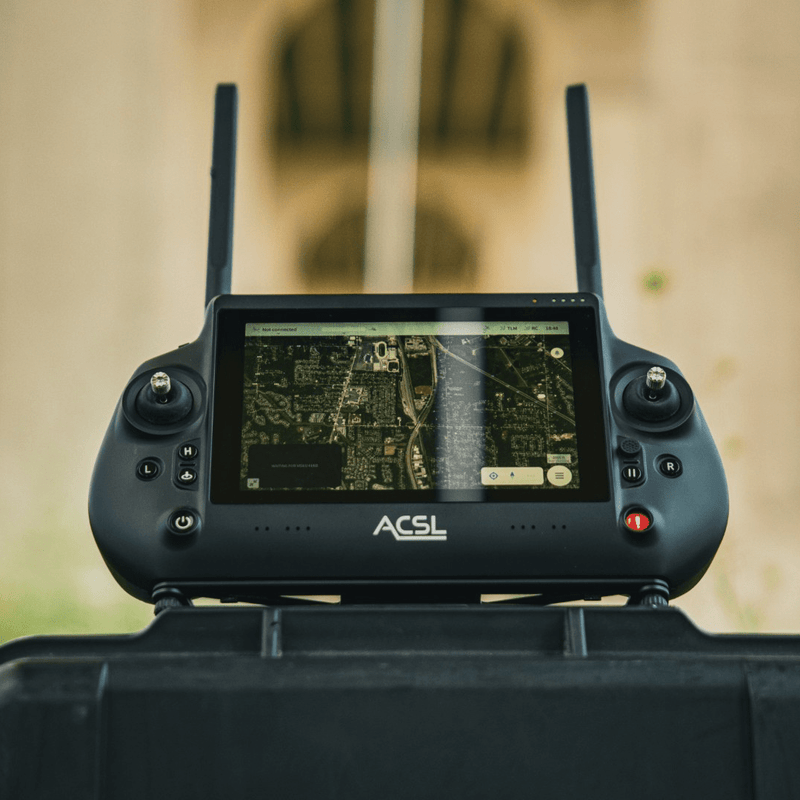

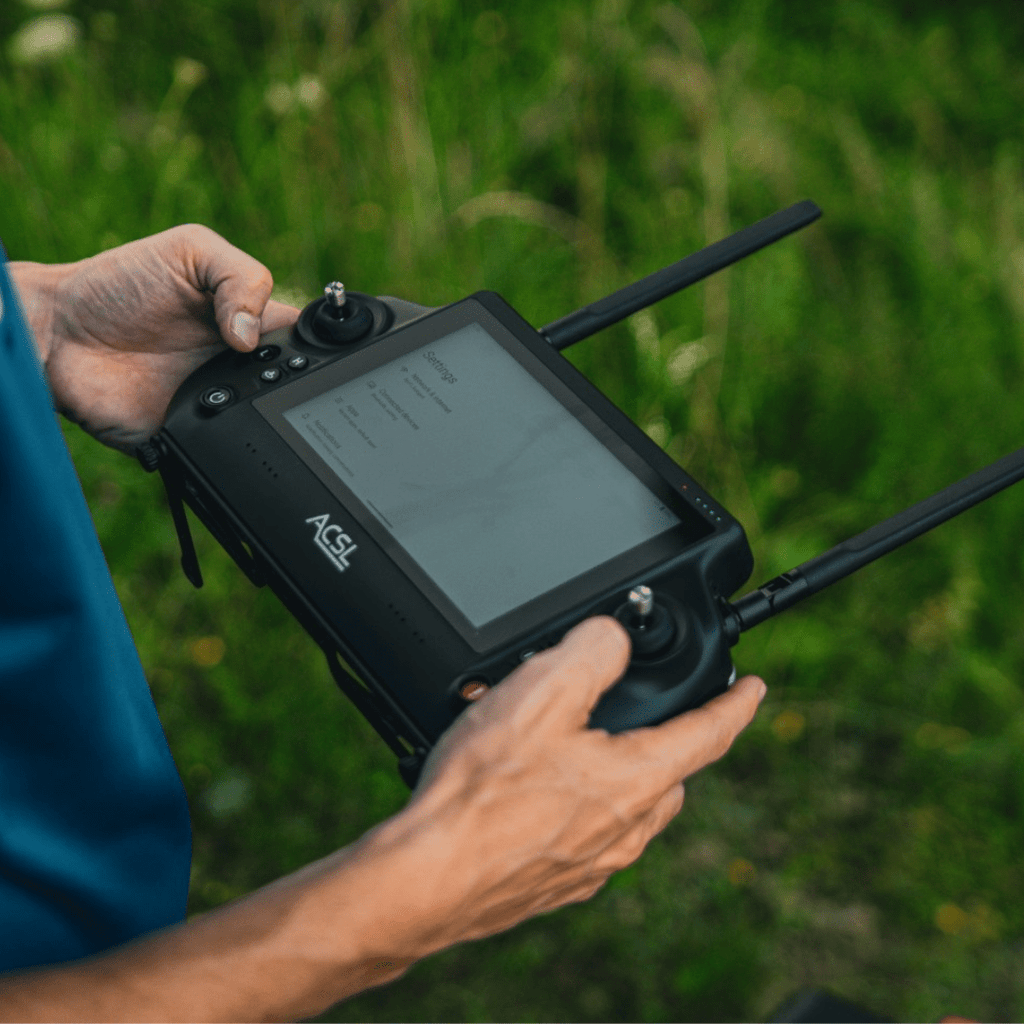

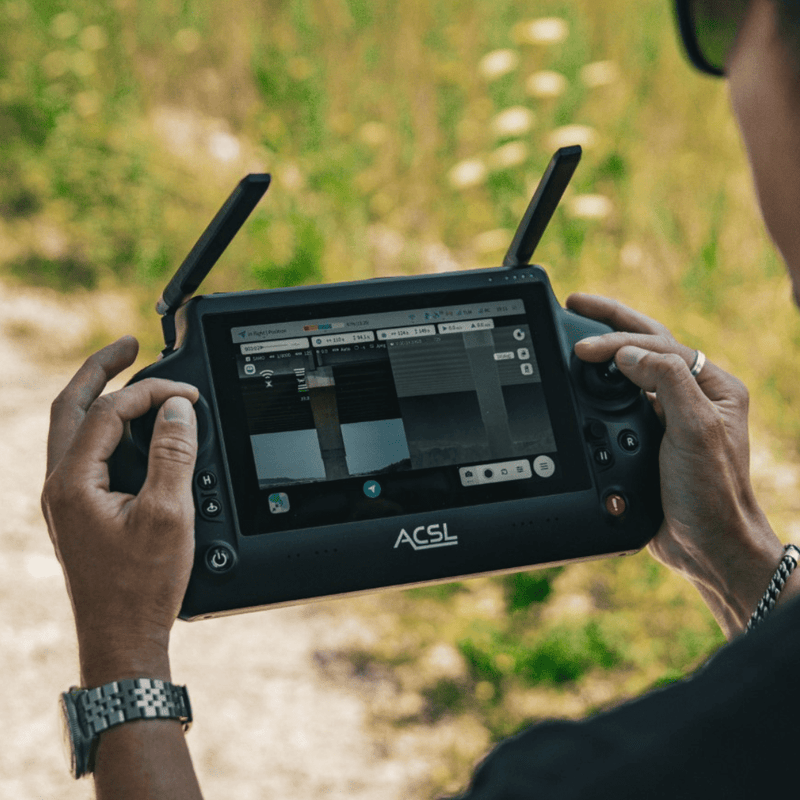

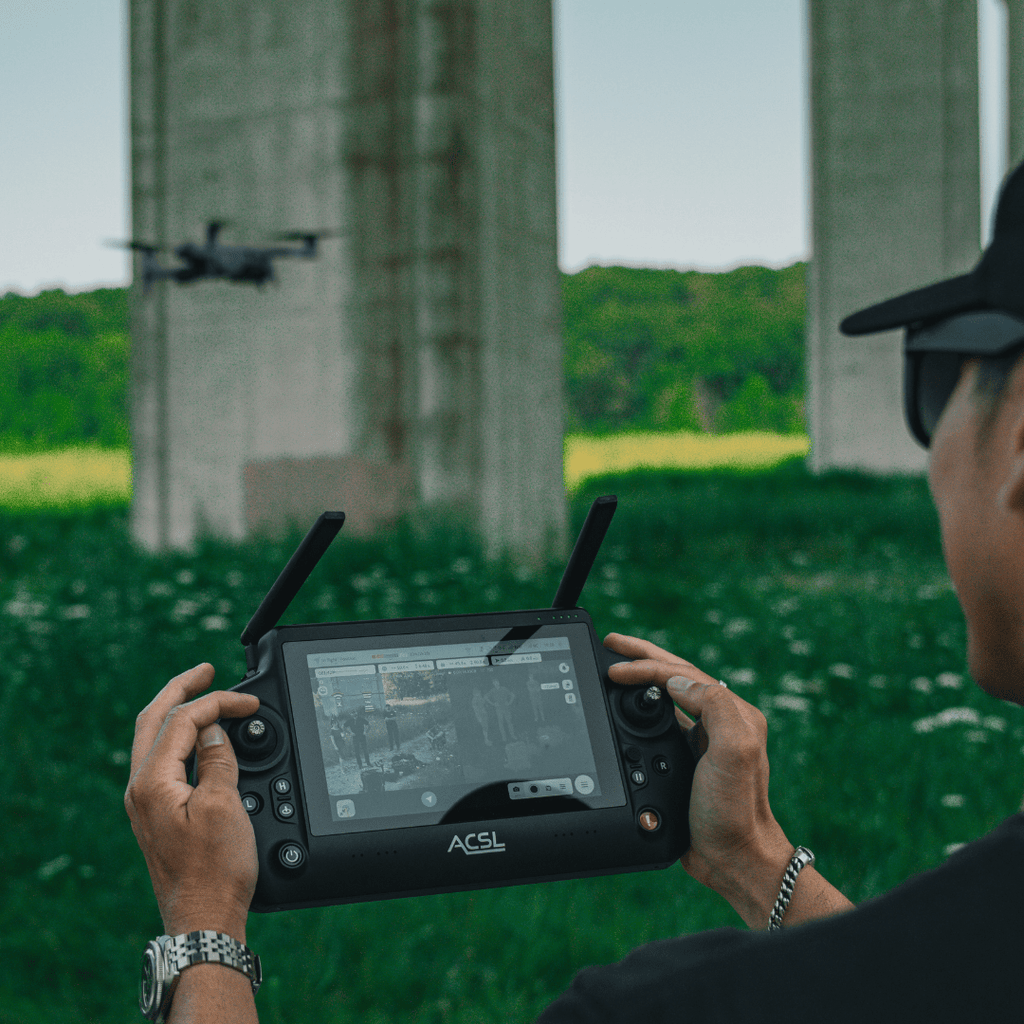

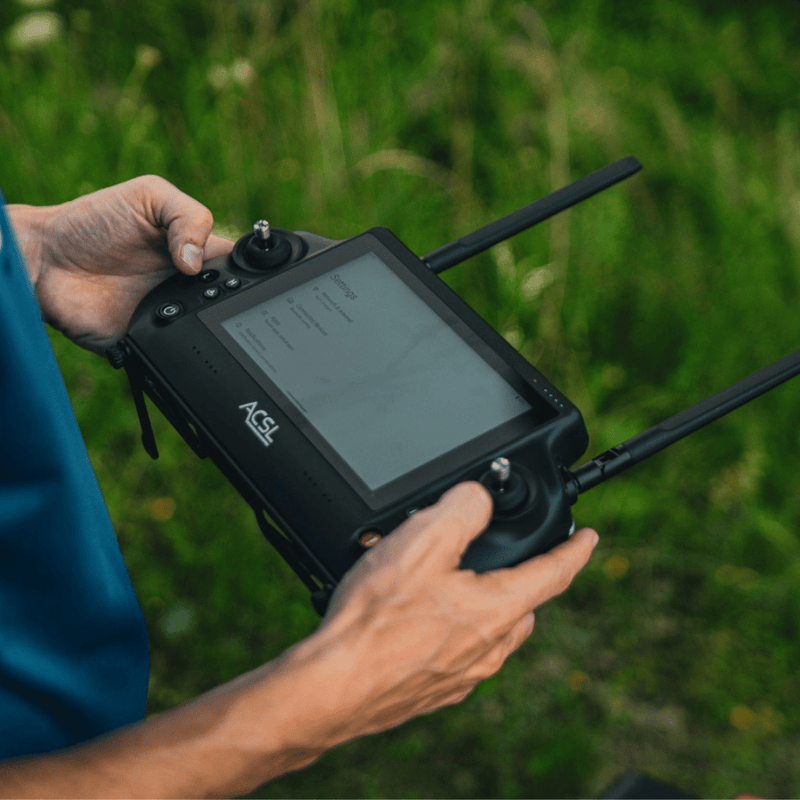

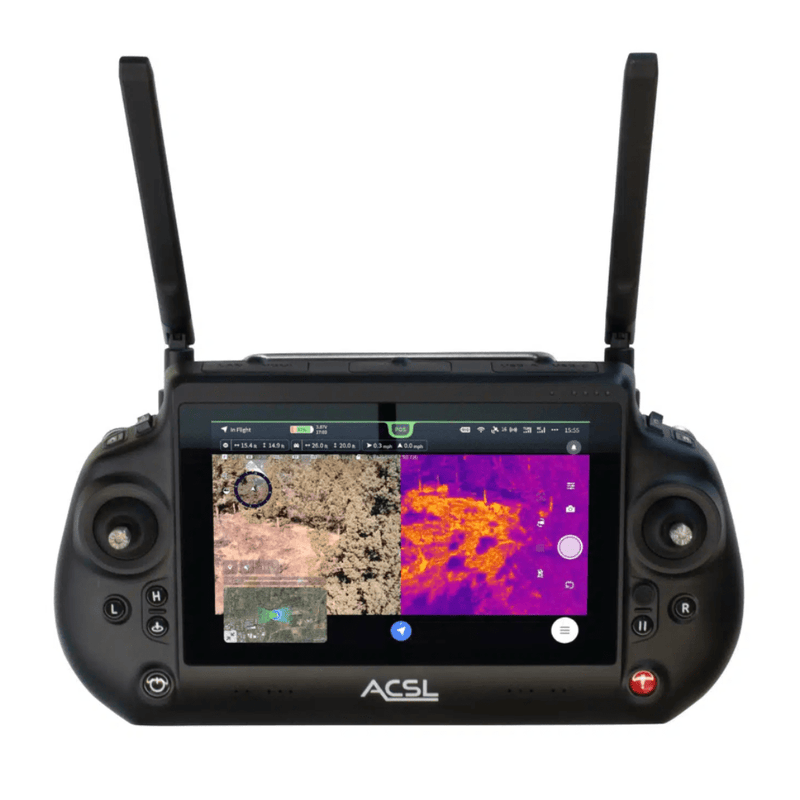

ACSL TAITEN Smart Controller | Rugged, Secure Command Center for ACSL SOTEN
The ACSL TAITEN Smart Controller is a next-generation, NDAA-compliant ground station engineered specifically for ACSL SOTEN operations. Featuring a daylight-readable 7″ display at 1500 nits, IP54 ruggedness, and dual-band encrypted connectivity, TAITEN ensures sharp visuals, secure links, and reliable performance in the field. Powered by Android 13 and the ACSL TAKEOFF app, it delivers low-latency feedback and fast processing for unmatched control in survey, inspection, and public safety missions.
Key Features:
- NDAA-compliant smart controller designed for ACSL SOTEN
- 7″ daylight display, 1500 nits brightness, 1200 × 1920 resolution
- IP54 ruggedness for challenging environments
- Dual-band encrypted radios (2.4/5.8 GHz, AES-256)
- Up to 8 hours runtime, USB-C extendable
- Customizable inputs: 3-state switch, 8 buttons, 2 wheels, 5-way hat
- Runs Android 13 with ACSL TAKEOFF integration
- HDMI out, USB-C, USB-A, Ethernet, microSD, 3.5 mm audio ports
- Built-in GNSS, light sensor, mic, vibration motor, and LED indicators
- Pair up to 3 controllers per aircraft for multi-operator workflows
Crisp Visibility and Agile Command
TAITEN’s built-in 7″ screen delivers 1200 × 1920 resolution and 1500 nits of brightness, maintaining clear readability even under direct sunlight. Powered by an enhanced computer platform, it minimizes latency across gimbal, flight, and payload operations for faster response during critical missions. Operators can further optimize control with configurable switches, wheels, and buttons designed for precision handling.
Designed for Secure, Mission-Ready Performance
Optimized for long deployments, TAITEN provides up to 8 hours of operation, with extended power available through USB-C. Its IP54-rated housing withstands dust and water splashes while remaining comfortable for handheld use. Encrypted dual-band 2.4/5.8 GHz connectivity secures links up to 6+ miles (where permitted). Multi-operator functionality enables up to three controllers per aircraft—ideal for training, payload operations, or seamless pilot transitions.
The ACSL TAITEN Smart Controller gives survey, inspection, and public safety professionals a rugged, NDAA-compliant command center with secure, responsive control. With its bright, field-ready display, extended runtime, and customizable inputs, TAITEN is purpose-built for mission-critical operations.
Applications
Aerial Surveying: Maintain clarity and precision in bright outdoor conditions.
Infrastructure Inspection: Dependable, secure control for gimbal and camera operations.
Public Safety: Rugged command station for rapid deployment.
Utilities: Manage payloads and data in demanding environments.
Training Workflows: Pair instructor and payload operators with one aircraft.
Disaster Response: Maintain secure control with resilient connectivity.
In the Box
1 - ACSL SOTEN TAITEN Smart Controller
Specifications
Display
- Size: 7 in
- Resolution: 1200 × 1920
- Brightness: 1500 nits
Radio & Links
- Operating Bands: 2.4 GHz + 5.8 GHz
- Range: 6+ miles (unobstructed, low-interference)
- Wireless: Wi-Fi
- Encryption: AES-256
- Radio: ACSL Fides-Link
- Pairing: Up to 3 controllers to 1 aircraft
Power & Runtime
- Operating Time: Up to 8 hours (extendable via USB-C power)
- Charging/Power: USB-C
Environmental
- IP Rating: IP54
- Operating Temperature: 68–140 °F (20–60 °C)
- Storage Temperature: 68–122 °F (20–50 °C)
- Charging Temperature: 32–113 °F (0–45 °C)
Controls & UX
- Primary Controls: 2-axis sticks; 2× camera gimbal wheels; 3-state mode switch (AUT/POS/MAN); Go-Home; Land; Emergency; Power
- Customizable Inputs: 3-state switch; 8 buttons; 2 wheels; 5-way hat
- Indicators: Connection LED; Battery LED; Vibration motor
- Sensors: GNSS module; Light sensor (auto-brightness); Microphone
Interfaces
- Ports: USB-C; USB-A 2.0; HDMI; microSD; Ethernet; 3.5 mm audio; Tripod mount
- Video Out: HDMI
System
- Operating System: Android 13
- App: ACSL TAKEOFF (integrated)
- Remote ID: Compliant
- NDAA: Yes
Physical
- Dimensions: 10.6 × 6.5 × 2.7 in
- Weight: ≈3.2 lbs
