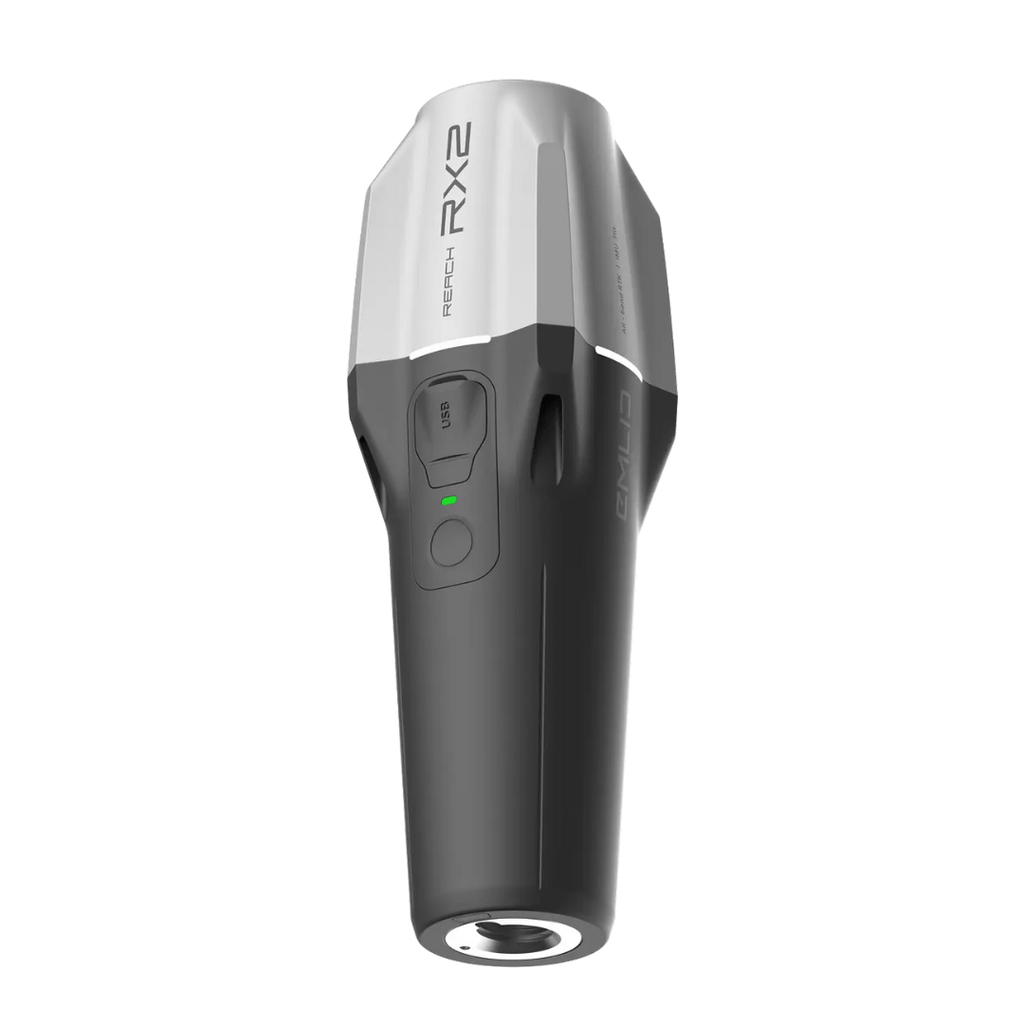

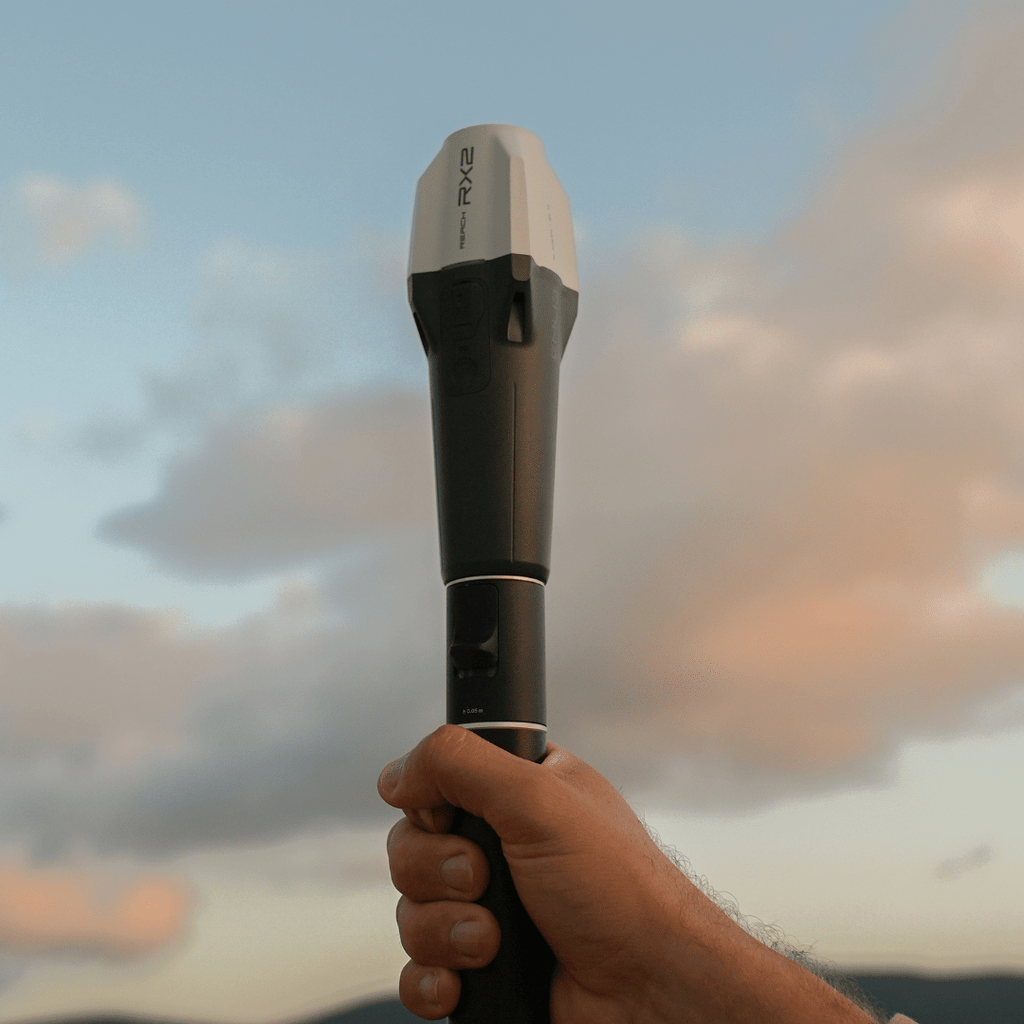

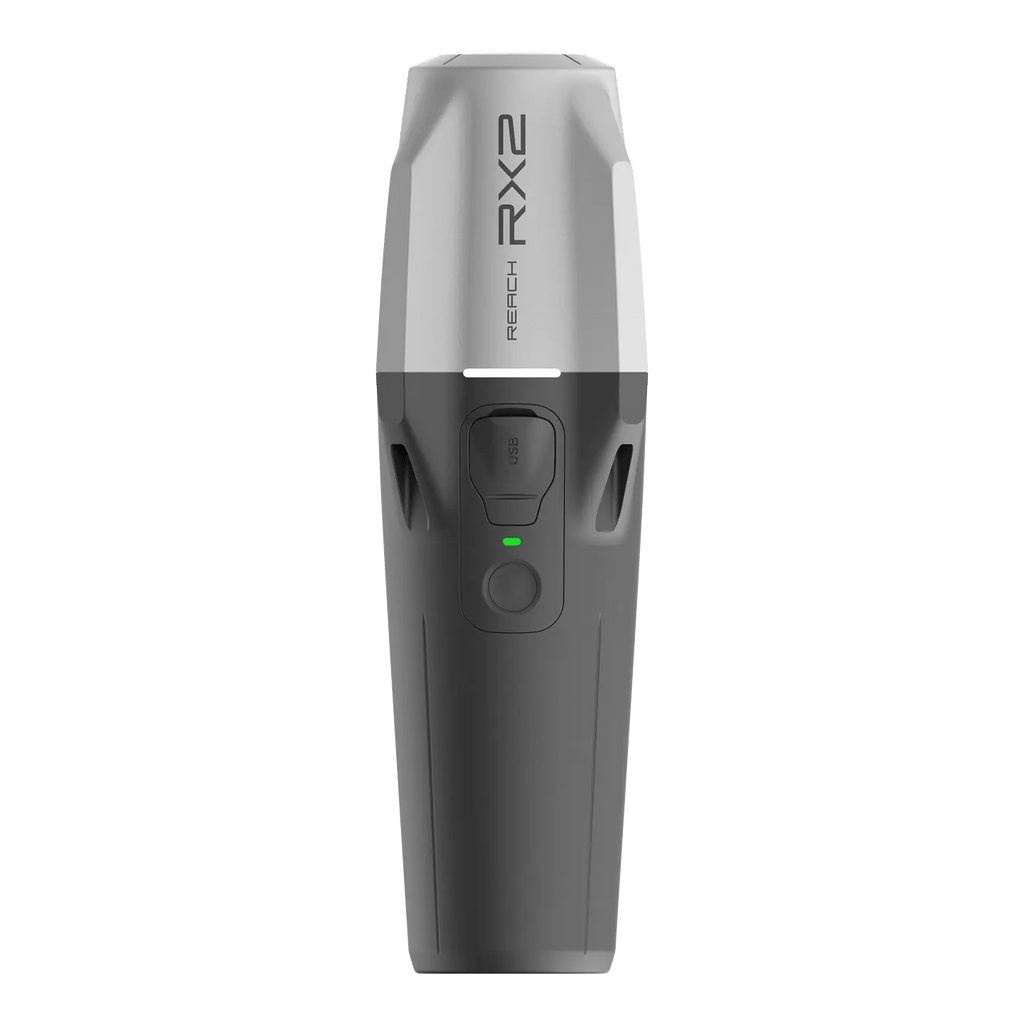

The Emlid Reach RX2 delivers centimeter-level precision in a pocket-sized design. Featuring IMU tilt compensation, the RX2 allows for fast and accurate mapping even in challenging terrain or obstructed environments.
All-Band Rover
Tracks all bands of GPS, GLONASS, Galileo, BeiDou, QZSS, and NavIC ensuring fast, stable performance even under canopy or in urban areas
Centimeter-Level Accuracy
Simply connect the RX2 to a CORS network to receive corrections and get a precise location in RTK.
Accurate on the Tilt
The RX2 maintains centimeter accuracy even at high tilt angles. Perfect for measuring near walls, slopes, or tight spaces without leveling the pole.
Compact and Lightweight
Weighing only 280g, the RX2 easily fits in a pocket or vehicle glove compartment, making it ideal for fieldwork on the go.
Extended Battery Life
Enjoy up to 18 hours of operation on a single charge, enough for two full working days. Recharge quickly and conveniently via USB-C.
Built for the Elements
Whether you’re working in rain, snow, or direct sunlight, the RX2 is engineered to perform reliably in all weather conditions.
Seamless App Integration
Fully compatible with ArcGIS Field Maps and other popular GIS applications, the Reach RX2 fits effortlessly into your existing workflow.
Scales with your Team
Easy to learn and use, with no training days or long manuals needed.

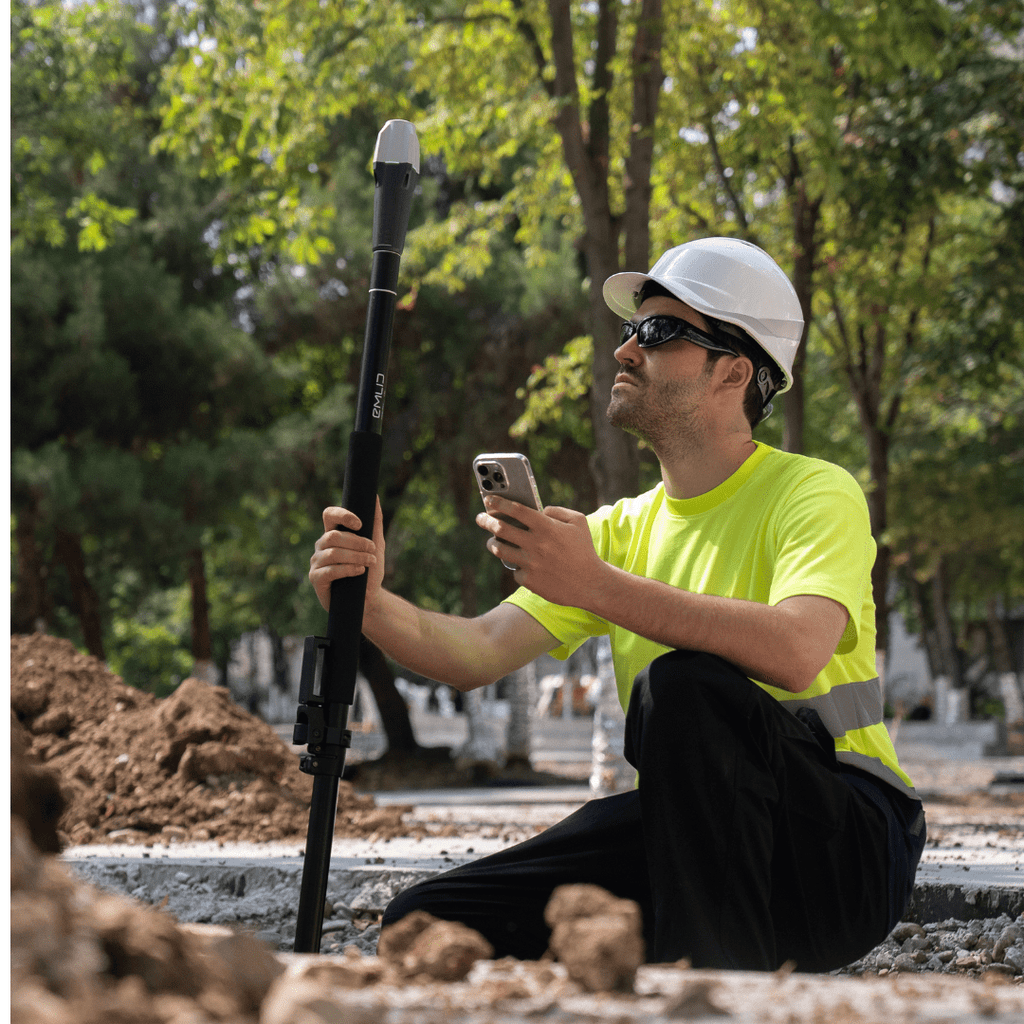

Mapping with Emlid Reach RX2 | Fast and Precise in any Landscape
Applications
GIS
Construction
Utilites
Landscaping
Terrestrial Scanning
In the Box
1 - Emlid Reach RX2
1 - USB-C Cable
Specifications
Mechanical
Dimensions: 172 x 51 x 51 mm, (6.77 x 2.00 x 2.00 in)

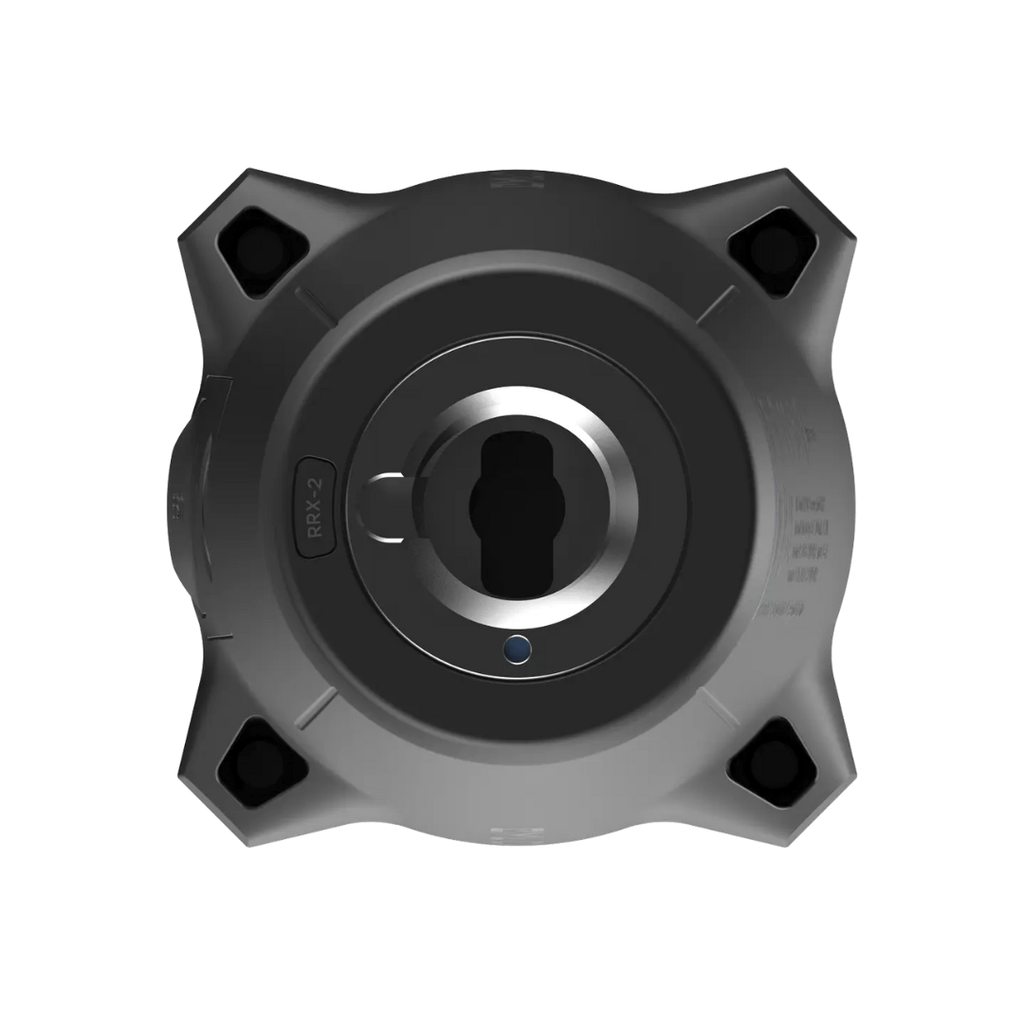

Mount: 5/8”-11 UNC and quick release
Weight: 280 g (0.62 lb)
Operating tº: -20 to +65 ºC (-4 a 149 °F)
Ingress protection: IP68 (maximum depth of 1.5 meters up to 30 minutes)
Electrical
Autonomy: Up to 16 hrs
Battery: Li-Ion 7000 mAh, 3.6V, 25.2 Wh
Charging: USB Type-C, 5V 2A
Certification: FCC, CE, IC, MFi
Positioning
RTK: H: 7 mm + 1 ppm, V: 14 mm + 1 ppm
Tilt: RTK + 2 mm + 0.3 mm/°
Convergence time: ~5 s typically
Connectivity
Communication interface: Bluetooth 4.2 (BR/EDR + LE)
Ports: USB Type-C
Data
Input data format: RTCM3
Input data protocol: NTRIP
Position data format: NMEA
GNSS
Signal tracked: GPS: L1C/A, L2C, L5,
GLONASS: L1OF, L2OF,
Galileo: E1-B/C, E5a, E6,
BeiDou: B1I, B1C, B2a, B3I,
QZSS: L1C/A, L1C/B11, L2C, L5,
NavIC: L1-SPS Data, L5-SPS
Number of channels: 672
Update rate: 5 Hz
