Parrot ANAFI USA Thermal Drone | Designed for the US Army, Made for Enterprise
The ANAFI USA Thermal Drone with Skycontroller 4 is a professional-grade drone, originally designed for the U.S. Army and now available for enterprise use. It delivers unmatched performance and advanced imaging capabilities, featuring a 32x zoom camera that can observe subjects with precision from up to 2 km (1.2 mi) away.
Seamless Optical Zoom
The continuous 1x to 32x zoom seamlessly switches between the wide-angle (1x–5x) and telephoto (5x–32x) lenses, providing smooth transitions and high-resolution imagery. The optical system, featuring six precision lenses, minimizes parasitic light while capturing crisp images across a wide temperature range (-43°C to 45°C).
High-Resolution 4K Camera & Lossless Zoom
Capture every detail with the 4K gimbal camera and take advantage of lossless zoom: 5x in 4K-UHD (3840x2160 px), 10x in Full HD (1920x1080 px), and 15x in HD (1280x720 px). Even at 27x zoom, images maintain DVD-quality clarity (720x480 px).
Advanced Thermal Imaging
The onboard thermal camera, using a 60 Hz FLIR Boson micro-bolometer, can detect centimetric hot spots from up to 40 m and offers flexible coloring modes (relative and spot) for mission-specific thermal analysis.
Compact, Lightweight, and Long-Lasting
Weighing just 500 g, this compact and foldable drone is easy to transport and delivers up to 32 minutes of flight time for extended coverage. Its polyamide body reinforced with carbon fiber, combined with aerodynamic design, protects motors from dust, sand, and rain, ensuring durability in demanding conditions.
Secure and Reliable
Data security is a top priority. The ANAFI USA Thermal Drone features digitally signed software and encrypted network links (WPA2), keeping your mission-critical information safe.
Features:
- Dual optical 4K camera system
- 3-axis hybrid stabilization
- Wide-angle to telephoto zoom
- Reads a license plate at 130m
- FLIR Boson 320 thermal sensor
- Relative and spot (cold/hot) thermography modes
- 2 color and 2 black & white palettes
- Quick thermal analysis mode
- Compact, foldable, and lightweight
- Cutting-edge aerodynamics
- IP53 certified
- Hand-launchable and hand-recoverable
- No flight zone limitations
- Blue sUAS program approved
- Made in the USA / NDAA & TAA compliant
- SD-Card AES-XTS encryption with 512-bit key
- Zero data shared by default
Parrot ANAFI USA Thermal Drone | Built for Professional-Grade Aerial Operations

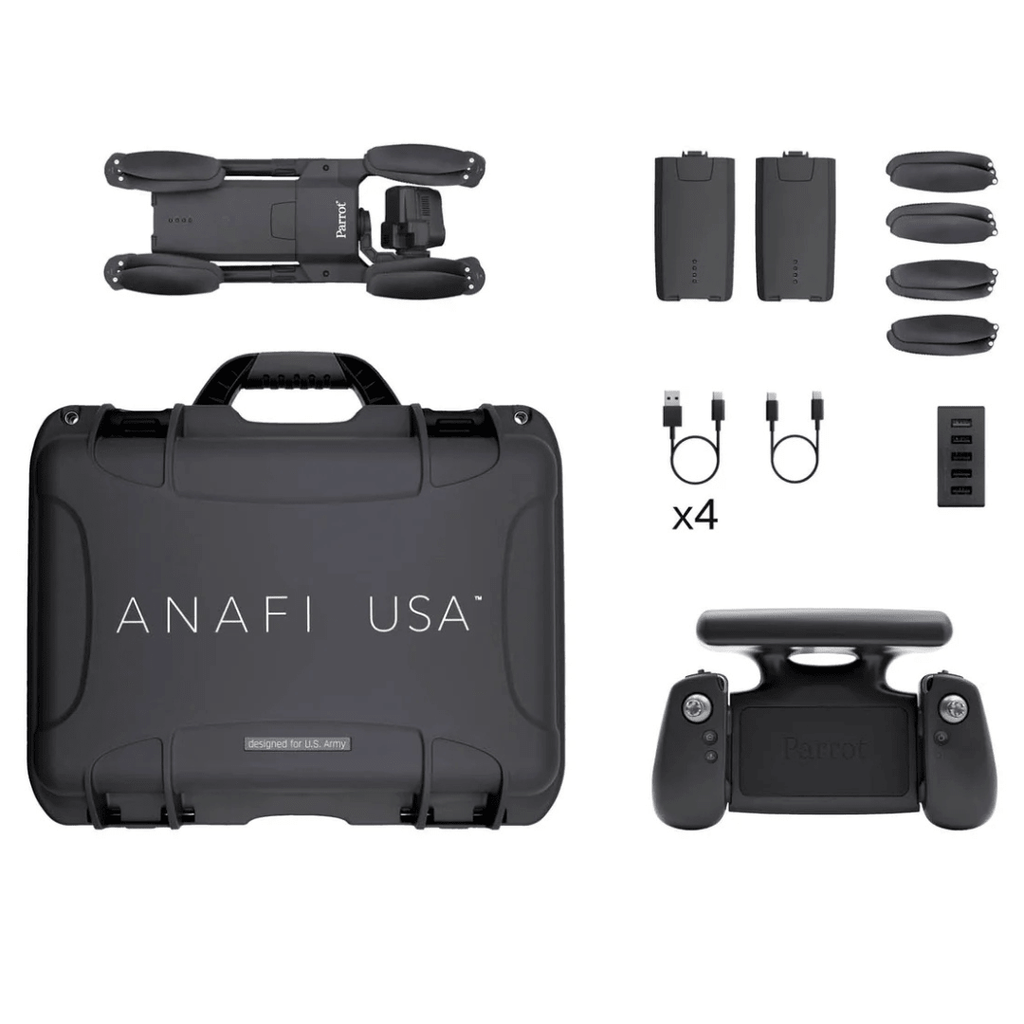

In the Box
1 - ANAFI USA Drone
3 - (1+2) Smart Batteries
1 - Skycontroller 4
1 - Tablet Holder
1 - Multi-Port Fast USB Charger
1 - Additional Set of Propeller Blades
4 - USB-A/USB-C Cables
1 - Hard Case
Specifications
ANAFI USA Aircraft:
- Weight: 485g / 1lb
- Maximum transmission range: 2.5miles (4km) with the Parrot Skycontroller 4
- Maximum flight time: 32 minutes
- Maximum horizontal speed: 14,7 m/s (52.92km/h or 32.88mph)
- Maximum vertical speed: 6 m/s (21.60km/h or 13.42mph)
- Maximum wind resistance: 14,7 m/s (52.92km/h or 32.88mph)
- Service ceiling: 6m above MSL (Mean Sea Level)
- Optional altitude fencing & geofencing
- Operating temperature: - 32F ( - 35°C) to 110F (43°C)
- No take - off temperature limitation
- Manage your data privately between drone and device OR share anonymous data on secured European servers
Dimensions:
- Size folded: 252 x 104 x 82mm (9 . 92 x 4 . 09 x 3.23”)
- Size unfolded: 282 x 373 x 84mm (11 . 10 x 14 . 69 x 3.30”)
Sensors:
- Satellite navigation: GPS, GLONASS & GALILEO
- Barometer and magnetometer
- Vertical camera and ultra - sonar
- 2 x 6 - axis IMU
- 2 x 3 - axis accelerometers
- 2 x 3 - axis gyroscopes
EO Image Chain:
- 2 Sensors: 1/2 . 4
- Digital Zoom: x32
- Electronic shutter speed: 1s to 1/10000s
- ISO Range: 100 - 3200
- Video resolution: 4k/FHD/HD
- Video Format: MP4 (H264)
- Photo Resolution: Wide: 21MP (84° FOV);
- Rectilinear: up to 16MP (up to 75 . 5°â€¯FOV)
- Photo Formats: JPEG, DNG (Digital NeGative RAW)
IR Image Chain
Sensor: FLIR BOSON
- 320x256 resolution
- - 40°C to +150°C temperature range
- Thermal Sensitivity: <60mK
- Photo Format: JPEG
- Video Format: MP4 (H264)
- Video Recording Resolution: 1280x720, 9fps
Image Stabilization
- 3 - camera IR/EO stabilized gimbal:
- Hybrid: 3 - axis
- Mechanical: 2 - axis roll / pitch
- Electronics (EIS): 3 - axis yaw / roll / pitch
- Controllable gimbal tilt range: - 140° to +110°
Fast-Charging Smart Battery
- Type: High density LiPo (3 x 4.4V cells)
- Capacity: 3400mAh
- Battery life: 32 minutes
- Charing port: USB - C
- Charges in 2h with an USB - PD (Power Delivery) charger – not included in the pack
- Charges in 3h20 with the fast - charging port of the provided charger
- Weight: 195g
- Voltage: 11,55V
- Max charging power: 30W

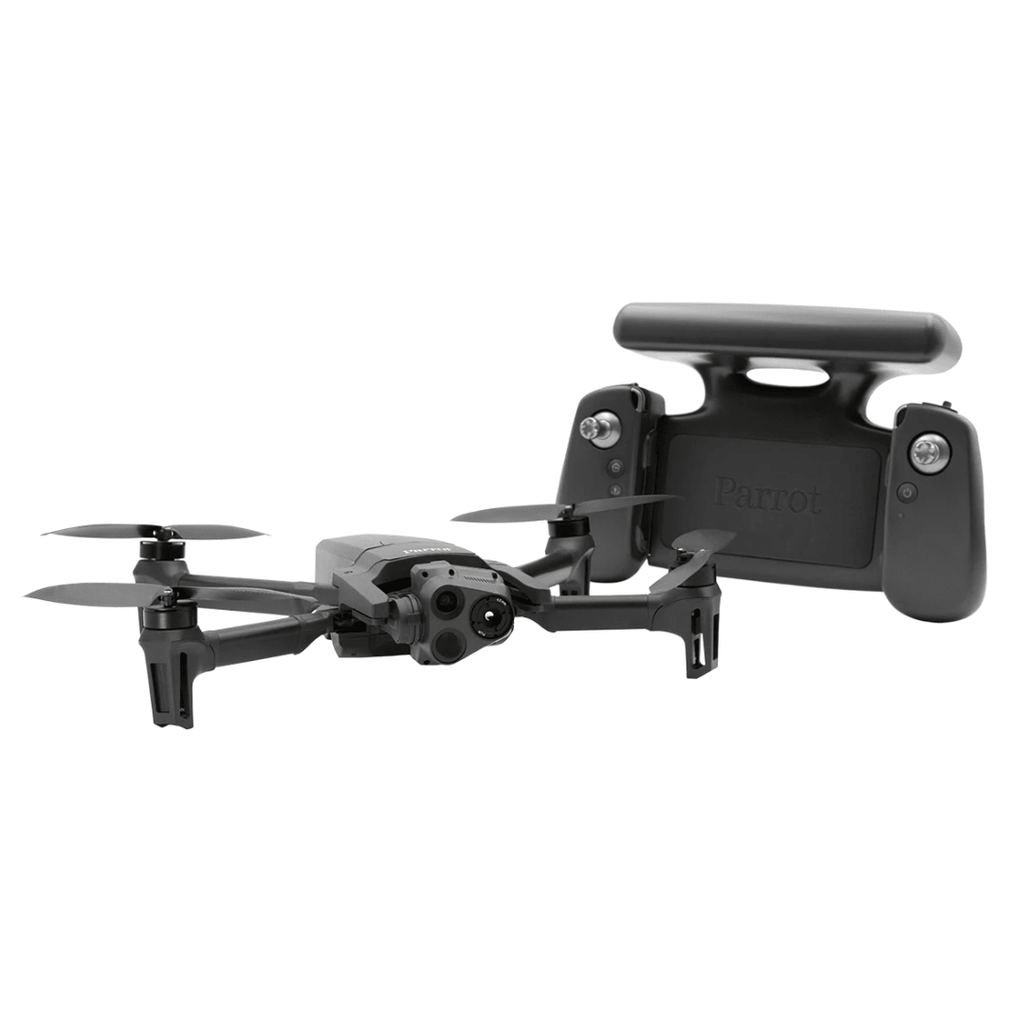

Parrot Skycontroller 4
- Folded size: 94x152x72mm
- Unfolded size: 153x152x116mm
- Weight: 283g
- Transmission system: Wi - Fi 802 . 11a/b/g/n
- Operating frequency: 2 . 4 - 5 . 8 GHz
- Max . transmission distance: 4km
- Resolution of live video feed: HD 720p
- Battery capacity: 2500 mAh 3 . 6V
- Battery life: 2h30 (Android) / 5h30 (iOS)
- Compatible mobile devices: Screen size up to 6 . 5”
- USB ports: USB - C (Charge), USB - A (Connection)
