The TE400 Tethered Power Supply and Lighting System for the DJI Matrice 400 provides reliable power, extended flight time, and all-day performance.
Designed for seamless integration with the DJI Matrice 400 Series, the TE400 power supply system transforms single-phase AC into high-voltage DC, delivering consistent energy to the M400 via high-performance nickel alloy cables. When paired with backup batteries, the TE400 enables up to 12 hours of uninterrupted flight time, boosting operational efficiency and flight endurance.

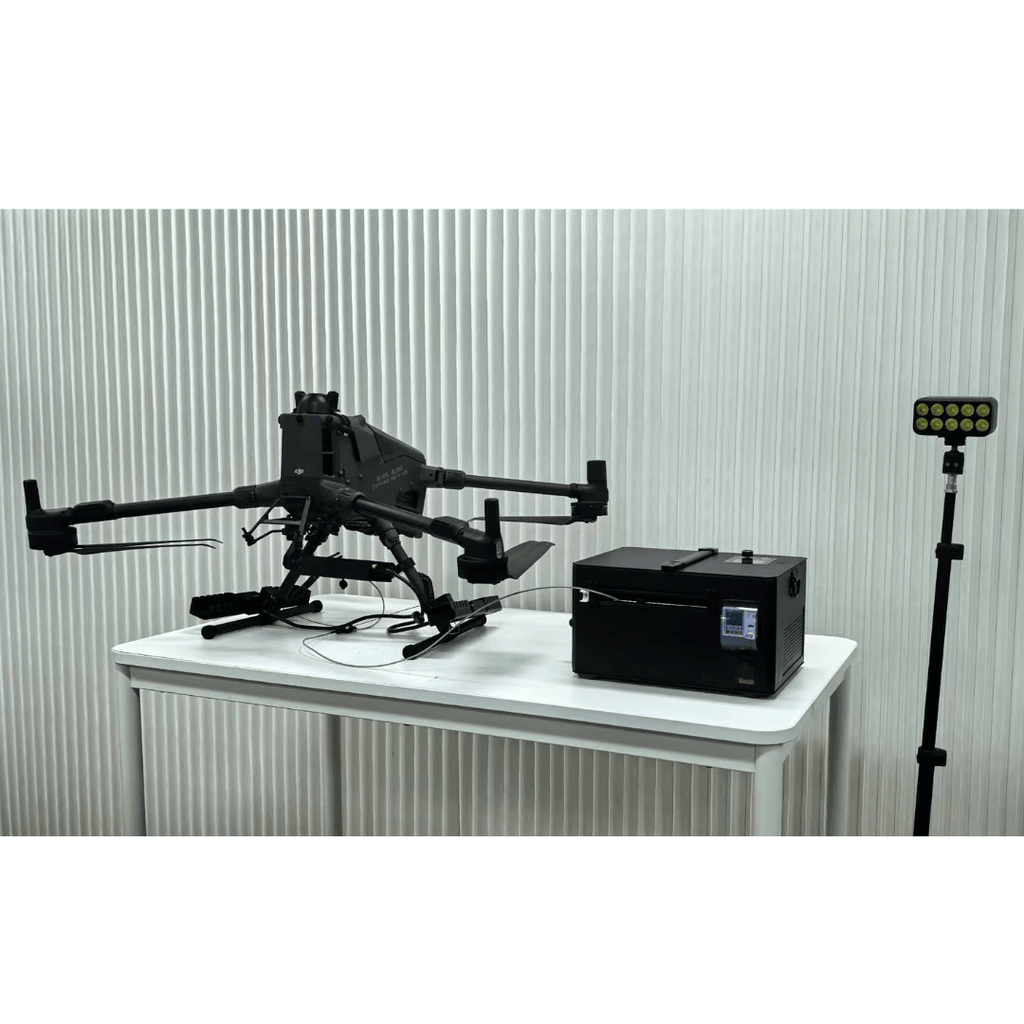

The TE400 is more than just a power source, it’s a fully integrated sky-to-ground solution, featuring:

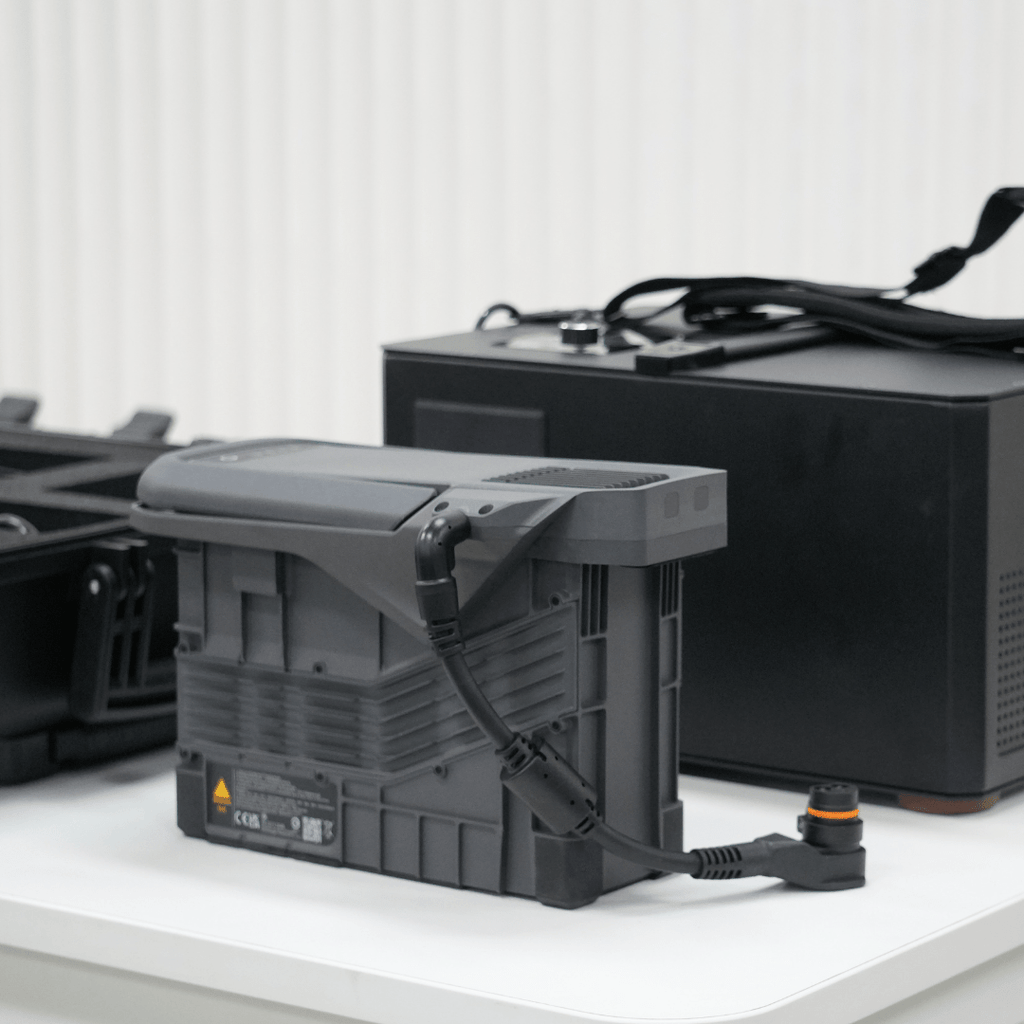

- Airborne power supply unit

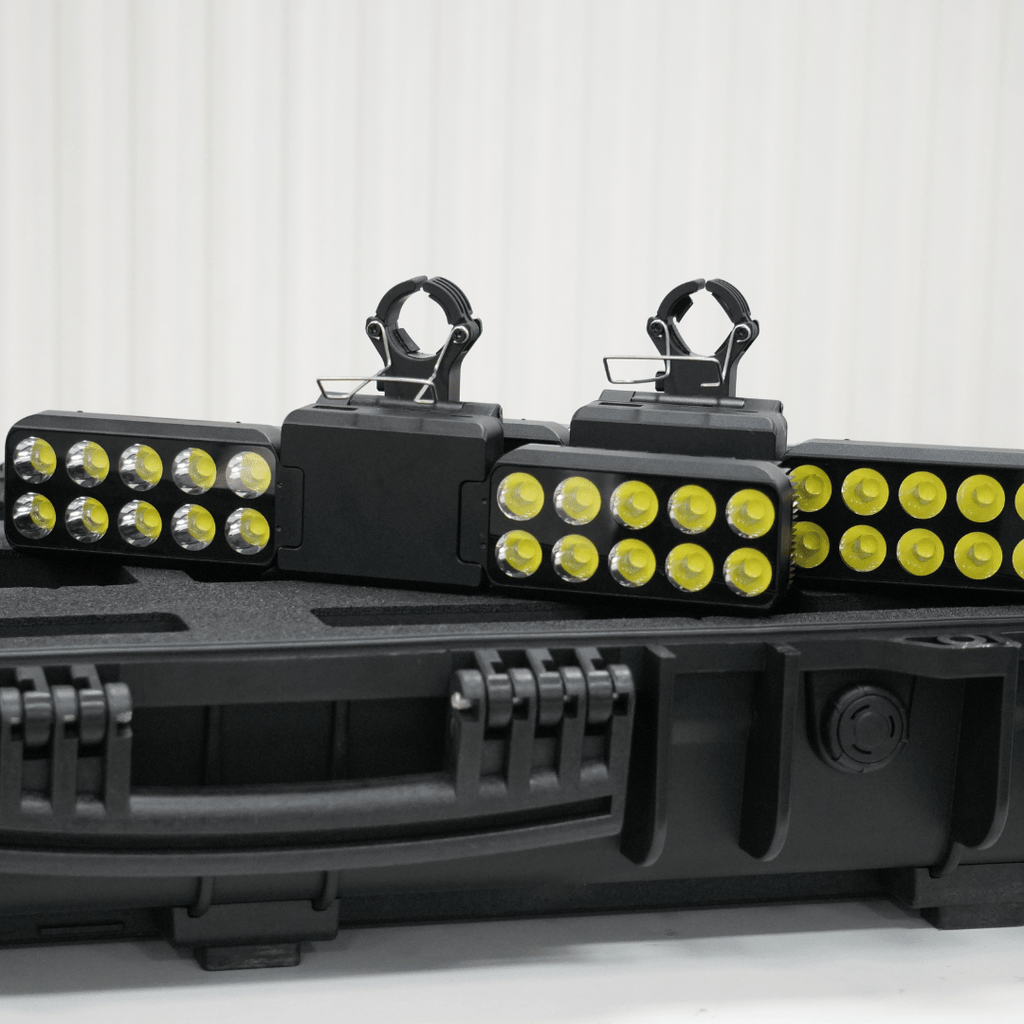

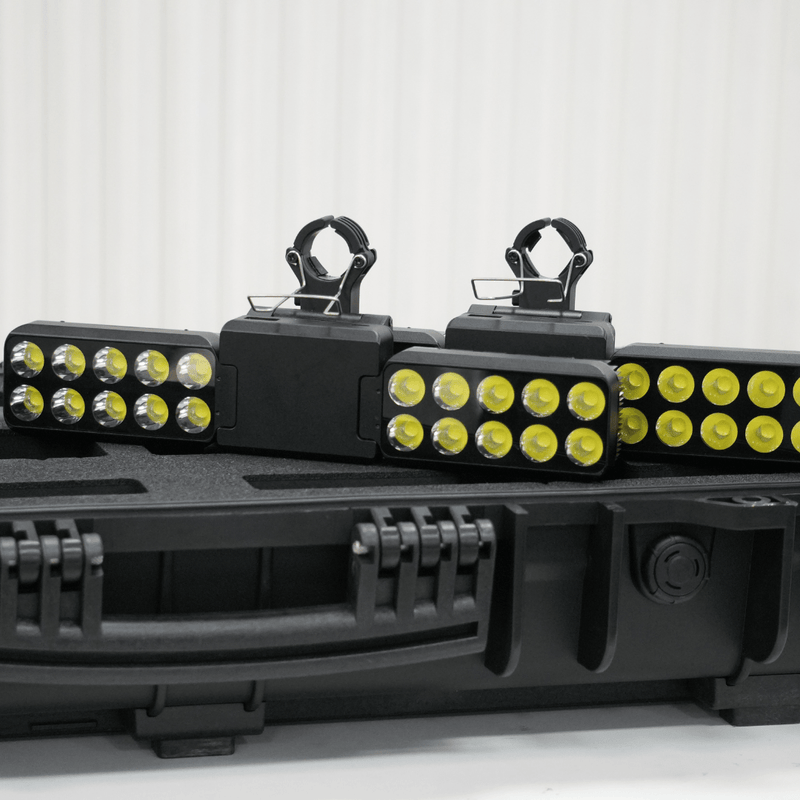

- Compact high-intensity lighting system
- Manual & automatic cable management system with up to 110 meters of retractable cable
Built for Portability and Fast Deployment
The TE400 offers both backpack and handheld carry options. The integrated automatic cable retraction mechanism minimizes wear, protects against bending, and ensures smooth operation in demanding environments.
For Specialized Use Cases
The TE400 also supports relay flight operations, enabling the M400 to function as a mid-air relay node at distances up to 150 meters.
Power Up Your Mission—Day or Night—With The TE400
Compatibility
DJI Matrice 400
In the Box
1 - TE400 Tethered Power Supply System
Specification
| Technical Parameters |
|

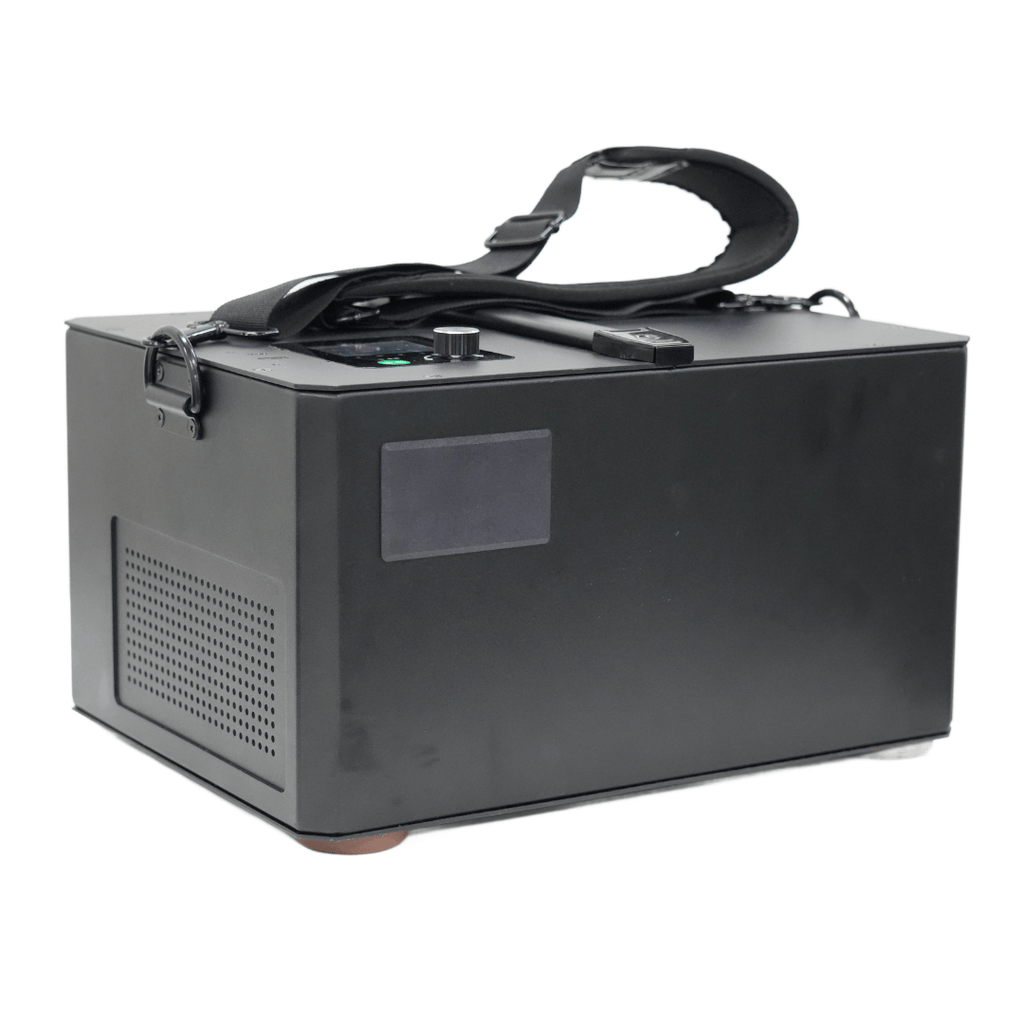

| Ground box size |
≤355mm x 262mm x 230mm |
| Ground box weight |
≤8.5kg |
| Airborne weight |
<600g |
| Cable length |
Cable length ≥110m(lighting)
Cable length ≥160m((as a repeater) |
| Ground power-off protection function |
During the flight of the unmanned aerial vehicle (UAV),when the ground power supply is abnormally interrupted, the UAV can fly and land normally. |
| Whole machine control mode |
The entire power supply system is fully embedded in the DJI system and can be directly controlled through the DJI Pilot2 APP on the DJI remote control, or the dedicated APP.
|
| Lighting Platform - Airborne |
|
| Airborne lighting size |
≤300×120×40mm(unilateral) |
| Power supply voltage for airborne lighting |
DC 24-60V |
| Installation method of airborne lighting |
Quick installation on the bottom, lighting
installation without modification to the
aircraft, achieving overall disassembly
and assembly within 3 seconds. |
| Airborne lighting type |
White light 6500K, red and blue flash light |
| The total power of the airborne lighting |
Low-voltage light: ≥1200W /120000LM (white light) (Customizable high-power lights) |
| Lighting Platform - Ground |
|
| Power |
≥400w |
| Ground light weight |
≤300g |
| Control type |
APP control. The switch, brightness and battle mode can be controlled. |
| Installation method |
Quick installation, compatible with tripods, equipped with an extendable tripod, with both near and far illumination and a flashing white light. |
