TE4 Power Supply System for DJI Matrice 4 - Built for Extended Missions

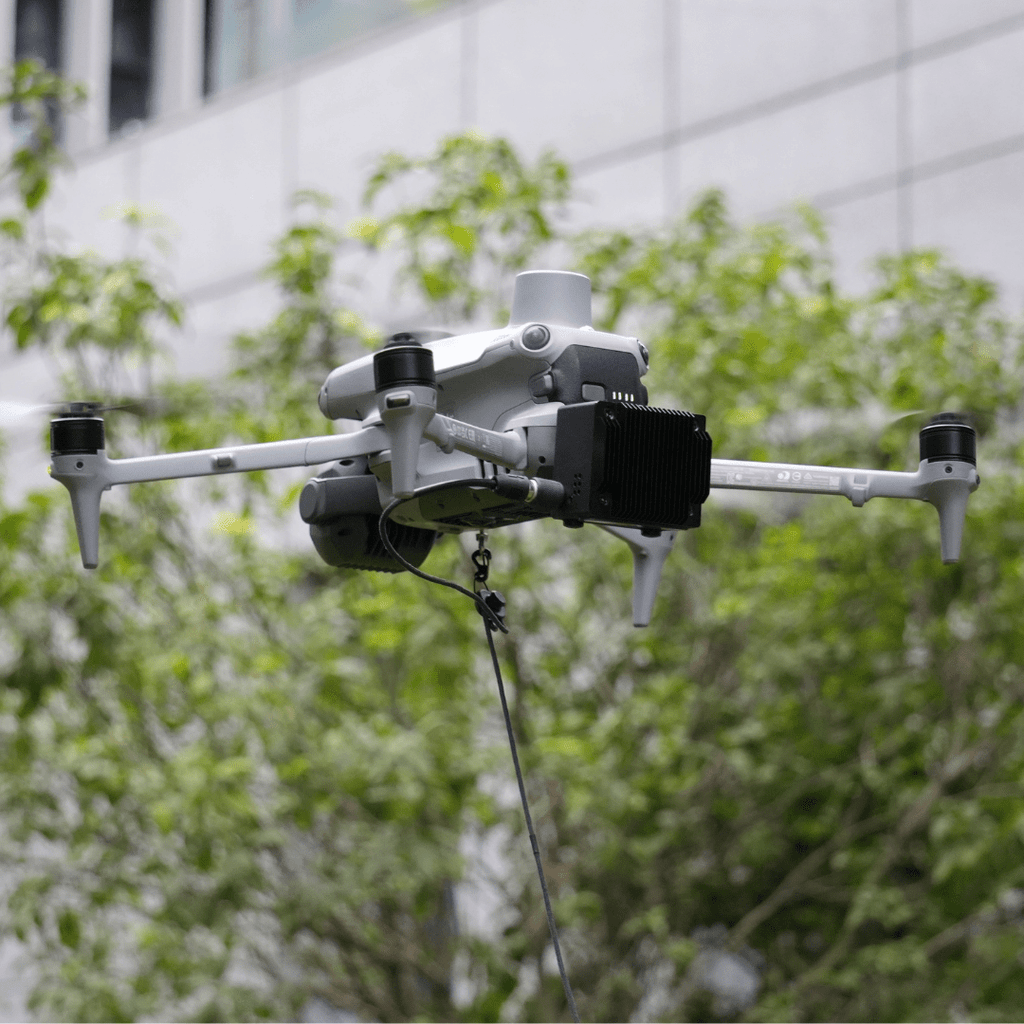

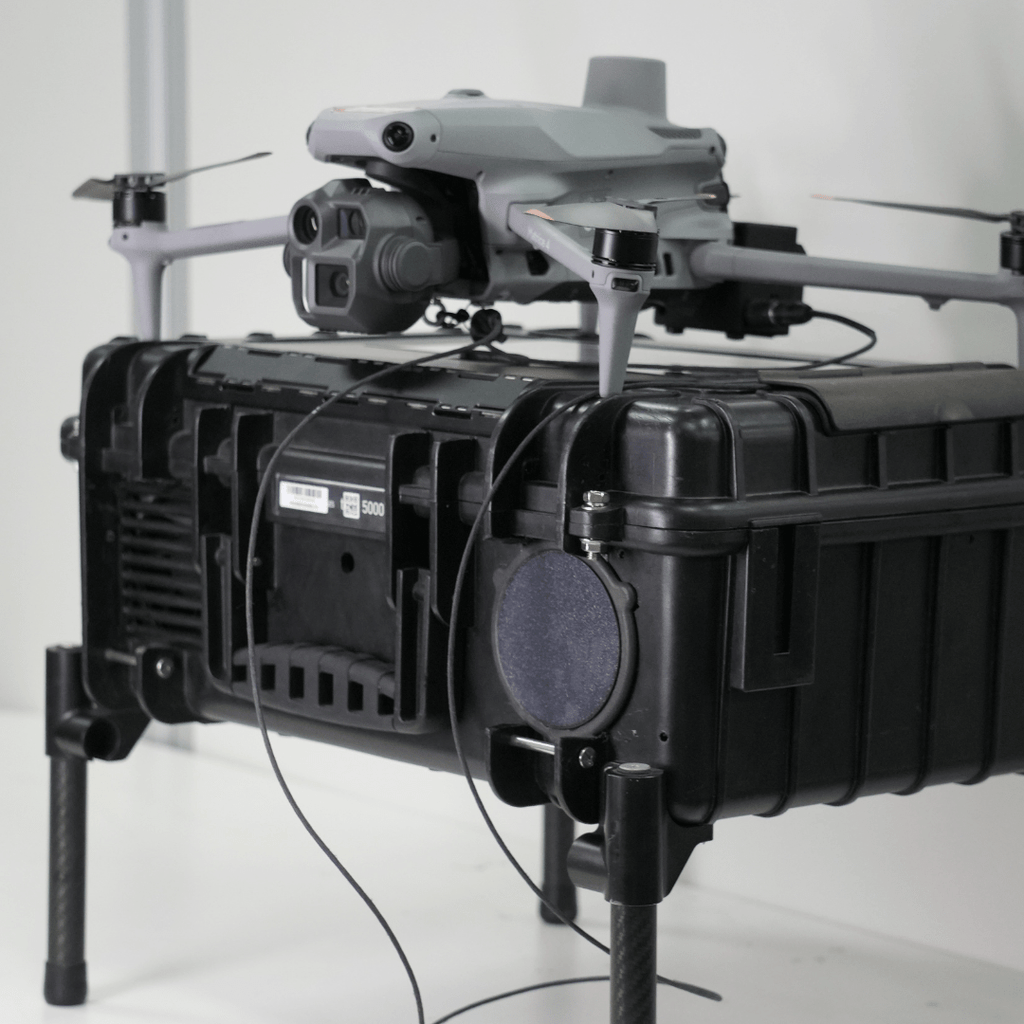

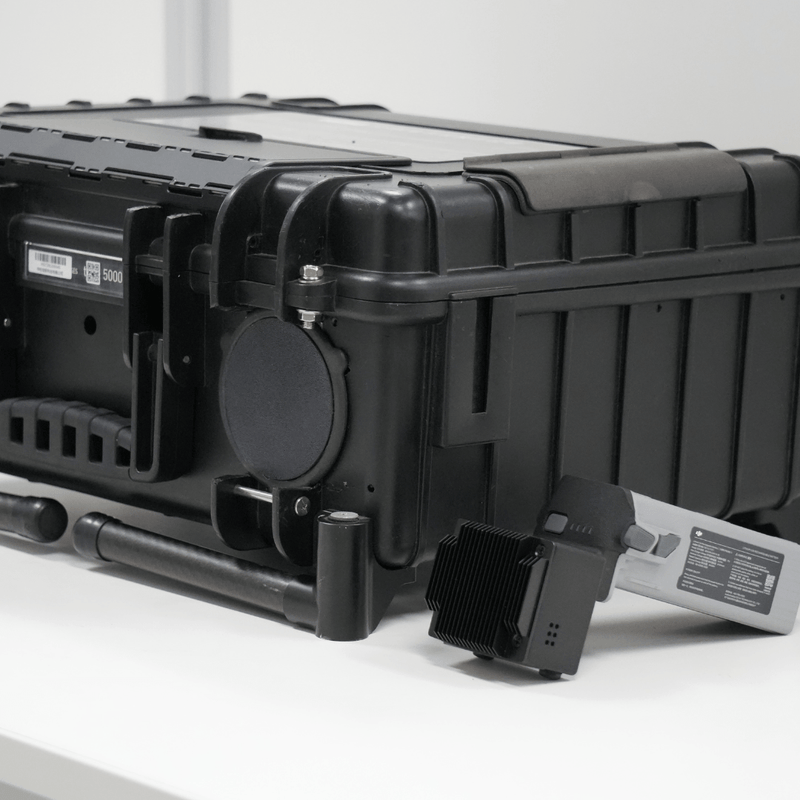

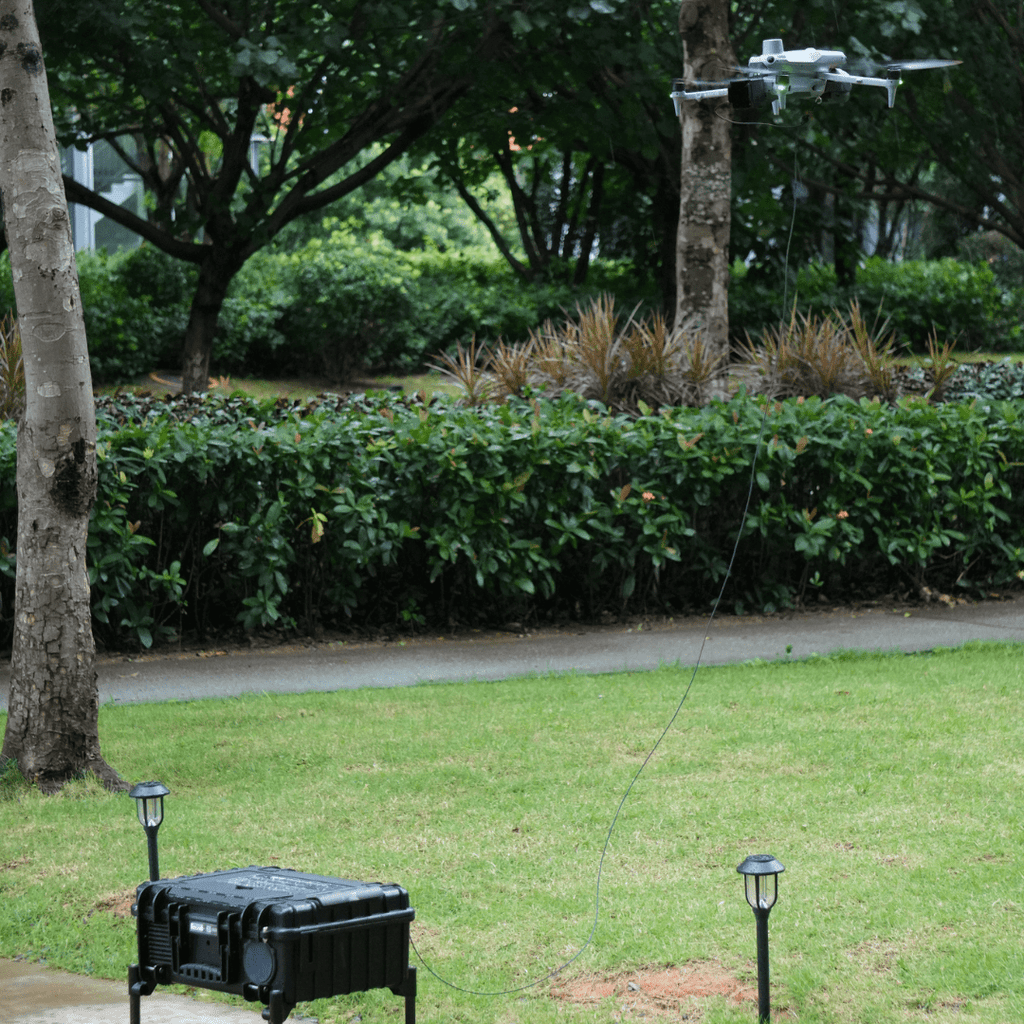

The TE4 Tethered Power Supply System is a rugged, backpack-style tethered power system engineered specifically for use with the DJI Matrice 4. Lightweight and mission-ready, it features a foldable tethered box that helps protects the unit from harsh terrain during setup and operation.
Designed for single-operator mobility and weighing under 9 kg, the TE4 is built with eco-friendly materials and features an ergonomically contoured back panel, delivering all-day comfort and durability for long-distance carry. The airborne unit can be assembled or disassembled in seconds without tools, while app-based control software puts system management right at your fingertips.
A 55-meter high-performance tether includes automatic retraction and release, reducing cable stress, preventing tangles, and minimizing bending, protecting your connection in even the most demanding conditions.
An integrated energy storage system provides continuous power to the Matrice 4, enabling extended flight operations even without access to mains power.
TE4 Power Supply System - The portable power solution that keeps your DJI Matrice 4 mission-ready, anytime, anywhere.
Compatibility
DJI Matrice 4 Series
In the Box
1 - CYTOP CYTE4 Tethered Power Supply System
Specifications
| Airborne module weight |
≤ 120g |
| Airborne power |
≥ 400w (dedicated to UAV) |
| Dimensions of the ground power supply box |
≤ 350mm x 270mm x 190mm |
| Weight of the tethered box |
≤ 15.5kg (include built-in battery) |
| Weight of the tethered box |
≤ 9kg (exclude built-in battery) |
| Cable length |
≥ 55m |
|

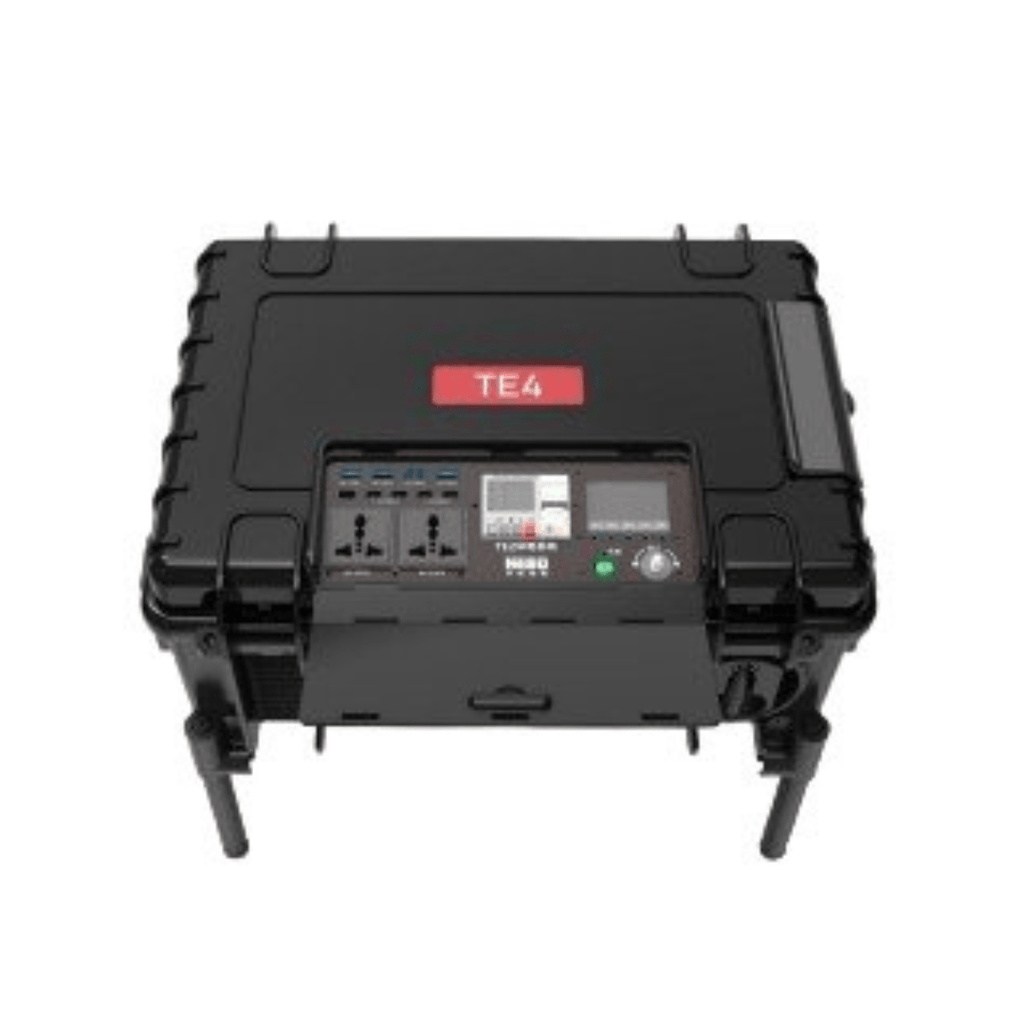

Electrical specifications of ground power supply box
|
Provide 1500W drone power supply, 1 USB QC 18W charging interface, and 1 4-port PD 100W TYPEC power supply capability to charge peripherals. The overall power switch has an independent switch and can be equipped with an optional sound and light alarm module |
| Protection and transportation characteristics |
The tethered box provides a waterproof base that can avoid contact with harsh environments when deployed on the ground.
The box can be carried by hand, and the
carrying system is ergonomically designed to fit the back of the body, making it comfortable and durable, suitable for long-distance carrying.
|
| Specialized APP software |
Provide APP control software , can be
installed on Android remote control or
mobile phone. The startup screen can be
customized, and control of the tethered
power supply system is provided. The APP
can obtain voltage, current, cable length,
and power parameters. |
