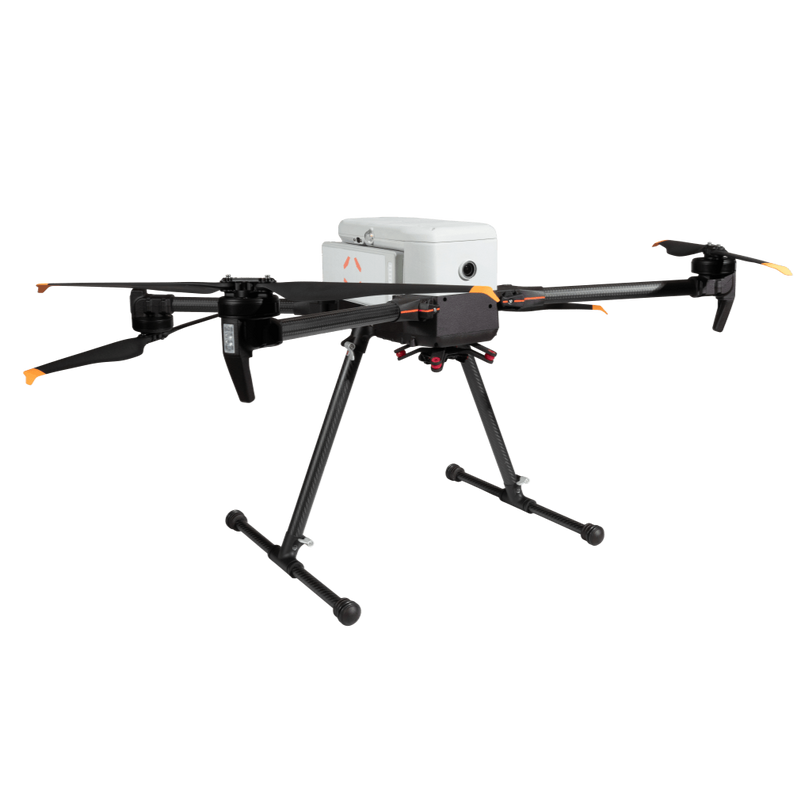

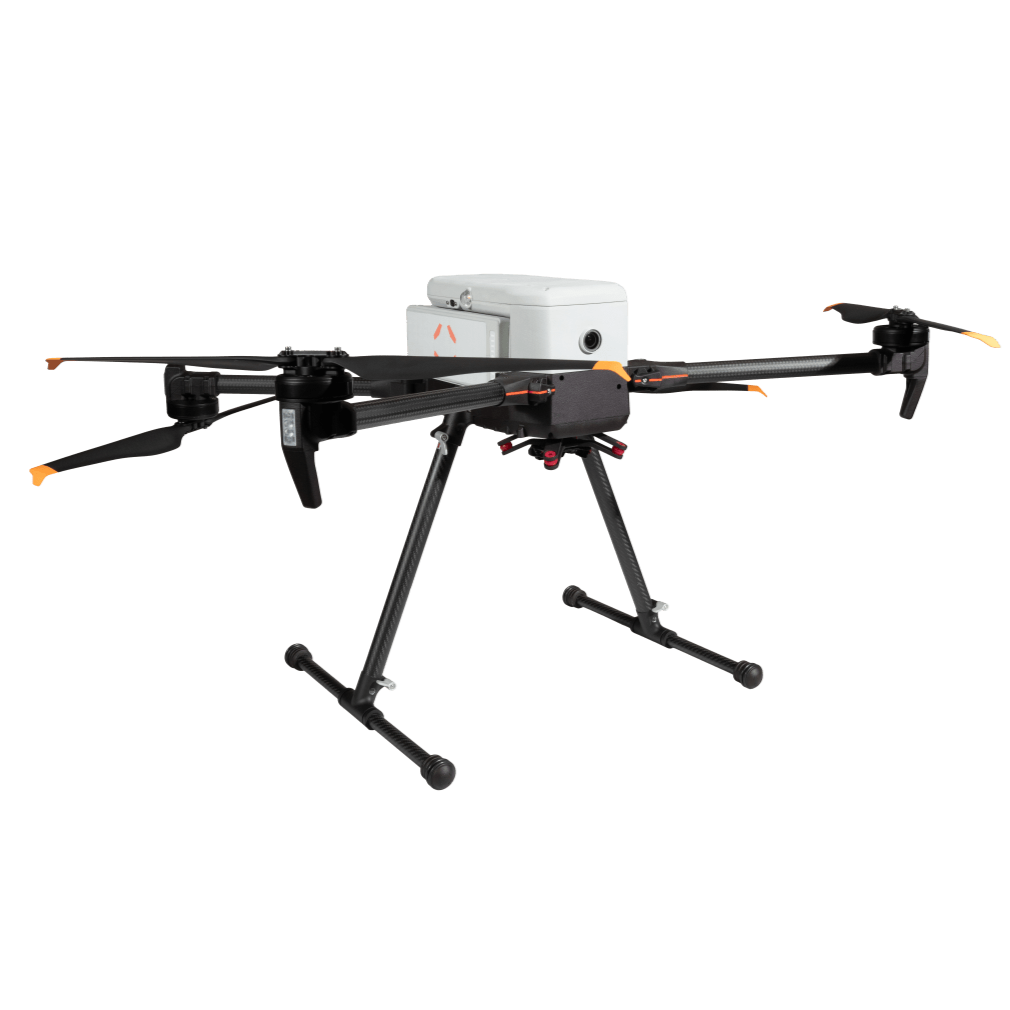

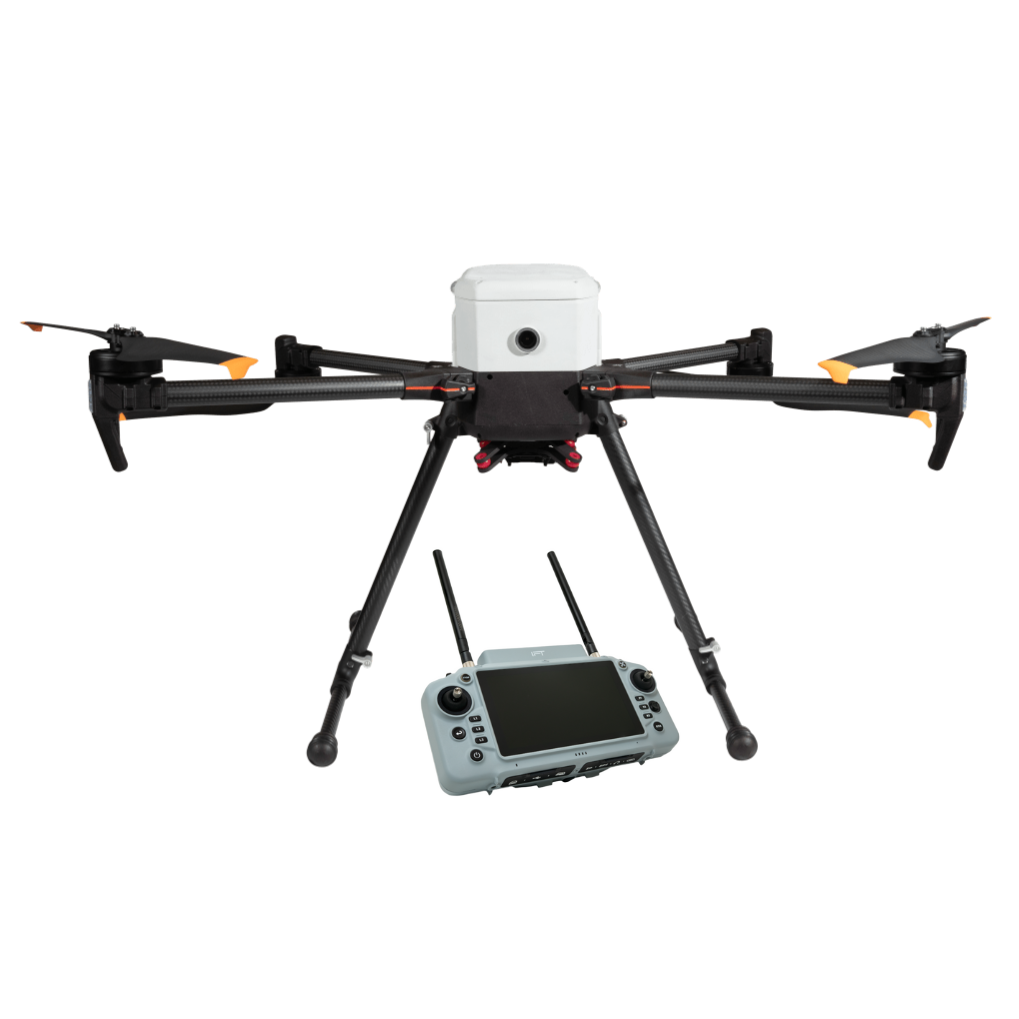

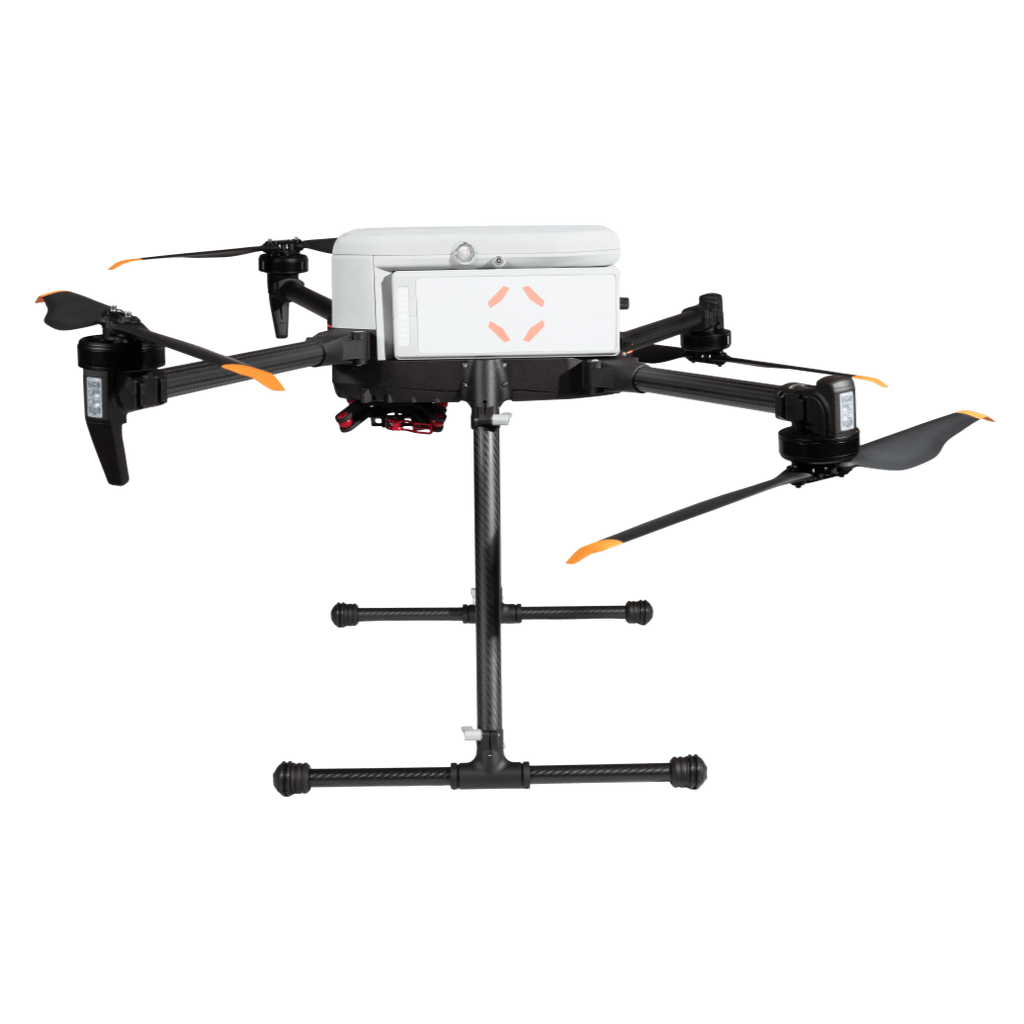

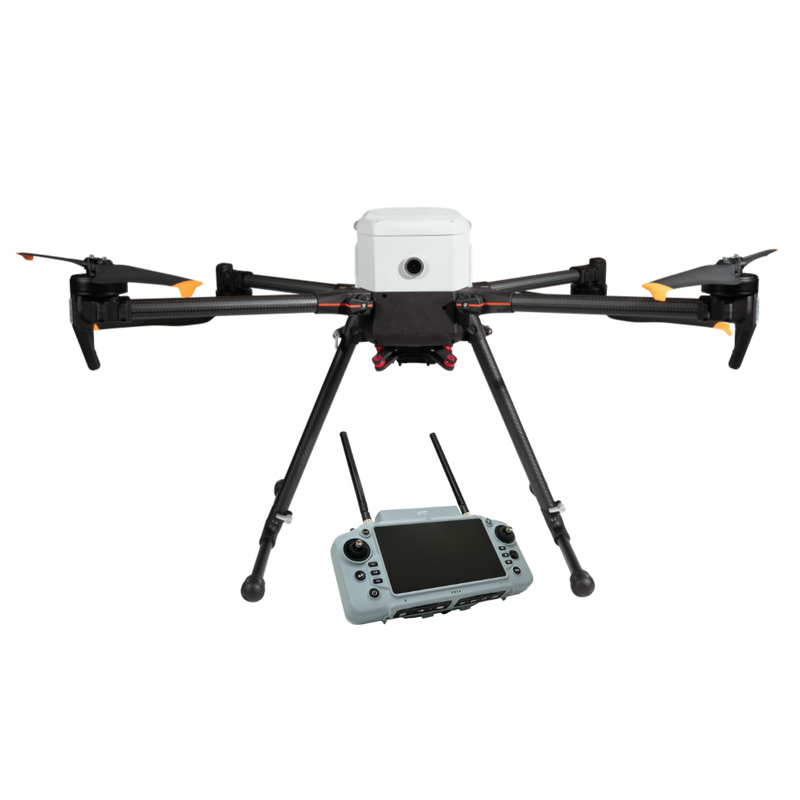

Inspired Flight IF800 Tomcat Medium-Lift Drone | Portable, Dependable, Deployable
Designed for industry professionals, enterprise users, and first responders, the IF800 Tomcat sets a new standard in drone technology. Precision-engineered to perform in harsh environments, this reliable platform redefines what’s possible in aerial operations. Its state-of-the-art technology and steadfast commitment to national security make it the go-to drone for commercial and government agencies. Certified Blue UAS by the DIU, the IF800 Tomcat ensures the highest level of data protection and operational efficiency, earning its reputation as the most trusted solution in the industry.
Features:
- 54-Minute Max Flight Time
- Hot Swappable Intelligent Batteries
- Blue UAS & NDAA Compliant
- 49 MPH Max Speed
- 6.6 LBS Max Payload
- IP43 Rated
Extraordinary Flight Time

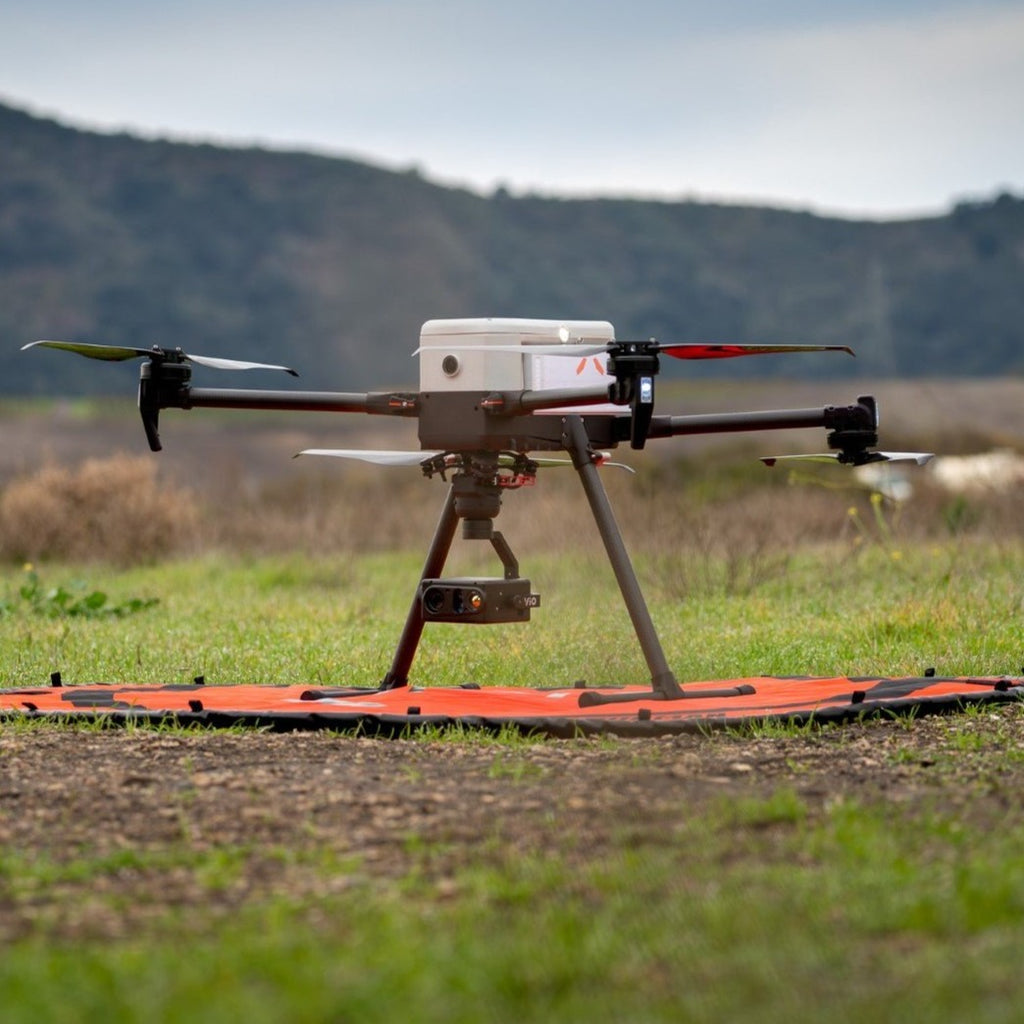

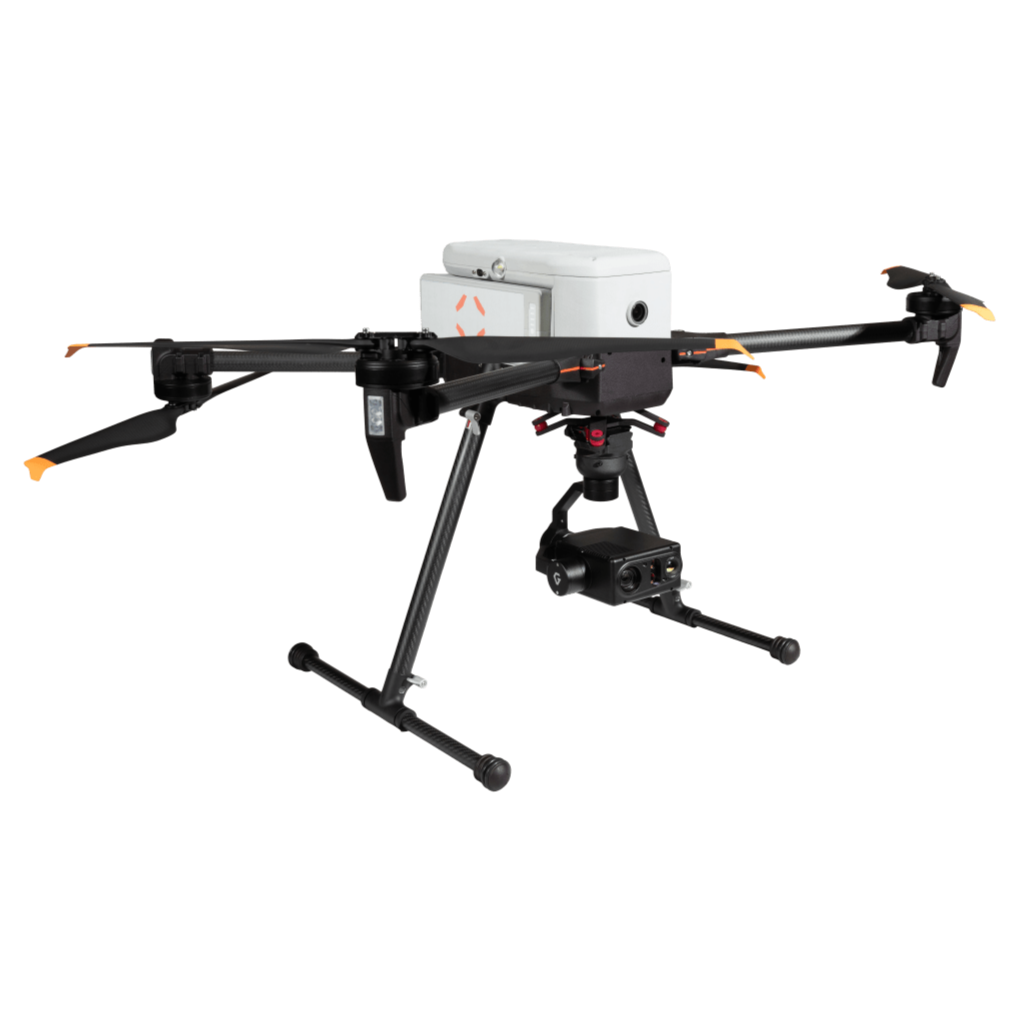

The IF800 offers a maximum flight time of 54 minutes with a dual battery system for hot-swapping, ensuring minimal downtime. With payloads like the Gremsy VIO and Sentera 65R, operators can achieve over 40 minutes of real world flight time, with sufficient battery reserve for a safe return.
Payload Integrations

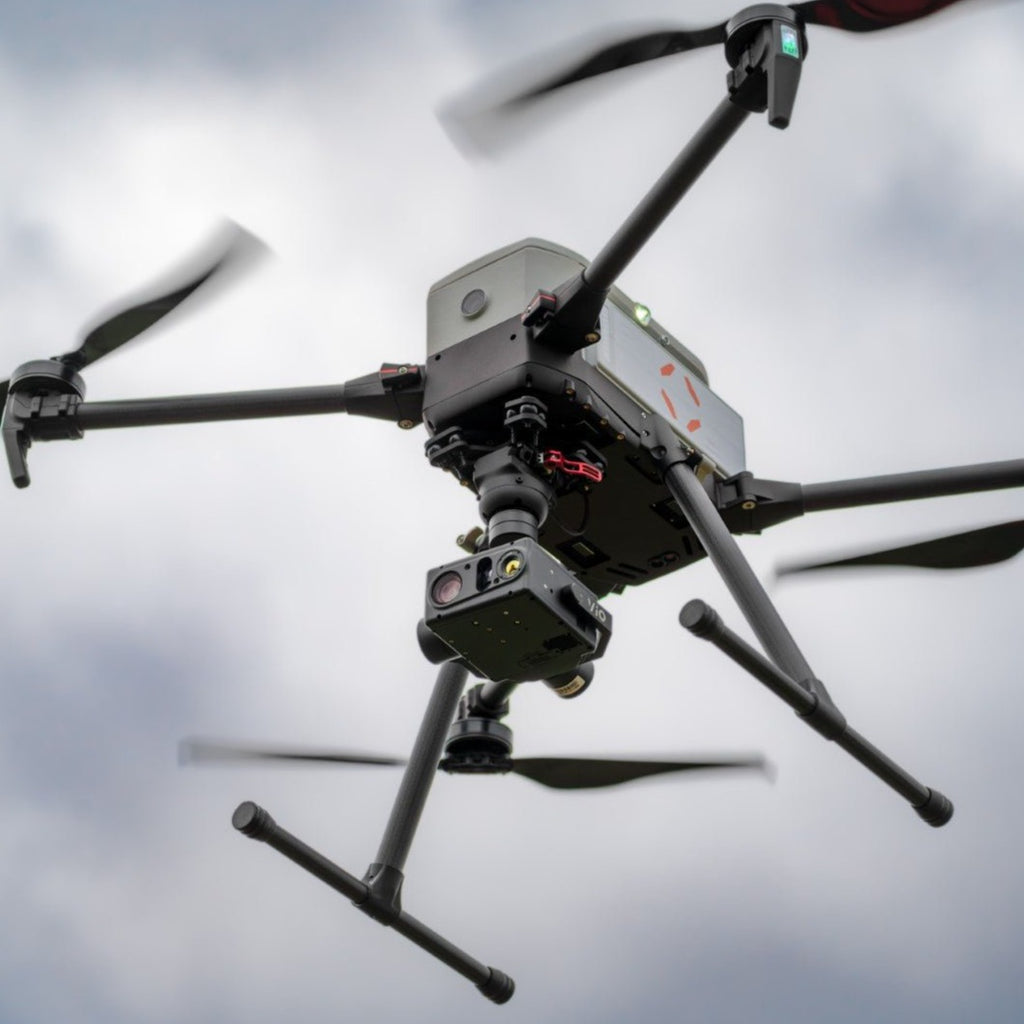

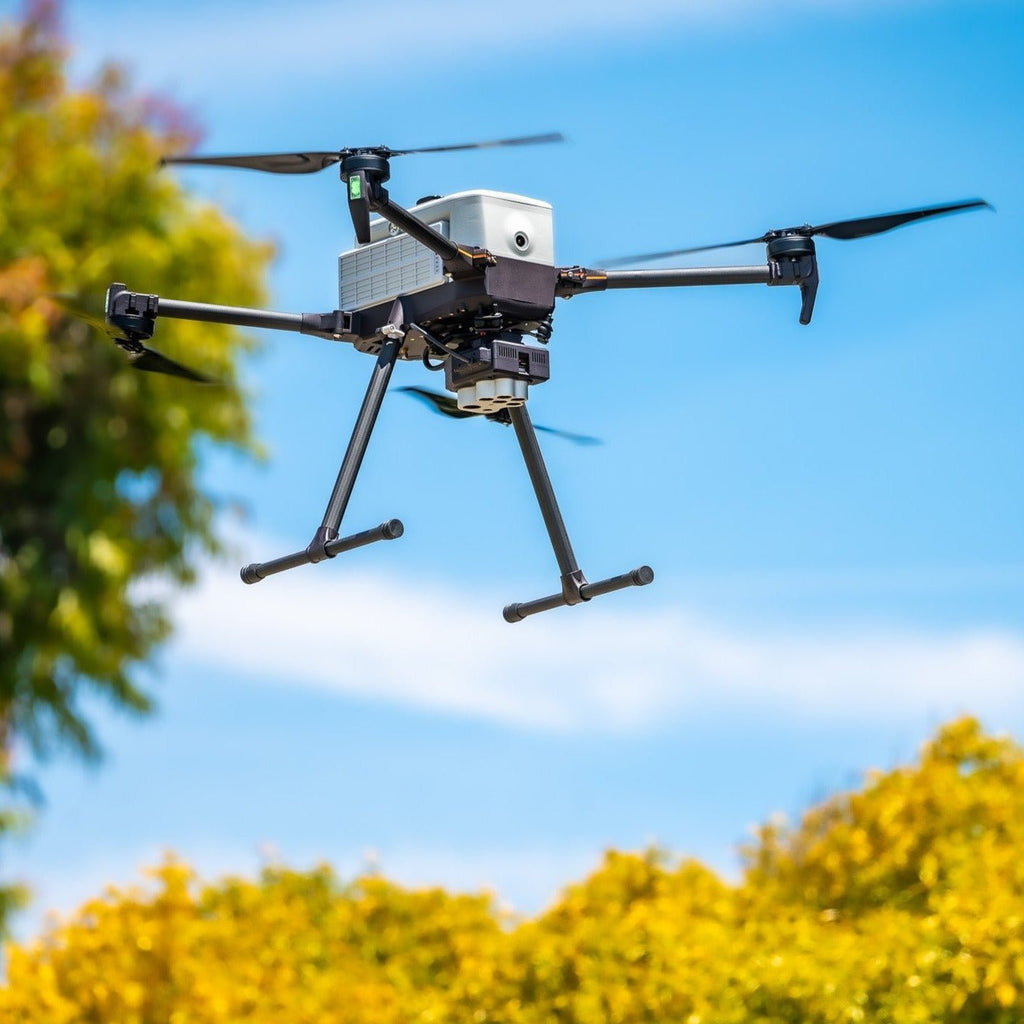

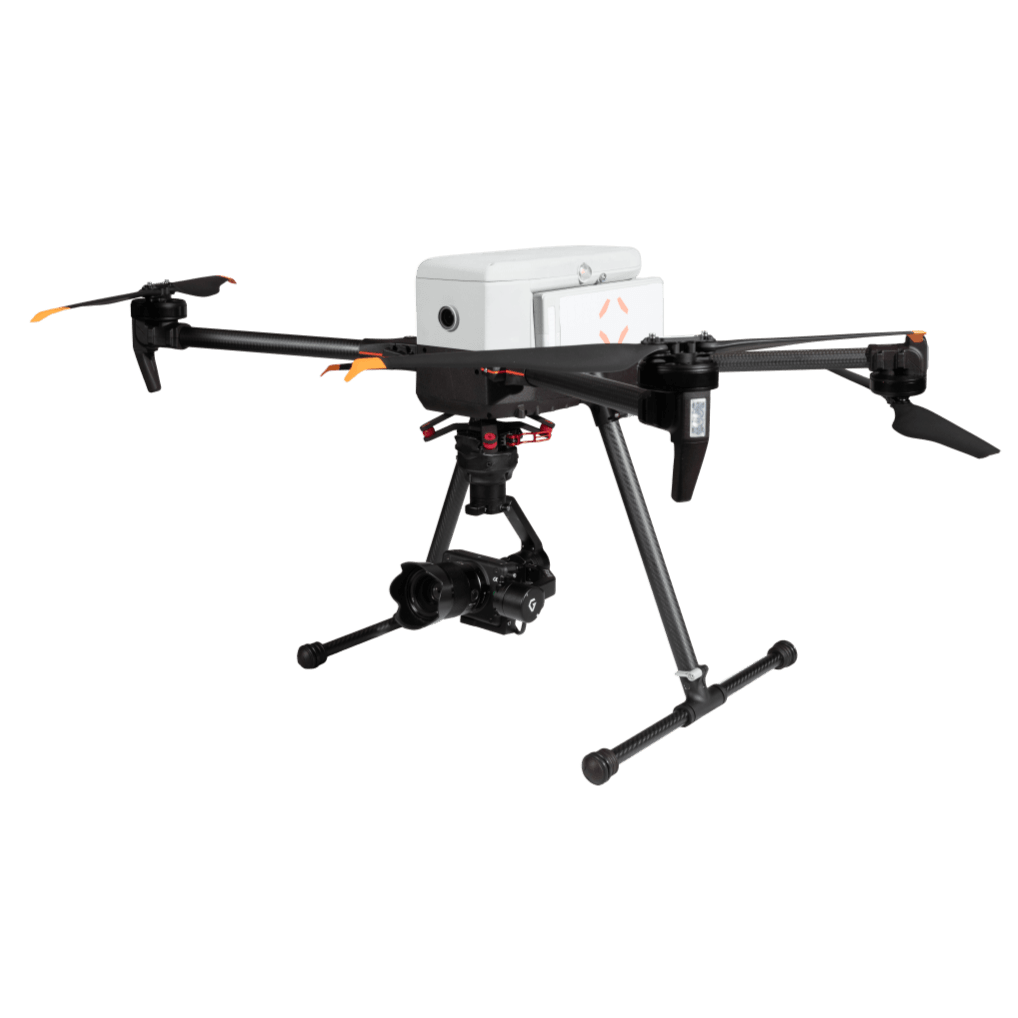

Inspired Flight Technologies partners with trusted manufacturers to offer a range of payload integrations. With options for Optical Imaging, EO/IR solutions, LiDAR, and Specialized Solutions, the IF800 provides a trusted platform for safely flying these valuable payloads.
Situational Awareness
With a built-in FPV camera, pilots can have a first-person view of the drone's surroundings in real-time. This feature enhances situational awareness, allowing for more precise control and safer operations, especially in challenging environments.
Easy to Transport
The IF800 Tomcat's foldable frame and removable landing gear make it compact and easy to store in its rugged hard case. The case provides ample space for accessories, batteries, and payloads, and features wheels and a retractable handle for effortless transportation.

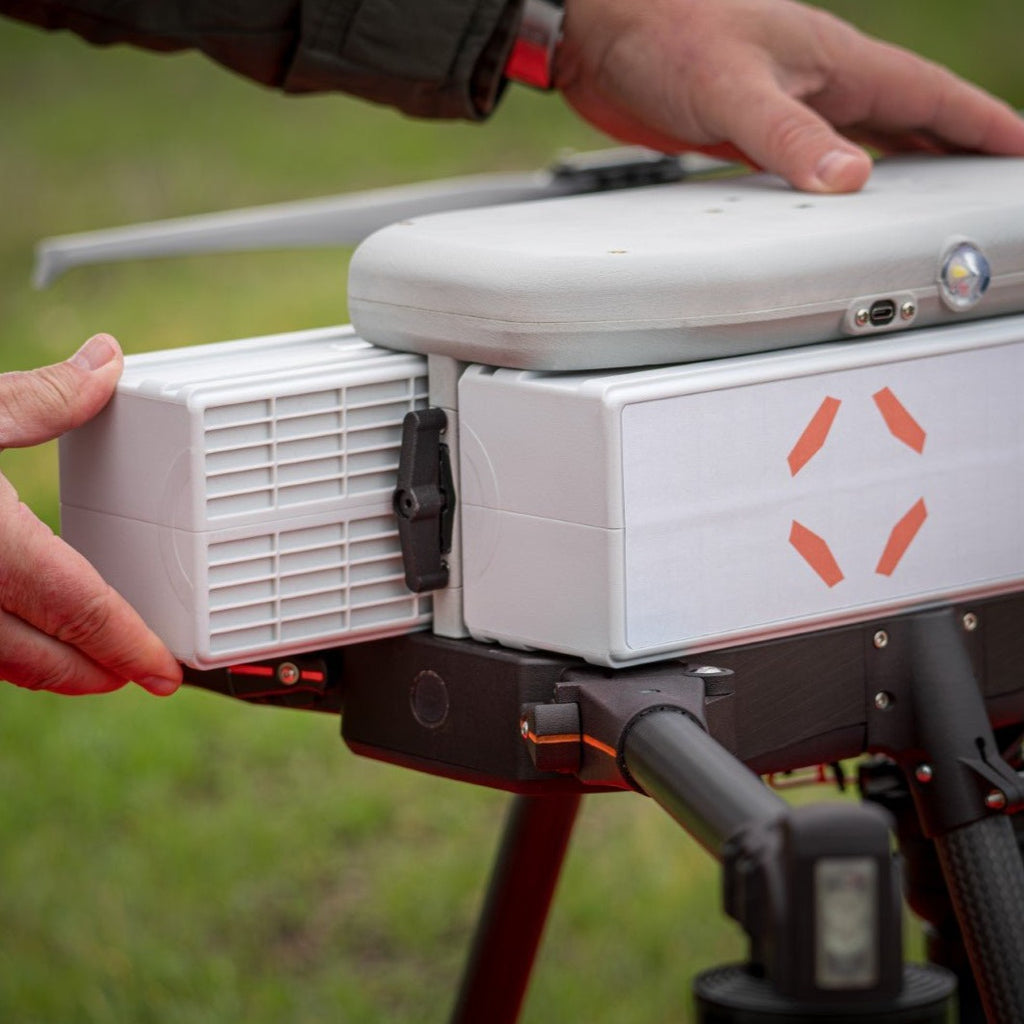

Intelligent Batteries
Engineered with internal cell balancing, health monitoring, and cycle tracking, the IB388 ensures optimal flight time in demanding environments. The IB388 batteries directly communicate with the IF800 Tomcat and support NFC communication for reporting in depth status to operators without the need to power on the drone.

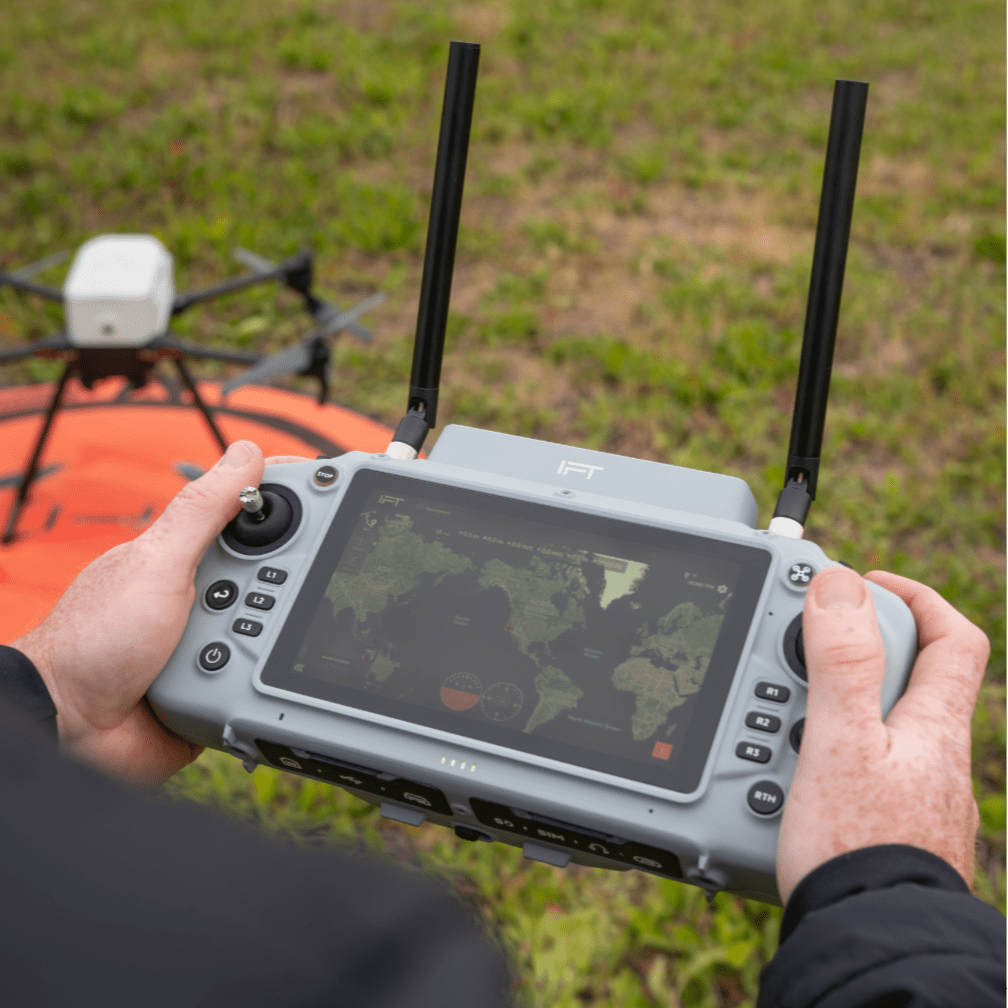

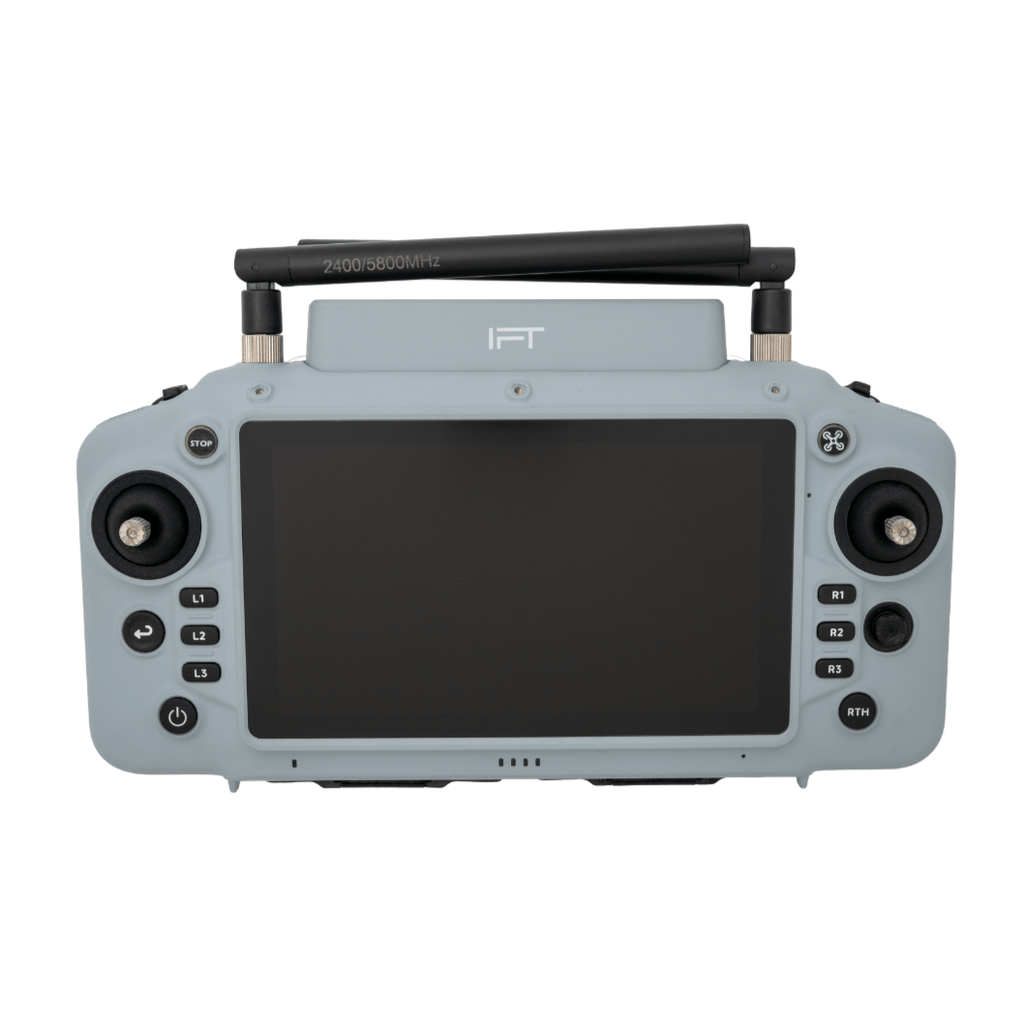

GS-ONE Ground Control Station
The GS-ONE is Inspired Flight’s next-generation handheld ground control station, purpose-built for mission-critical performance in the field. Designed for the IF800 Tomcat and IF1200 platforms, GS-ONE gives operators an intuitive, high-visibility interface and powerful command over every mission.
With a glove-compatible 7” touchscreen rated at 2000 NIT brightness, GS-ONE delivers a sunlight-readable experience in any environment. Pilots receive real-time video, telemetry, and aircraft control through a built-in 2.4 GHz NDAA-compliant radio, offering up to 6 miles of range. Cellular LTE, WiFi 6, and Bluetooth 5.2 ensure reliable connectivity wherever your mission takes you.
Engineered for long days in the field, the GS-ONE includes tool-less hot-swappable batteries offering up to 5 hours of runtime per pack. Running Android 14 and powered by a Qualcomm QCS6490 processor, GS-ONE features 8 GB of RAM and 128 GB of internal storage, delivering responsive performance across Inspired Ground Control and third-party apps like UGCS or QGroundControl.
With an IP55 rating, programmable buttons, onboard GNSS, and versatile I/O (HDMI, Ethernet, USB, Micro SD, SIM), the GS-ONE empowers pilots with the confidence and control needed for demanding commercial, utility, and public safety operations.
Inspired Flight IF800 Tomcat | Advancing Critical Technology in the United States
Payloads not included.
Applications
-
Surveying and Mapping - Construction, urban development, and land management
-
Infrastructure Inspection - From power lines to wind turbines
-
Surveying and Agriculture - Crop health, irrigation systems, and forest management
-
Emergency Response and Public Safety Missions - Search and rescue operations, assessing disaster zones
In the Box
1 - IF800 Quadcopter
1 - GS-ONE Ground Control Station
2 - Flight Batteries
1 - Battery Charger
1 - Rugged Transport Case
Specifications
IF800 Aircraft
Performance
Max Ascent Speed: 5 m/s, 16 ft/s
Max Descent Speed: 3 m/s, 10 ft/s
Max Air Speed: 25 m/s, 56 mph
Max Wind Resistance: 10 m/s 12 m/s gusts, 19 knot 23 knot gusts
Max Tilt Angle: 30°
Max Angular Velocity: Tilt: 300°/s, Yaw: 120°/s
Operating Temperature: -10°C ~ 40°C, 14°F ~ 104°F
Operating Humidity: 10%~95%
Service Ceiling (with given payload): 4.3 km (14,100 ft) w/1.3 kg, 2.8 km (9,200 ft) w/3.0 kg
Physical Features
Diagonal Size (propeller center to center): 935 mm, 36.8 inches
Unfolded Size (flight ready, W x L x H): 135 x 116 x 45 cm, 53.1 x 45.6 x 17.7 inches
Folded Size (stow, W x L x H): 38 x 48 x 19 cm, 18.9 x 15.0 x 7.5 inches
Empty Weight (w/o batteries): 3.5 kg, 7.7 lbs
Weight w/ Batteries: 7.7 kg, 16.9 lbs
Max Gross Takeoff Weight: 10.7 kg, 23.5 lbs
Max Payload Capacity: 3.0 kg, 6.6 lbs
Transport Case Size (W x L x H): 52.8 x 80.7 x 31.7 cm, 20.8 x 31.8 x 12.5 inches
Transport Case Weight (w/ aircraft & GCS): 18 kg, 40 lbs
Flight Stack
Flight Controller: CubePilot Cube Blue H7
GNSS / Compass: CubePilot Here4 Blue (2x)
Payload Power Rails: 5v, 12v, 18v
Payload Interface: IFT Universal Payload Interface V3
Operating Software: Copter by Ardupilot
GS-One Ground Control Stations
General
Size: 29 x 18 x 8 cm (11.3 x 7.0 x 3.2 in)
Weight: 1.80 kg (3.9 lbs)
Display: 7” 1080P LCD, 2000 NIT brightness, touchscreen
Operating System: Android 14
Processor: Qualcomm QCS6490
Memory: 8 GB RAM, 128 GB storage
Battery & Power
Runtime: 4–5 hours
Battery Type: 2S 10,400mAh, hot-swappable
Charging: USB-C PD2.0, full charge in <3 hours
Connectivity
Cellular: 4G LTE, CAT 7
WiFi: 802.11 a/b/g/n/ac/ax (2.4GHz)
Bluetooth: v5.2
Radio: NDAA Complaint 2.4 GHz, up to 6.2 miles range
I/O & Interfaces
USB-A 2.0, USB-C 2.0
Full-size HDMI
RJ-45 Ethernet
3.5mm Audio Jack
SIM Card Slot
Micro SD (UHS-1 Grade 3)
GNSS Support
GPS, GLONASS, Galileo, QZSS, SBAS
Environmental
IP Rating: IP55
Operating Temp: 0°C to 45°C (32°F to 113°F)
