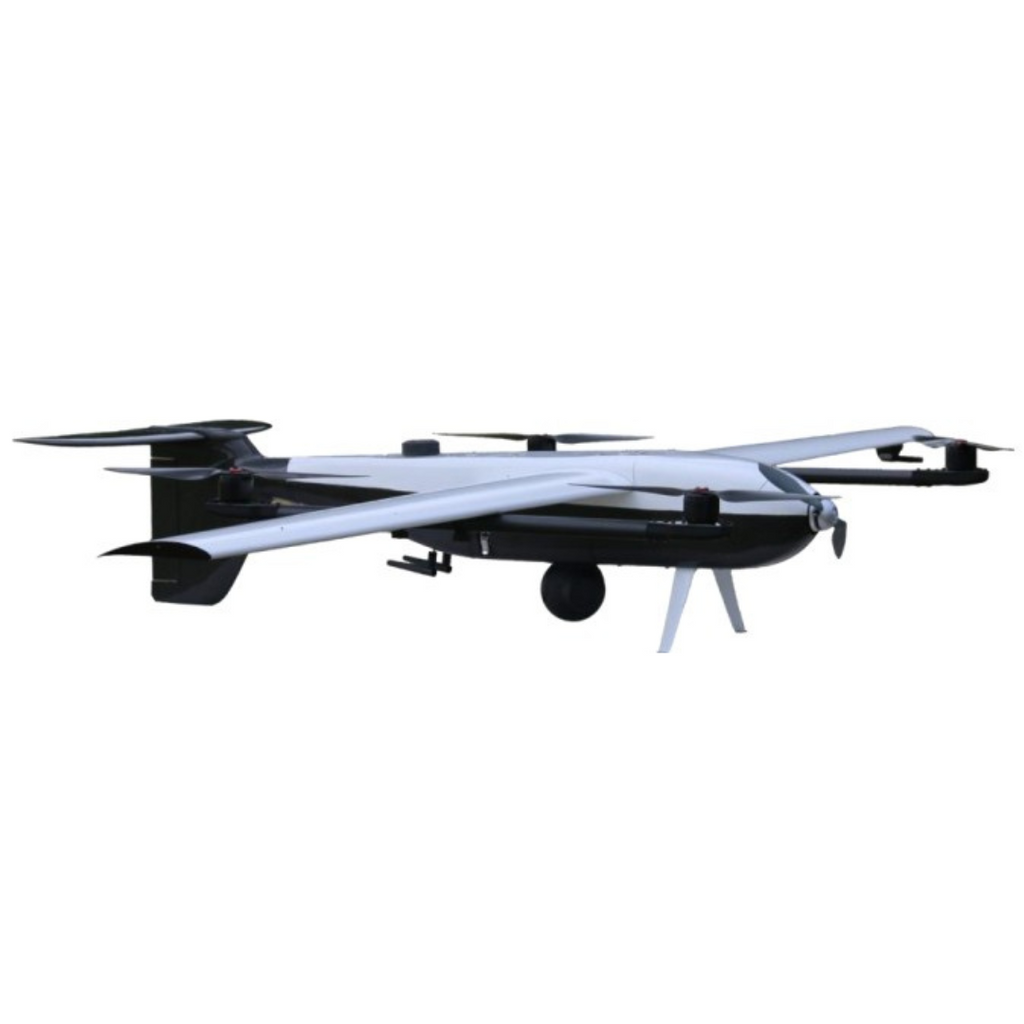

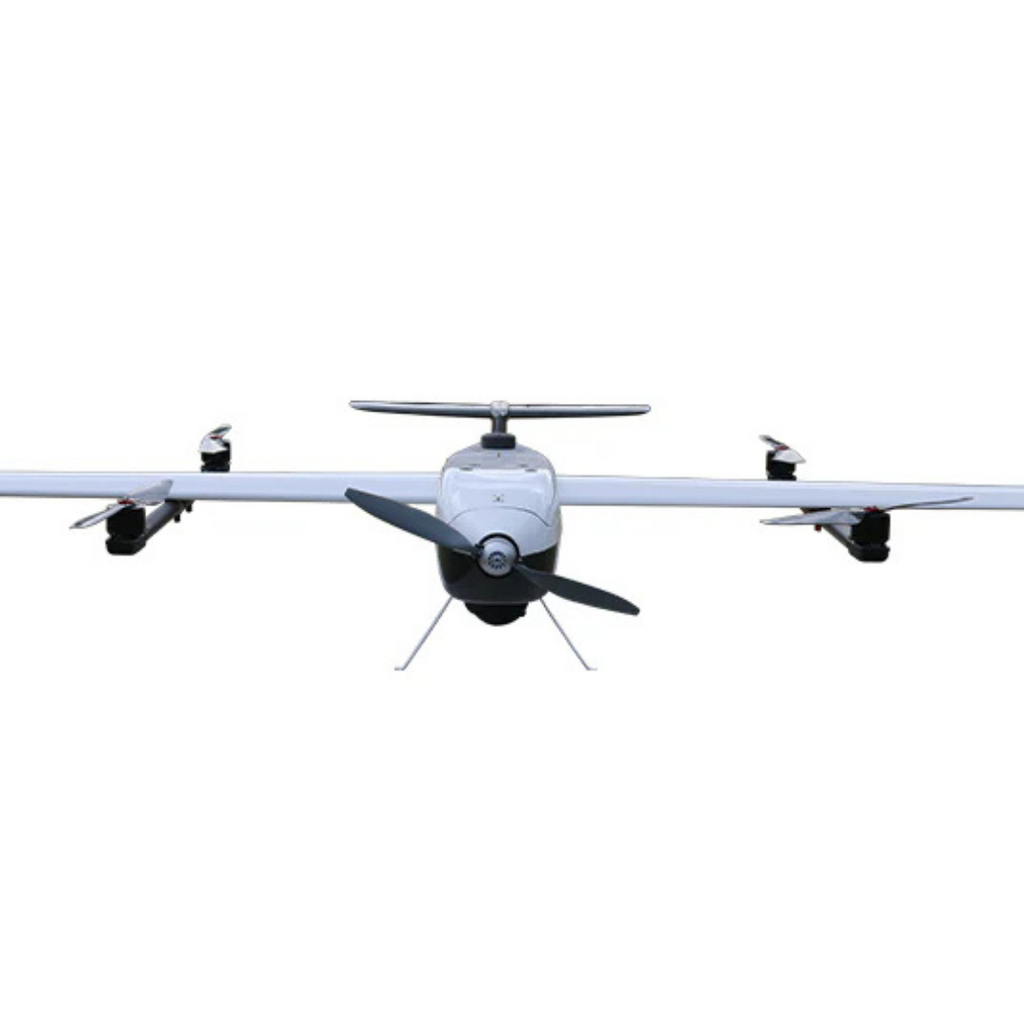

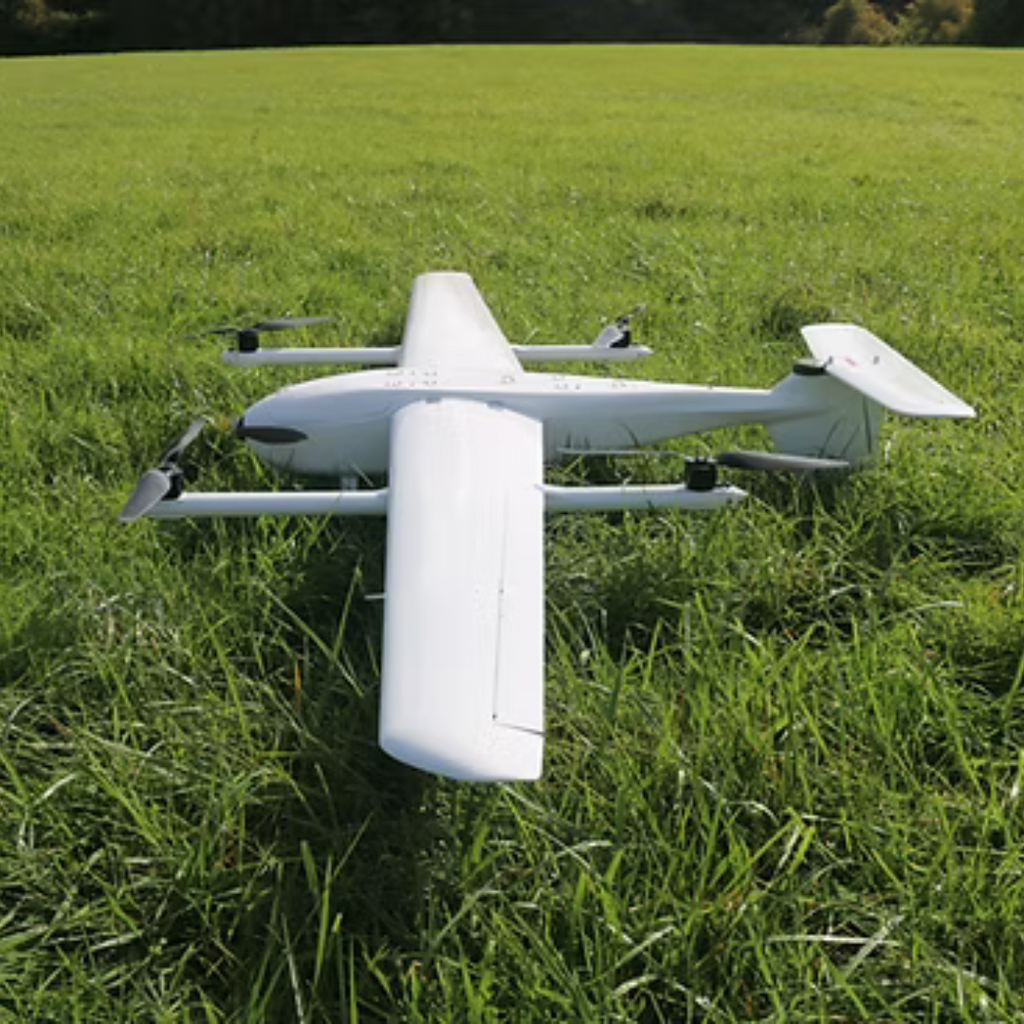

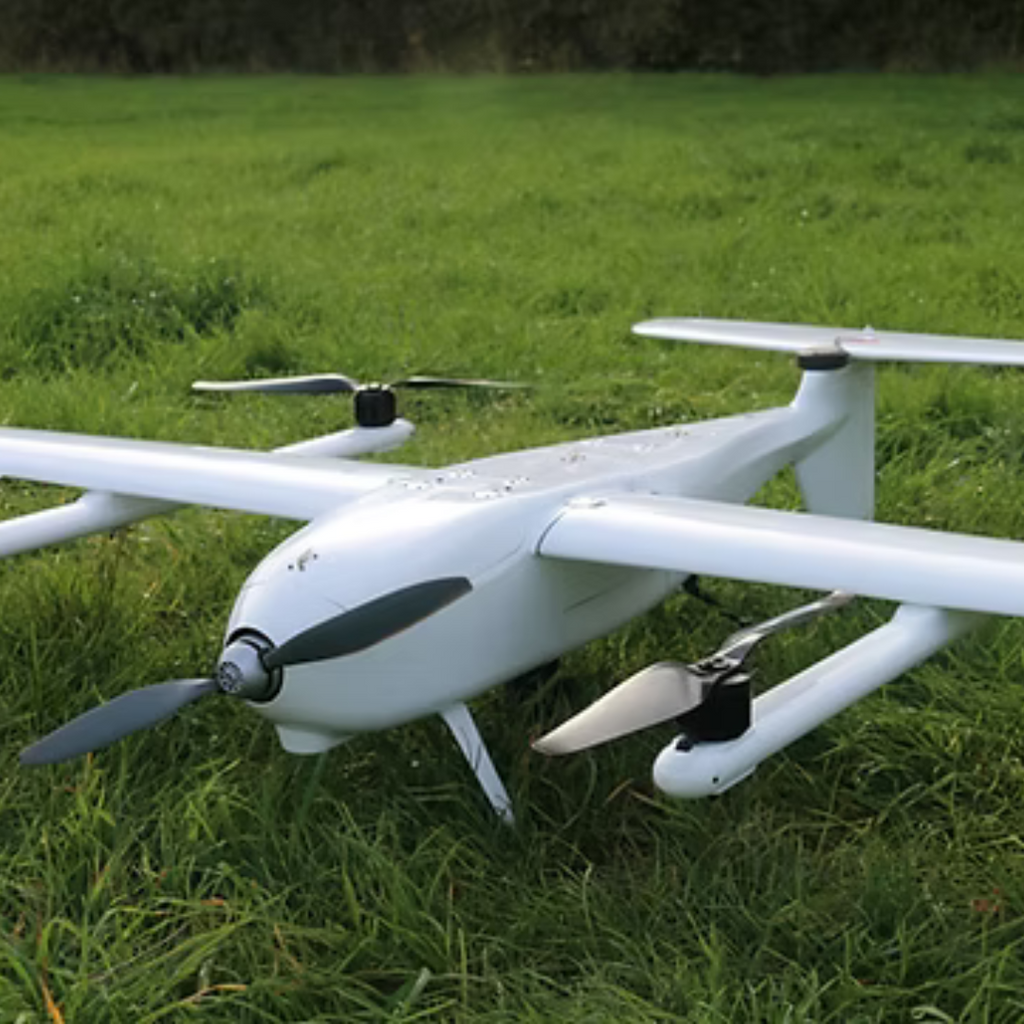

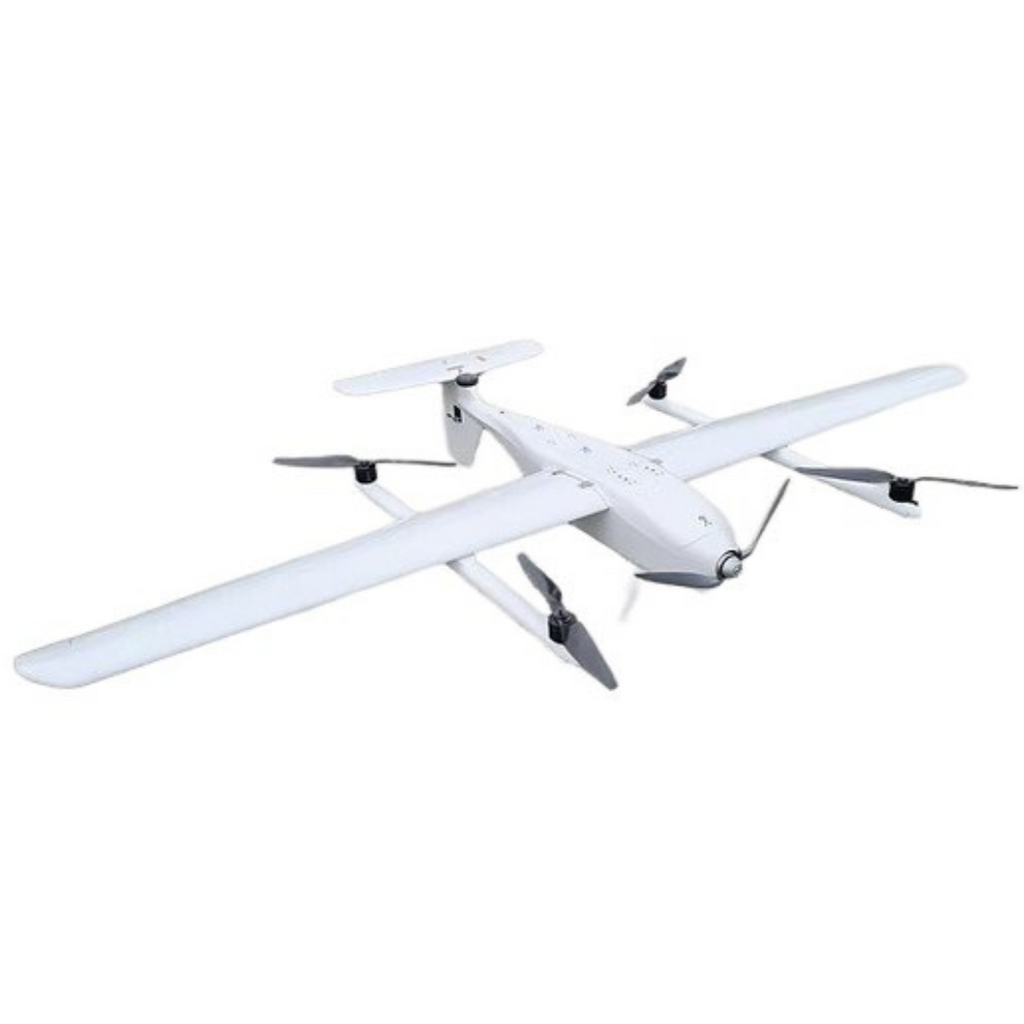

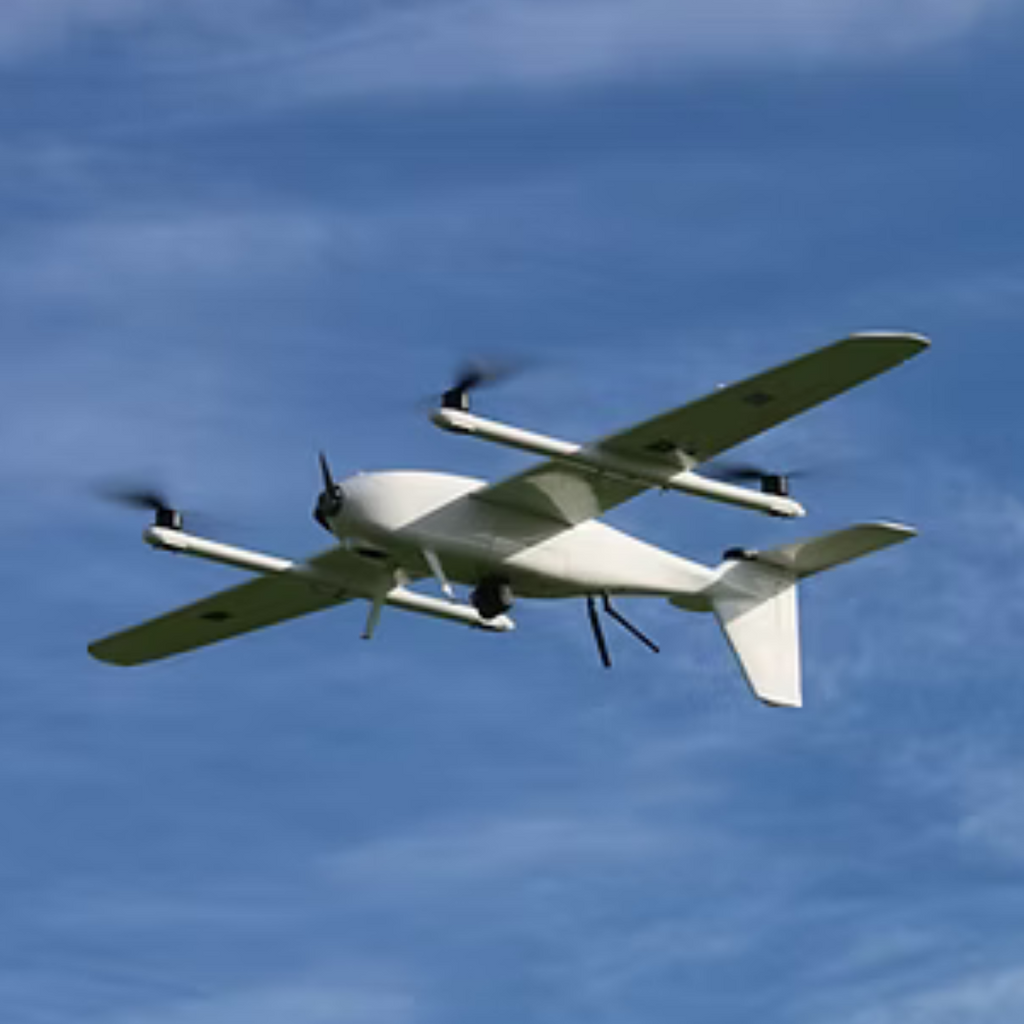

UAVTek Babka Fixed Wing VTOL

UAVTekSKU: UAVTEK-BABKA

Contact to Purchase:

Carbon-neutral shipping with Shopify Planet
Carbon-neutral shipping on all orders

Description

Unrivalled for its class, The UAVTek BABKA Fixed Wing VTOL is designed and built to offer high performance operational capability, cover further distances, and carry modular payload systems. Featuring vertical take off and landing, the Babka can be launched in limited space by a single operator, and be deployed for non-stop flight mission of up to 180 minutes.

The Babka provides BVLOS strategic situational awareness either day or night, with the ability to broadcast securely to multiple locations, allowing users to view the live feed or control the drone from anywhere in the world utilizing LTE, Star Link, Satellite or other internet connection.

Featuring intelligent return to launch mode and offering autonomous mission capability, the UAVTek Babka is designed to operate in GNSS denied environments, with a low audible signature and minimal visual profile, making it ideal for covert operations.

Features

  • Strategic asset designed to enhance operational awareness and complement our current ecosystem of tactical platforms
  • VTOL configuration and simple set-up, the Babka can be launched from confined spaces with ease and confidence via ground, vehicle or boat
  • Deployable for non-stop flight missions of up to 180 minutes, with a maximum transmission distance of 30km+ (5.8Ghz)
  • Capable of flying in windspeeds of up to 12 knots (15 knots gusting)
  • Pre-programmed flight modes installed on controller featuring intelligent return to launch mode and fully autonomous mission capability
  • Equipped with a lossless zoom HD camera and thermal camera, the Babka can provide unrivalled visual surveillance/situational awareness during day or night using photography and video. Footage can be broadcasted securely to multiple locations
  • With low visual/audible signature the Babka is a capable platform even in the most challenging environments operating in temperatures -15 to +50 Celsius
  • Use of secure wireless link and SD card encryption for protection
  • Cellular network and manet radio modules used to effectively overcome radio frequency disruption, especially in an urban environment

UAVTek | Designed to Push the Boundaries

Specifications

Aircraft

Wingspan  2.3m
Dimensions 1400mm x 2300mm x 300mm
MTOW 11kg
Flight Time 180 minutes
Max Windspeed 56kph
Transmission range standard 15km / sector antenna 93km / LTE link 300km
Frequency 5.8Ghz / 2.4Ghz
Payload Capacity 3kg
Operating Temperature -20°C to +50°C
Autonomous Navigation Yes



Camera

Day Camera

EO 2pcs 12.3MP

Thermal Camera

384 x 288, 25Hz

Video Stream

1080P
