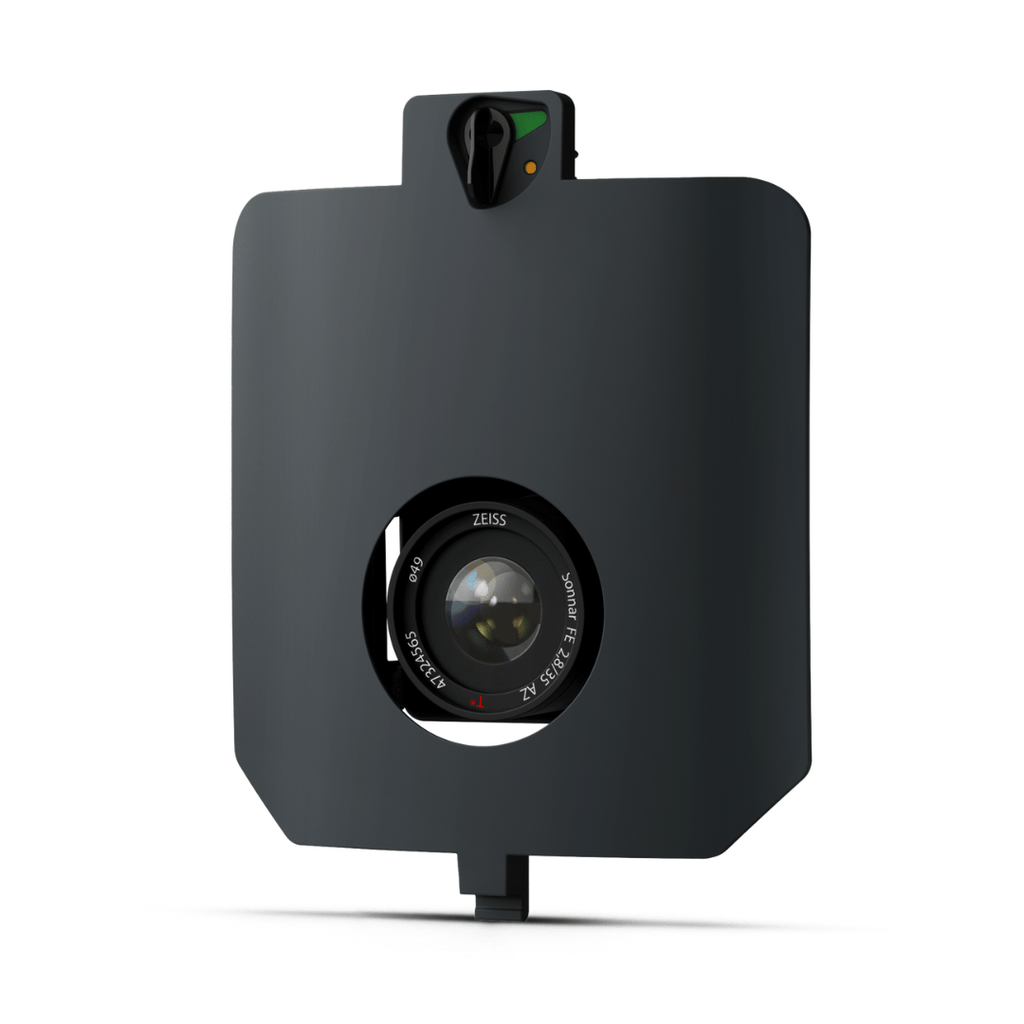

WingtraRAY SURVEY61 Payload

The WingtraRAY SURVEY61 Payload combines a 61 MP full-frame sensor with a low-distortion 35 mm lens, enabling high-precision mapping down to 0.5 cm / 0.2 in GSD. Capture up to 310 ha / 770 ac per flight at 400 ft with survey-grade accuracy—ideal for urban planning, construction monitoring, and large-scale topographic projects.

Features

• Survey-grade accuracy:  horizontal / vertical RMS ≤ 3 cm (0.1 ft) via PPK, no GCPs.
• High resolution:  nadir 61 MP sensor achieves 0.5 cm/px for detailed as-builts and BIM.
• Large coverage:  map up to 770 ac in one sortie at 1.3 cm/px.
• Seamless workflow:  plan, fly, and process in WingtraCLOUD for same-day orthos & DSMs.

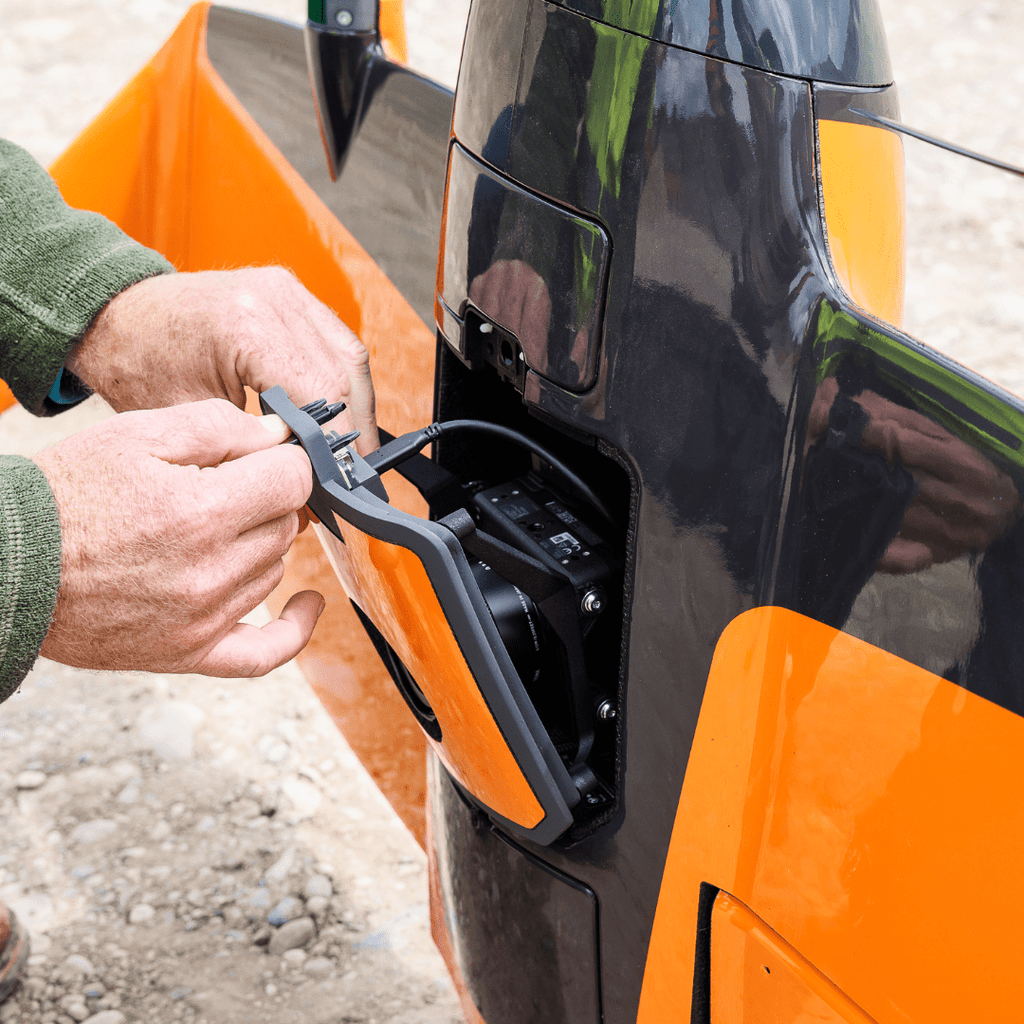

• Quick-swap design:  tool-less mount lets crews change payloads in seconds.

High Quality, Swappable and Durable

• Unwavering aerial image quality:  Thanks to their heavy payload capacity, the Wingtra drones carry the highest quality sensors on the market.
• Keep a lean fleet:  Effortlessly switch between sensors, including high-resolution RGB cameras, multispectral sensors and advanced LIDAR, on the same drone platform.
• Protected from landing shock:  Thanks to the smooth vertical landing, your high-quality sensors are always protected, even in rough environments, ensuring a longer lifespan.

Applications

• Mining and Metals:  Ensure accurate exploration and effective reclamation strategies with precise terrain mapping.
• Construction and Infrastructure:  Ensure project feasibility and optimal design with detailed greenfield surveys and precision earthwork planning.
• Urban Planning and Land Management:  Drive informed planning and sustainable development with comprehensive greenfield surveys.
• Environmental Monitoring:  Monitor environmental changes and simulate floods for more effective ecological management and planning.

WingtraRAY SURVEY61 Payload - Highest Quality Photogrammetry with Survey-Grade Accuracy

Compatibility

WingtraRAY

In the Box

1 - SURVEY 61 Payload including mount for WingtraRAY
1 - Storage device

Specifications
