Freefly LR1 Laser Range Finder Upgrade

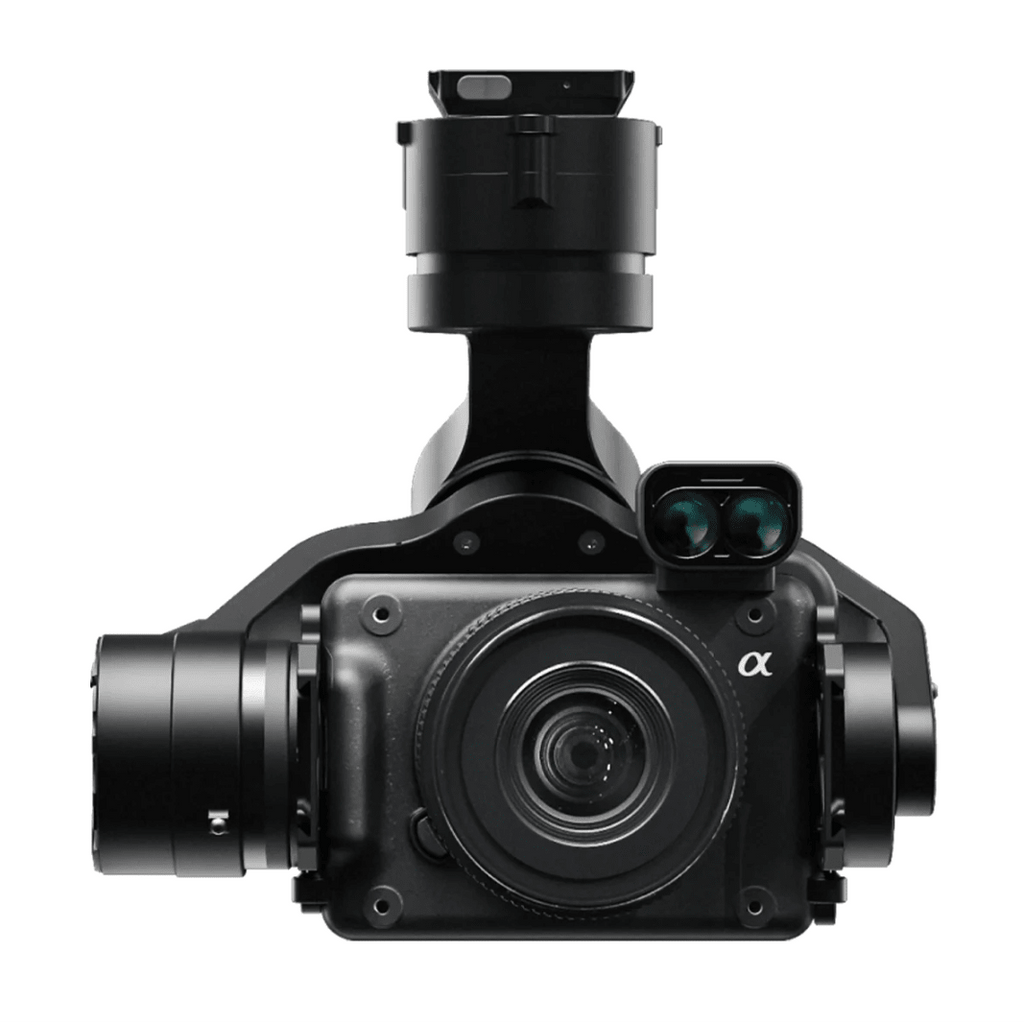

The Freefly LR1 Laser Range Finder Upgrade adds convenient distance measurement capability to the LR1 Payload on Freefly Astro. The user-installable module attaches directly to the LR1 Payload with four screws and connects through the expansion port. A dedicated counterweight and installation hardware are included.

Once installed, the distance is displayed as a live readout in AMC. The distance measurement is also saved in the image metadata when a photo is captured. With a range of up to 328 ft. at 70% reflectivity, the module provides distance information for objects such as buildings and other structures.

Features:

• Range of up to 328 ft at 70% reflectivity
• Compatible with Freefly Astro with LR1 Payload
• Live distance readout in AMC
• Distance measurement saved in image metadata
• Dedicated counterweight and installation hardware included
• Requires an additional app on Astro

Compatibility

Any Astro with LR1 Payload*

*Use of auxiliary modules on the LR1 Payload will require specific counterweights. LR1 Laser Range Finder Upgrade and LR1 Thermal Upgrade can be used together with LR1 Payload and the larger counterweight plate included with the Thermal Upgrade.

In the Box

1 - Freefly Distance Sensor Module for LR1
1 - Sensor Module Counterweight
2 - M3x5 BHCS Sensor Mounting Screw
2 - M3x10 SHCS Sensor Mounting Screw
3 - M3x8 FHCS Counterweight Mounting Screw

Specifications

Integrated Lightware SF20/C Sensor

• Maximum Range - 100 meters / 328 feet @70% reflectivity
• Update Rate - 5Hz in AMC

Weight:  45g installed
