The WingtraRAY INSPECT Payload features a 61 MP full-frame sensor paired with an 85 mm telephoto lens, enabling ultra-high-resolution imaging with GSD down to 0.25 cm (0.1 in) from 200 ft AGL. Effortlessly inspect railways, runways, facades, and other critical infrastructure in razor-sharp detail, while still covering up to 100 ha (250 ac) per flight at 400 ft.
Features
-
Ultra-high resolution: Detect cracks and defects at sub-millimeter scale.
-
Fast trigger: 0.4 s interval keeps images crisp even at 22 m/s.
-
Efficient coverage: Map 250 ac at 0.5 cm/px in a single mission.
-
Reliable accuracy: PPK delivers ≤ 3 cm (0.1 ft) absolute RMS without GCPs.
-
Seamless workflow: Plan, fly, and process inside WingtraCLOUD for same-day reports.
High Quality, Swappable and Durable
-
Unwavering aerial image quality: Thanks to their heavy payload capacity, the Wingtra drones carry the highest quality sensors on the market.
-

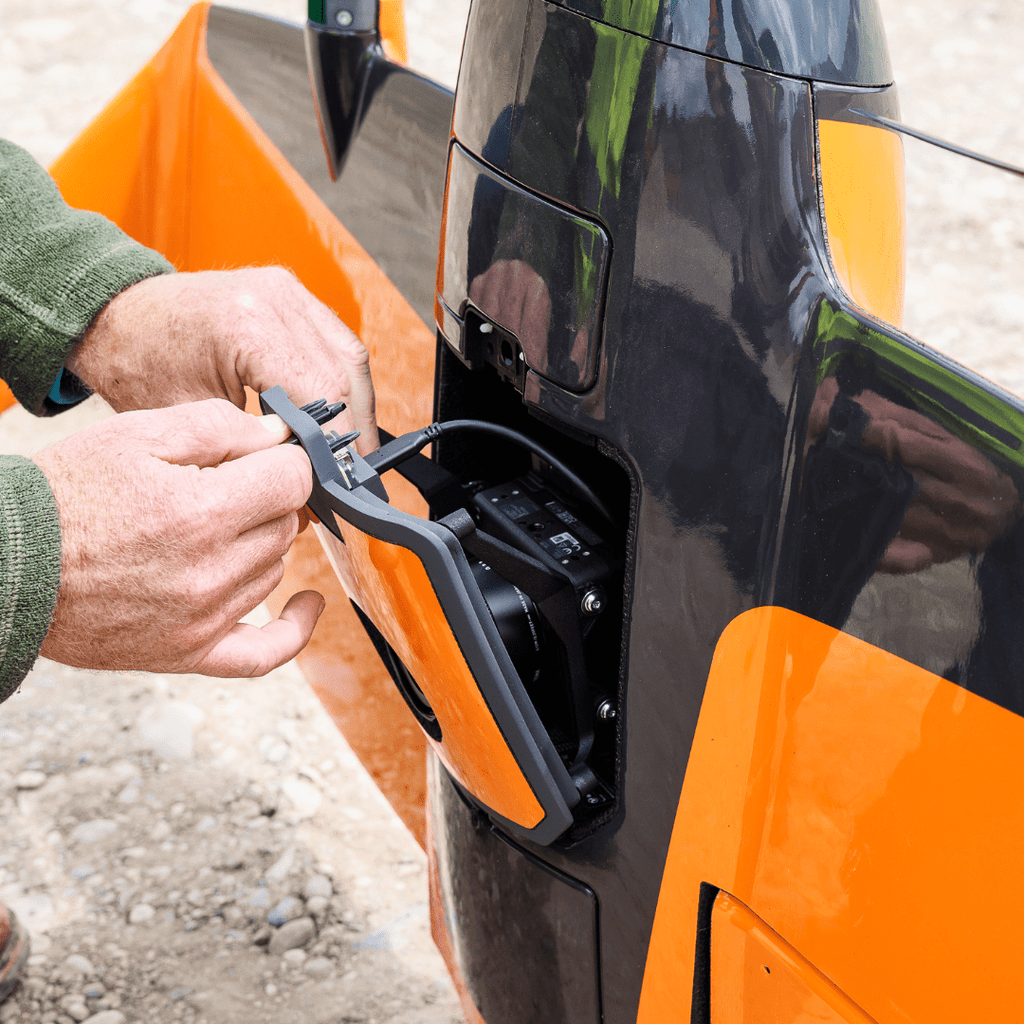

Keep a lean fleet: Effortlessly switch between sensors, including high-resolution RGB cameras, multispectral sensors and advanced LIDAR, on the same drone platform.
-
Protected from landing shock: Thanks to the smooth vertical landing, your high-quality sensors are always protected, even in rough environments, ensuring a longer lifespan.
Applications
- Mining and Metals: Ensure accurate exploration and effective reclamation strategies with precise terrain mapping.
- Construction and Infrastructure: Ensure project feasibility and optimal design with detailed greenfield surveys and precision earthwork planning.
- Urban Planning and Land Management: Drive informed planning and sustainable development with comprehensive greenfield surveys.
- Environmental Monitoring: Monitor environmental changes and simulate floods for more effective ecological management and planning.

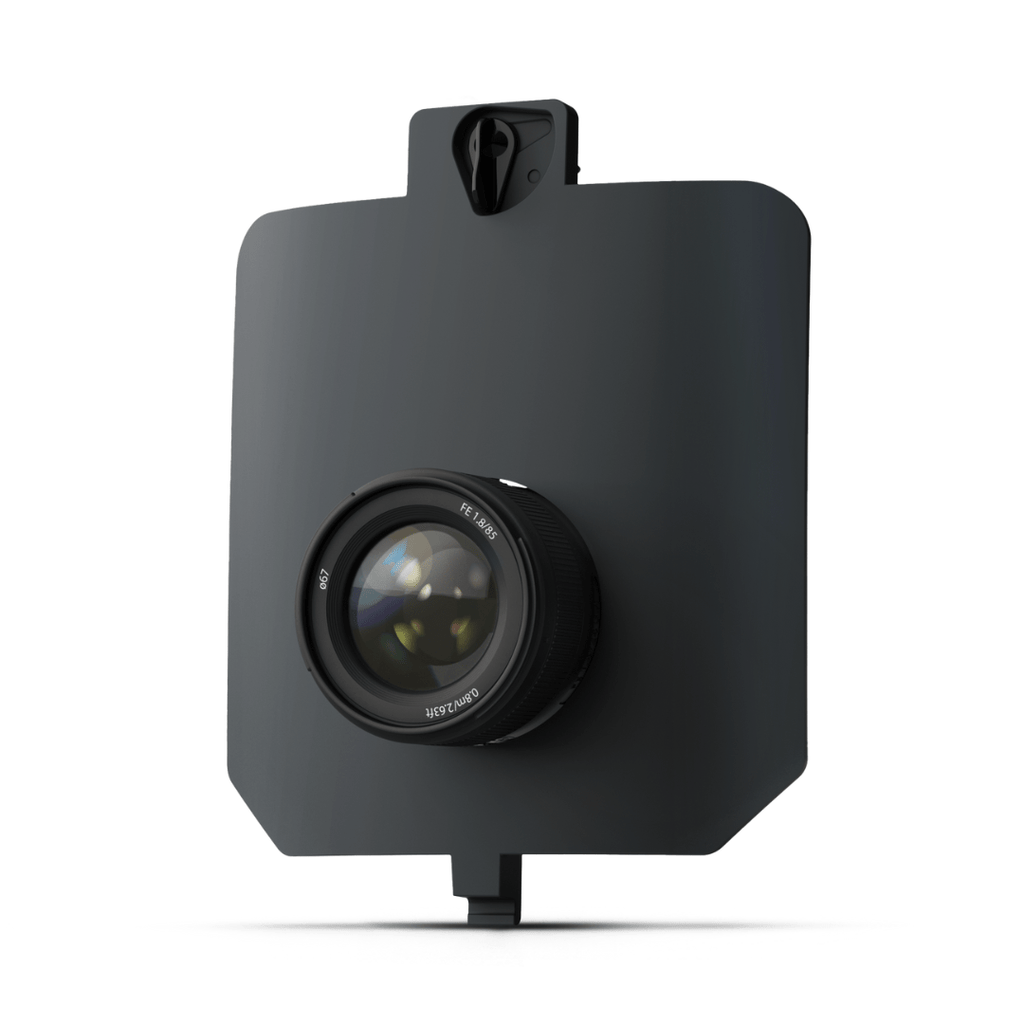

The WingtraRAY INSPECT Payload - For Millimeter Resolution Inspections
Compatibility
WingtraRAY
In the Box
1 - INSPECT Payload including mount for WingtraRAY
1 - Storage device
Specifications
| Sensor |
61 MP full-frame, focal-plane shutter |
| Lens / focal length |
85 mm (3.35 in) telephoto, nadir mount |
| GSD @ 400 ft (120 m) |
0.5 cm/px (0.20 in/px) |
| Lowest GSD |
0.25 cm/px (0.10 in/px) @ 200 ft (60 m) |
| Max coverage @ 400 ft* |
100 ha (250 ac) • 81 % frontal overlap |
| Max coverage @ lowest GSD* |
50 ha (125 ac) @ 200 ft |
| Accuracy (PPK, no GCPs) |
Horizontal / Vertical ≤ 3 cm (0.1 ft) RMS |
| Payload weight (incl. mount) |
585 g (1.29 lbs) |
| Minimal trigger time |
0.4 s • Min. trigger distance 8 m (26 ft) |
| Coverage assumptions |
60 % side-overlap, calm conditions |
