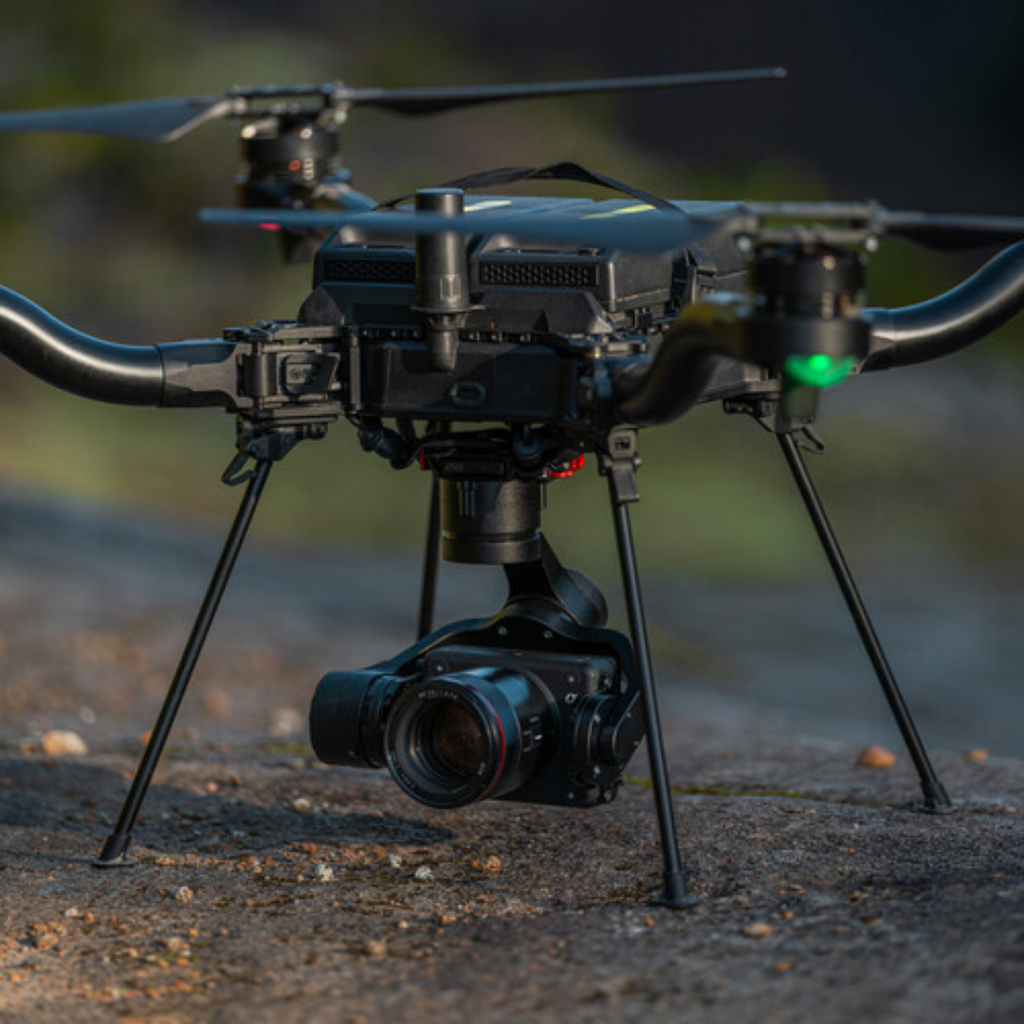

The Freefly LR1 Payload is designed for high-resolution mapping and imaging missions with the Freefly Astro. Designed and assembled in the USA, the payload is NDAA compliant and DIU Blue approved.

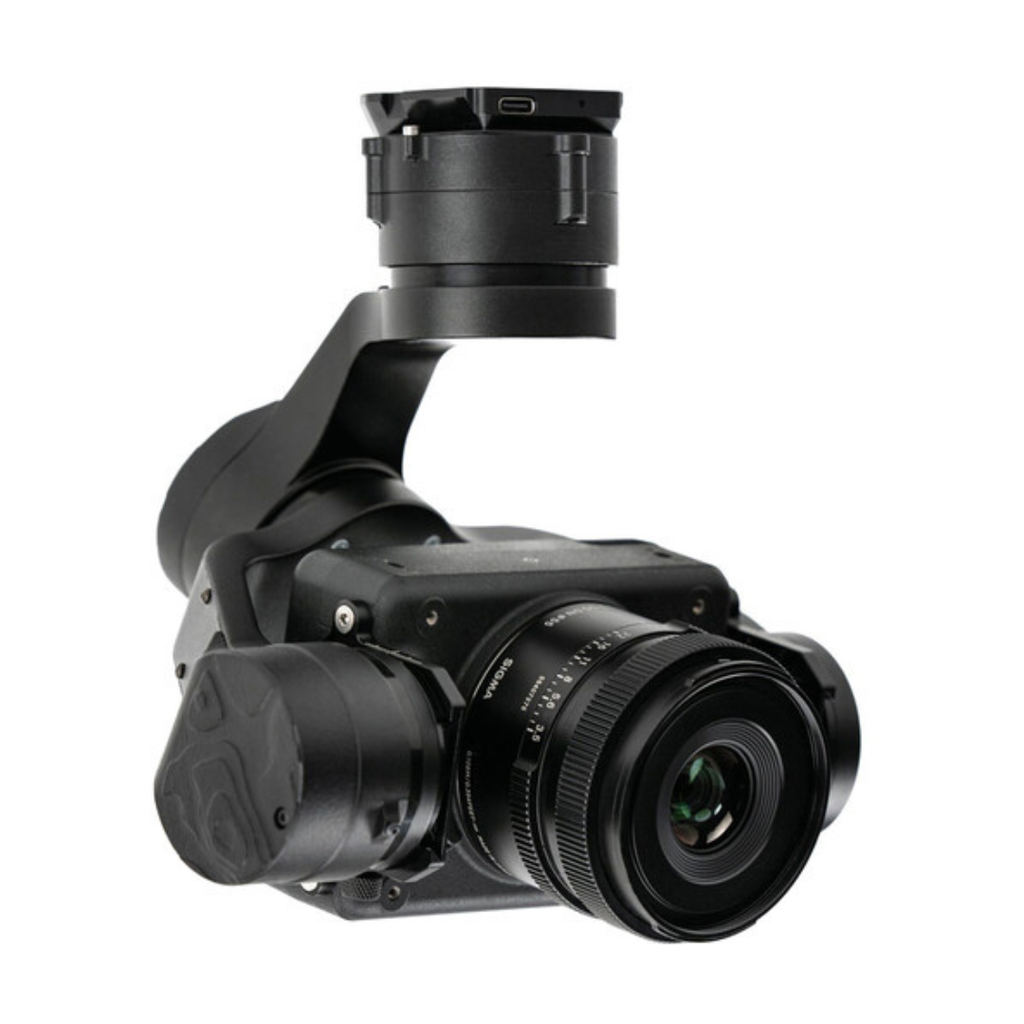

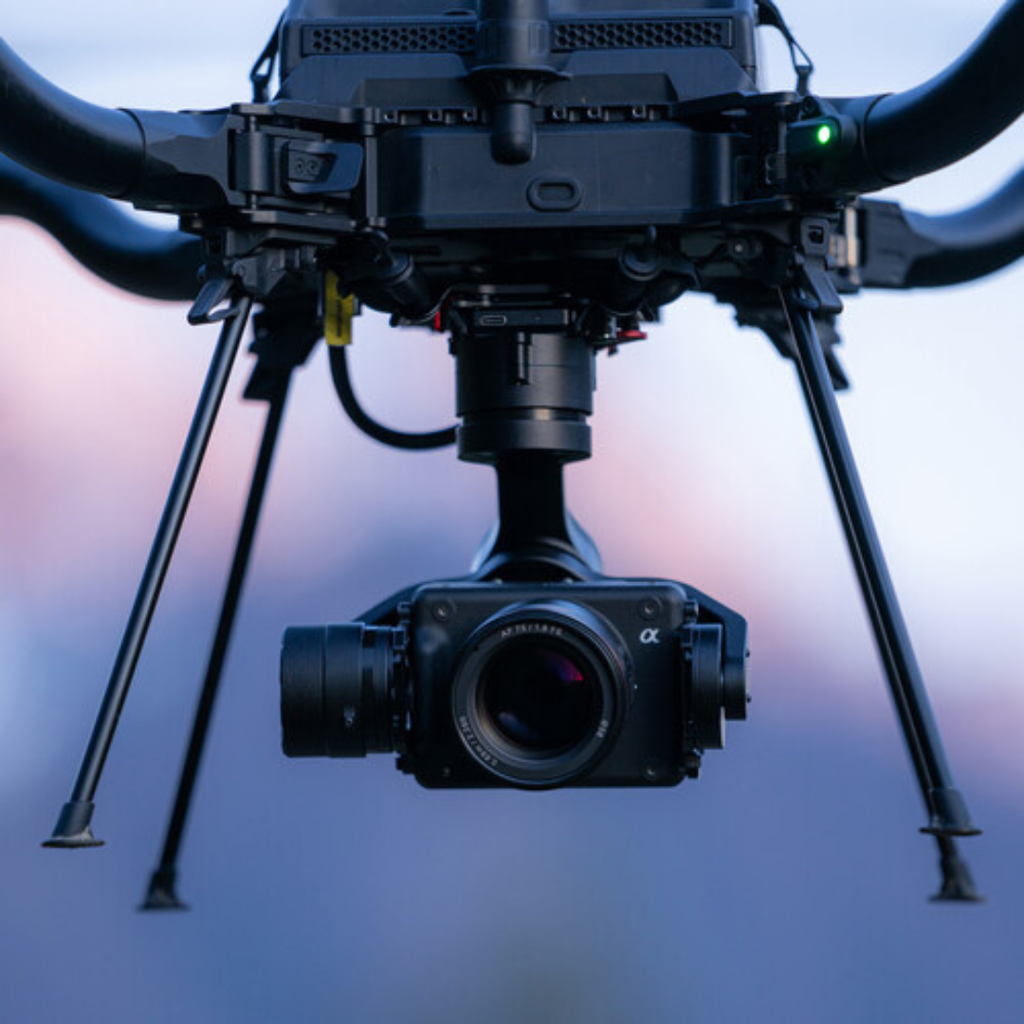

The LR1 mounts to Astro using the Freefly Smart Dovetail system and includes a Freefly gimbal pre-installed with a 61MP Sony ILX-LR1 camera and Sigma 24mm mapping lens. The Smart Dovetail connection provides power and data communication between the camera and the ground station controller or LTE network, supporting camera settings, shutter control, gimbal tilt, and image preview. A USB drive is included to capture geo-tagged JPG images. The payload is adjustable and expandable, supporting different lenses for different applications and providing expansion ports for add-on cameras, sensors, and power output.
Features:
- Designed for high-resolution aerial mapping and imaging
- Designed and assembled in the USA, NDAA compliant, DIU Blue approved
- Smart Dovetail connection
- Adjustable and expandable payload design
- Supports multiple lenses for different applications
- Expansion ports for optional add-on cameras, sensors, and power output
Important Notes:
- The LR1 Payload is tuned to work best on Astro or Astro Max with the Astro Isolator.
- An Astro Isolator is required to mount the payload to an Astro that does not already have one.
- The LR1 Payload is not available without the camera and lens and is not intended to be disassembled for use of the camera separately.
- The payload is optimized for mapping and inspection using JPG images.
- RAW photos can be enabled, but RAW files save directly to the camera SD card without location data.
Compatibility
Astro & Astro Max
Alta X Gen2
LR1 Thermal Upgrade*
LR1 Laser Range Finder Upgrade*
Tested Lenses:
- Sigma 24mm F3.5 (included with payload)
- Sony FE 35mm F2.8
- Sony FE 50mm F1.8
- Samyang 75mm F1.8
*The LR1 Laser Range Finder Upgrade (910-00841) and LR1 Thermal Upgrade (910-00840) are modules for the LR1 Payload and cannot be used on Astro without the LR1.
In the Box
1 - Travel Case

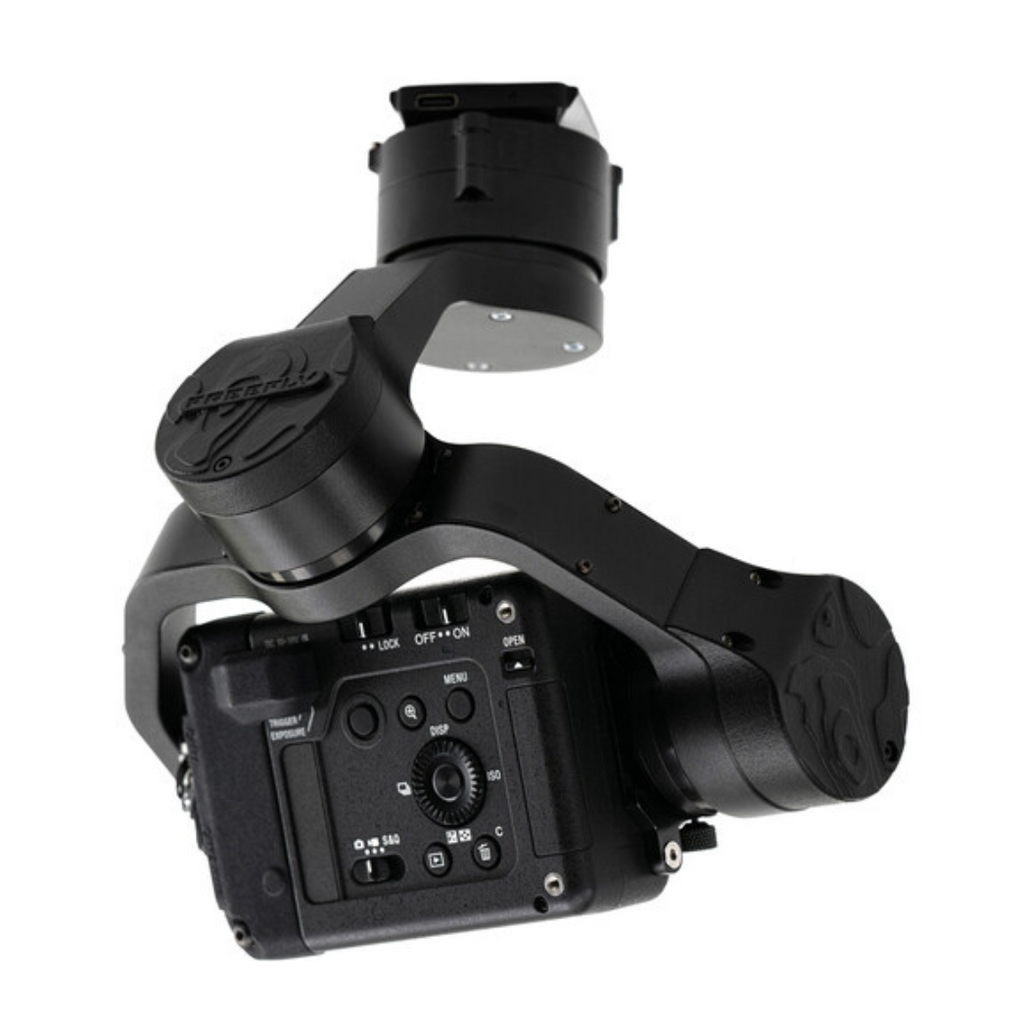

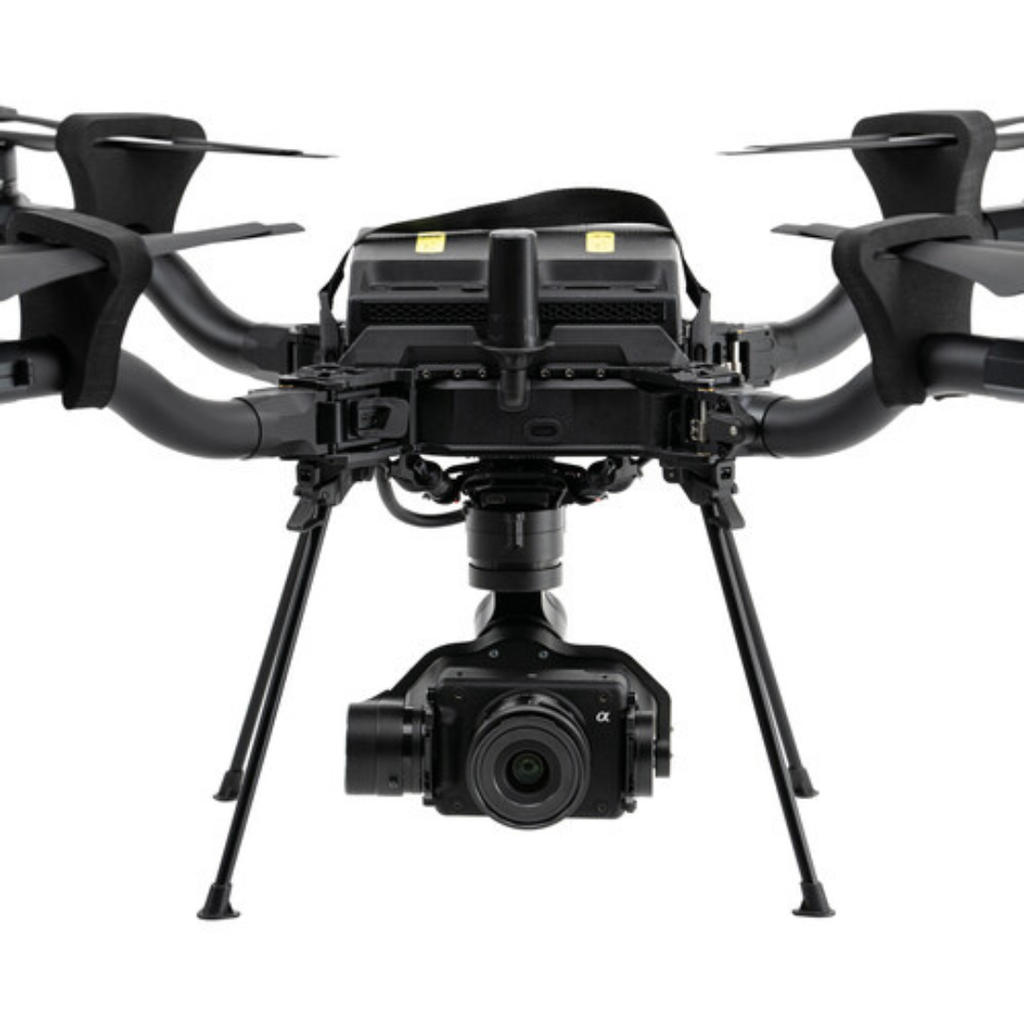

1 - Freefly Mapping Gimbal
1 - Sony ILX-LR1 Camera (pre-installed in gimbal)
1 - Sigma 24mm f3.5 Mapping Lens (p/n 404965)
1 - USB-C Thumb Drive
Specifications
- Ships in rugged travel case with room for 2 additional lenses
- Exterior: 13.125" x 11.375" x 5.5" / 33.34 x 28.89 x 13.97cm

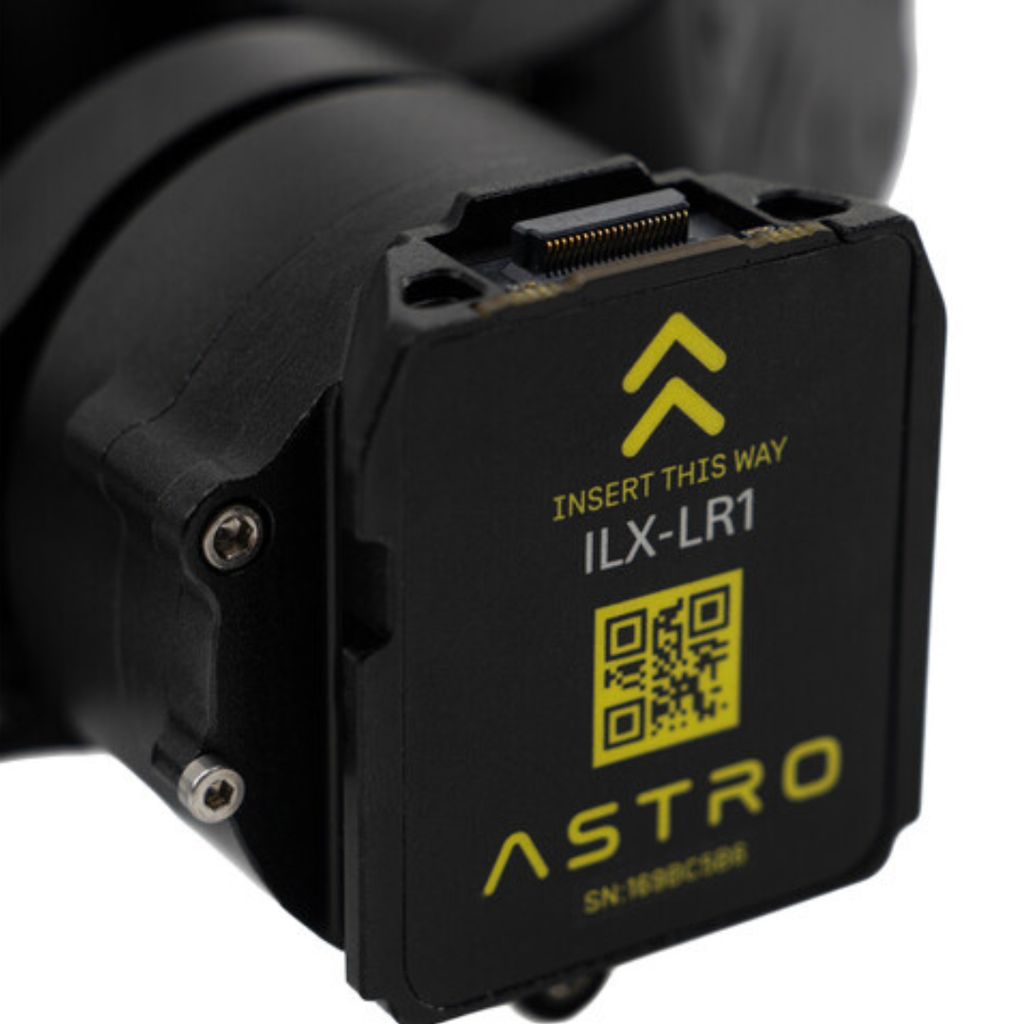

- Freefly Gimbal with Smart Dovetail Quick-Release
- Sony Sony ILX-LR1 camera body installed in gimbal (61 megapixel resolution)

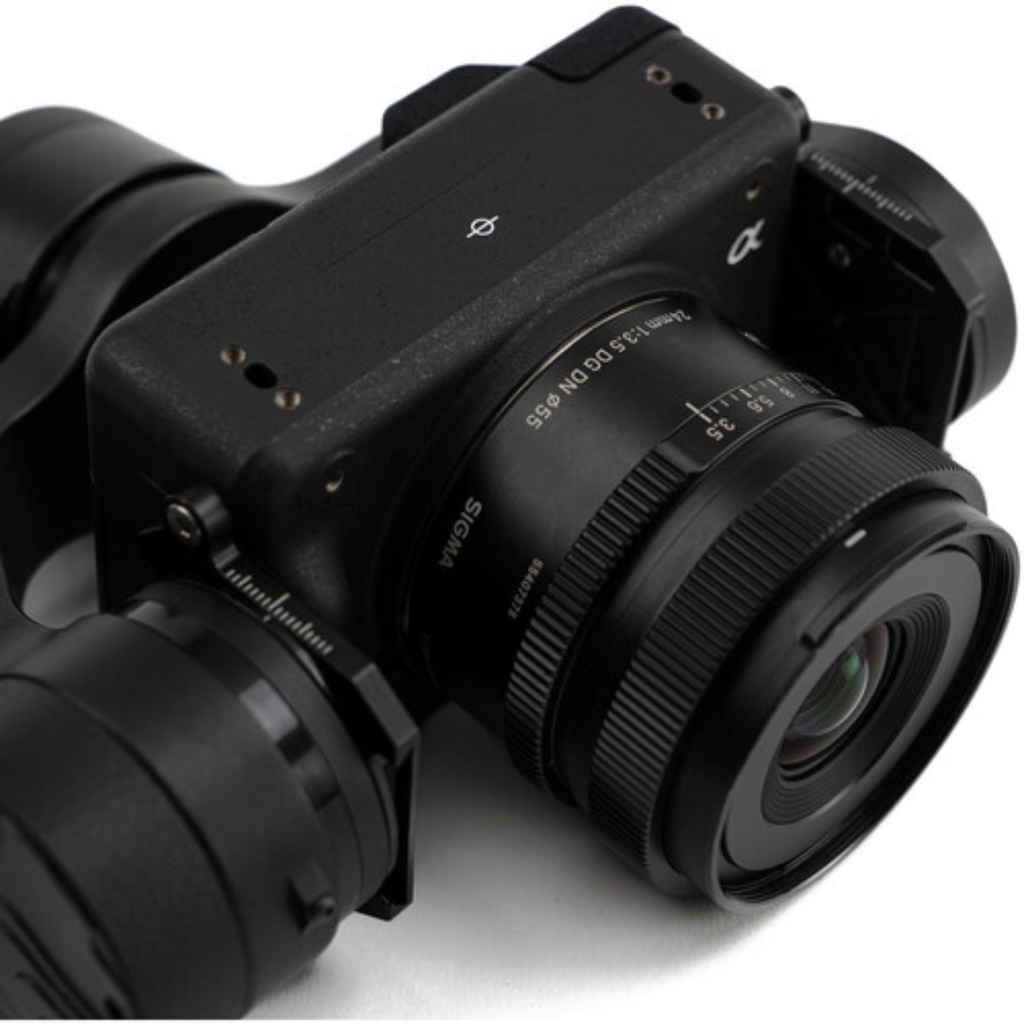

- Sigma 24mm f3.5 mapping lens (p/n 404965)
- Lightweight at only 970g / 34.2oz
- Camera and gimbal control from pilot controller (not included with payload, Pilot Pro controller ships with every new Astro)
- Typical Astro flights with Mapping Payload are 28-34 minutes (depending on speed / conditions / lens), per pair of batteries
- Three expansion ports for additional cameras/sensors/power
