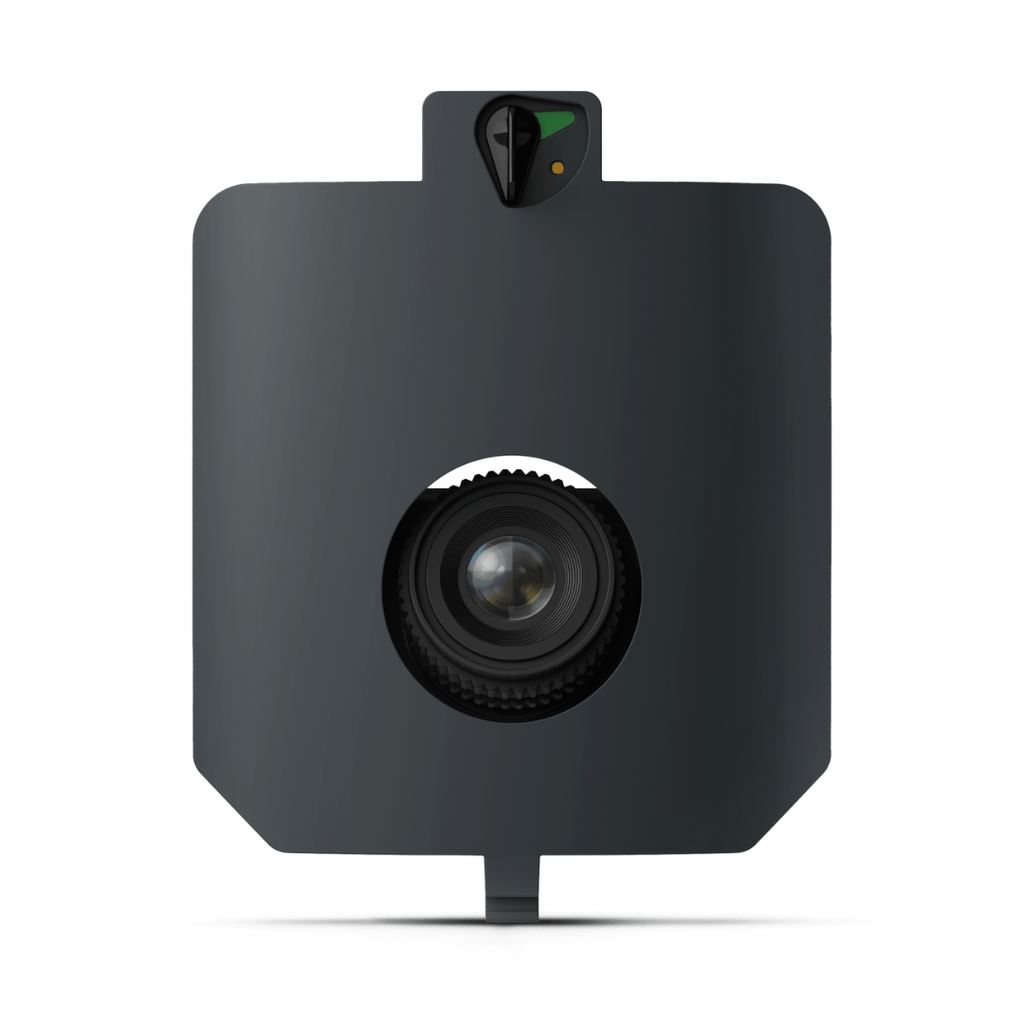

WingtraRAY MAP61 Payload

WingtraSKU: WING-WR-ADD-MAP61

Contact to Purchase:

Carbon-neutral shipping on all orders

Description

WingtraRAY integrates high-end compact sensors from Sony. They allow capture of the sharp images and fine details that are required for the most demanding aerial mapping applications. The WingtraRAY MAP61 Payload is Wingtra's most efficient mapping sensor, engineered for both large-scale 2D mapping and high-resolution 3D models.

Features

  • Full-frame sensor, wide-angle lens (17 mm), low oblique configuration
  • Lowest possible GSD:  1.2 cm/px at 54 m altitude
  • Absolute accuracy (RMS x, y, z) with PPK:  3cm
  • Max coverage at 120 m:  550 ha

High Quality, Swappable and Durable

  • Unwavering aerial image quality:  Thanks to their heavy payload capacity, the Wingtra drones carry the highest quality sensors on the market.

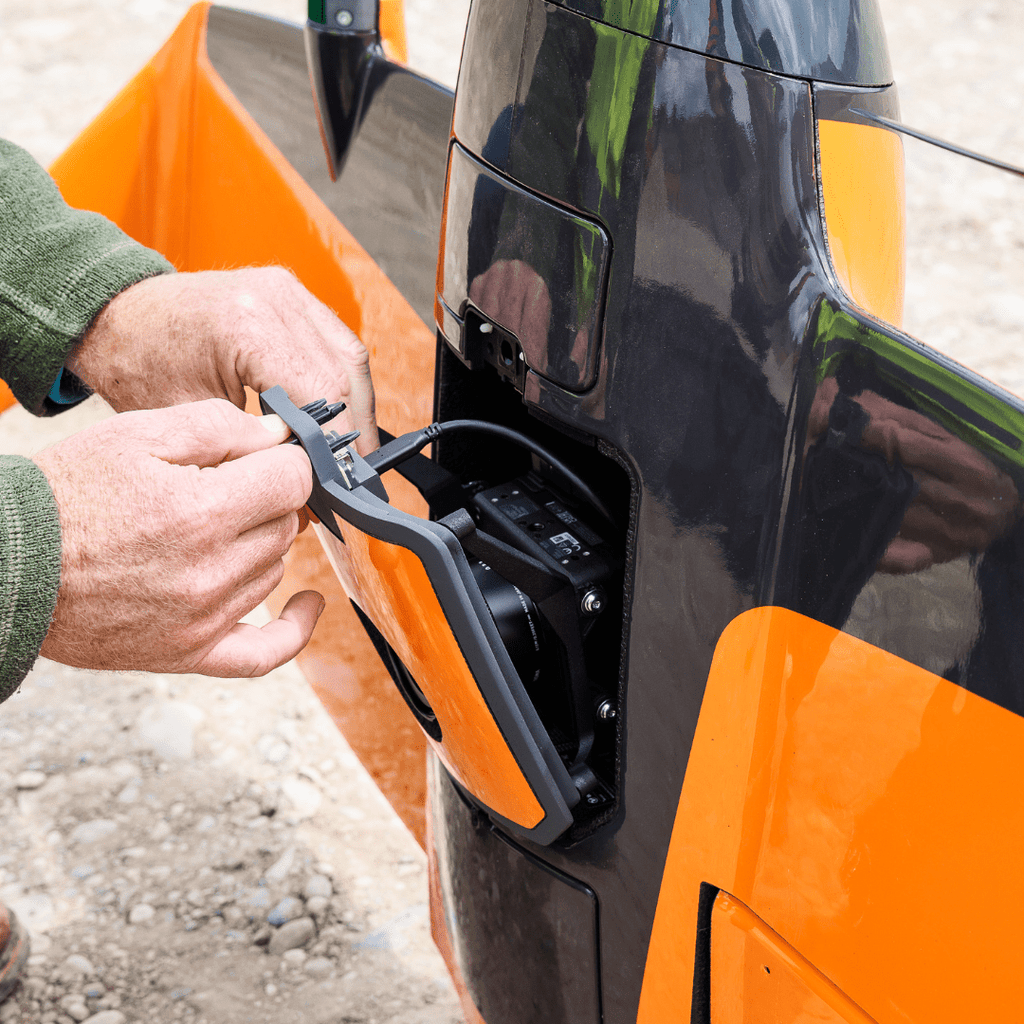

  • Keep a lean fleet:  Effortlessly switch between sensors, including high-resolution RGB cameras, multispectral sensors and advanced LIDAR, on the same drone platform.
  • Protected from landing shock:  Thanks to the smooth vertical landing, your high-quality sensors are always protected, even in rough environments, ensuring a longer lifespan.

Applications

  • Mining and Metals:  Ensure accurate exploration and effective reclamation strategies with precise terrain mapping.
  • Construction and Infrastructure:  Ensure project feasibility and optimal design with detailed greenfield surveys and precision earthwork planning.
  • Urban Planning and Land Management:  Drive informed planning and sustainable development with comprehensive greenfield surveys.
  • Environmental Monitoring:  Monitor environmental changes and simulate floods for more effective ecological management and planning.

The WingtraRAY MAP61 Payload - Most Efficient and Best 3D Capabilities

Compatibility

WingtraRAY

In the Box

1 - MAP 61 payload including mount for WingtraRAY
1 - Storage device

Specifications

Sensor 61 MP full frame, focal plane shutter
Lens / focal length 17 mm (0.67 in) wide-angle, 15° oblique
Field of view Horizontal 93° (-47°…+47°) • Vertical 70° (-20°…+50°)
Lowest GSD 1.2 cm/px (0.47 in/px) @ 180 ft (54 m)
Max coverage @ 400 ft* 460 ha (1,140 ac) @ 2.7 cm/px (1.06 in/px)
Max coverage @ lowest GSD* 200 ha (500 ac) @ 1.2 cm/px (0.47 in/px)
Accuracy (PPK, no GCPs) Horizontal 2 cm (0.8 in) • Vertical 4 cm (1.6 in) RMS
Pixel dimensions 9 504 × 6 336
Minimal trigger time 0.5 s • Min. trigger distance 8 m (26 ft)
Payload weight
(incl. mount)
585 g (1.29 lb)
Shutter type Focal-plane mechanical
Coverage assumptions 60 % side-overlap, calm conditions
