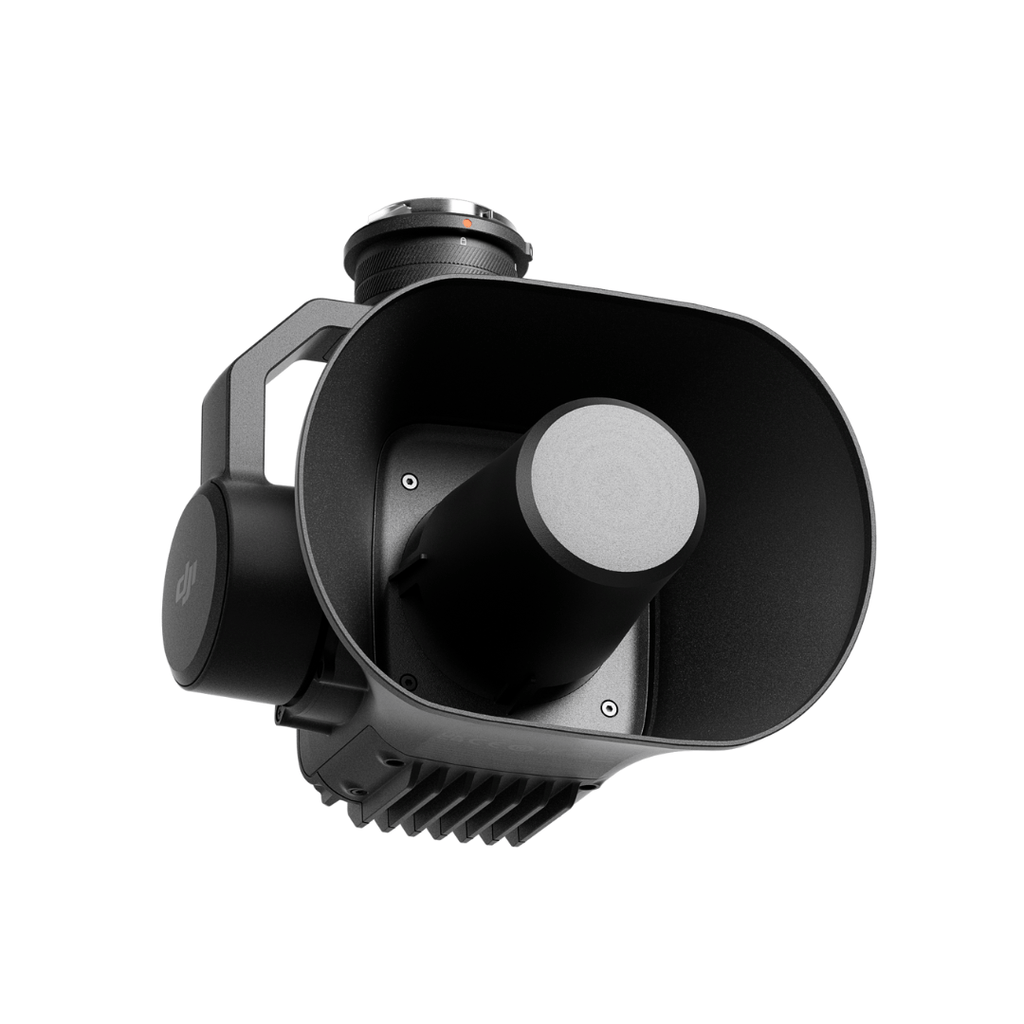

The Zenmuse V1 Speaker is DJI's first speaker designed for multi-payload drone platforms, compatible with DJI Matrice 350 RTK and Matrice 300 RTK. It boasts high volume and long broadcast distance, and supports multiple broadcast modes, making it ideal for scenarios like public safety, emergency rescue, and more.
Multiple Broadcast Modes
-
Record & Broadcast: Record and transmit messages to the speaker using the DJI Pilot 2 app. This feature includes local playback and recording storage. Recording a broadcast is instant and convenient, enabling rapid communication of important information in emergent scenarios without complex operations.
-
Text-to-Speech: Input text can be converted to speech via the DJI Pilot 2 app and transmitted to the speaker. This mode supports adjustments to tone and speech rate, as well as loop playback, ensuring that information is conveyed clearly and flexibly to the target audience.
-
Audio File Playback: The DJI Pilot 2 app supports the import of local audio files, which can then be transmitted to the speaker for playback. This allows for the quick dissemination of preset content during operations, enhancing efficiency and smoothness.
Powerful Sound, Extended Reach
At 1 meter, Zenmuse V1's maximum loudness can reach 127 decibels, on par with the sound level of a jet taking off. Powerful volume ensures clear communication. With an effective broadcast distance of up to 500 meters, it ensures coverage even in vast areas.
Clear, Directional Recording
During recording, DJI RC Plus can directionally capture voices directly above the microphone. Combined with environmental noise cancelling technology, it effectively minimizes surrounding noise interference, ensuring clearer recordings.
Precise Control, Targeted Broadcast
Zenmuse V1 can synchronize with other gimbal-equipped payloads to achieve coordinated tilt angles, ensuring that the sound is directed precisely towards the intended direction, thereby enhancing the broadcast efficiency.
Reliable and Intuitive
-
Payload Protection: Zenmuse V1 is equipped with multiple protection mechanisms for temperature, overcurrent, power, and more, enhancing the product's reliability and lifespan.
-
Hearing Protection: When the drone is not in flight and the volume exceeds 40%, the DJI Pilot 2 app will display a pop-up reminder to prevent discomfort to people nearby.
-
Strong Environmental Adaptability: With an IP54 rating for dust and water resistance, Zenmuse V1 can operate in ambient temperatures ranging from -20° to 50° C (-4° to 122° F), making it adaptable to various operating environments.
-
Efficient Remote Controller Shortcut: Zenmuse S1 supports customizable shortcut of the remote controller for one-press recording. Press once to start recording, and press again to play the recording, providing convenient operation to significantly improve the efficiency of on-site personnel.
Flexible Mounting, Lightweight Build
Zenmuse V1 can be mounted to any gimbal connector of the single downward gimbal, dual downward gimbals, or the single upward gimbal, accommodating various operational needs. Weighing only 0.69 kg, it is compact and easy to carry.
Mobile SDK
With the help of the Mobile SDK, users can quickly integrate the functions of the Zenmuse V1 into their self-developed mobile apps, allowing drone applications to penetrate business scenarios and improve operational efficiency.
Please note:
- Measured in a laboratory environment at 25° (77° F) . Actual conditions may vary slightly due to software version, audio source, specific environment, and other factors. The final effect is subject to actual use.
- Under controlled laboratory conditions, it can achieve an IP54 protection rating by IEC60529 standards. The IP rating is not permanently effective and may decrease due to product wear and tear.
- The net weight of Zenmuse V1 is 690 g±10 g, excluding the weight of the transport case.
Compatibility
DJI Matrice 350 RTK
DJI Matrice 300 RTK
In the Box
1 - DJI Zenmuse V1 Speaker
Specification
General
| Weight |
690 ± 10 g |
| Dimensions |
134 × 119 × 140 mm (L × W × H) |
| Rated Power |
30 W |
| Supported Aircraft |
Matrice 300 RTK (requires DJI RC Plus)
Matrice 350 RTK |
| Shell Temperature |
< 50 ° C (122 ° F, plastic shell)
Measured in a laboratory environment at 25 ° C (77 ° F) with the Zenmuse V1 installed on the aircraft.
|
| Ingress Protection (IP) Rating |
IP54
Under controlled laboratory conditions, the Zenmuse V1 can achieve an IP54 rating per IEC 60529. The IP rating is not permanently effective and may decrease over time due to product wear and tear.
|
Environment
| Operating Temperature |
‑20 ° C to 50 ° C (‑4 ° F to 122 ° F) |
| Storage Temperature |
‑20 ° C to 60 ° C (‑4 ° F to 140 ° F) |
Gimbal
| Stabilization System |
Single‑axis (tilt) |
| Angular Vibration Range |
Hover: ± 0.01°
Flight: ± 0.02° |
| Mounting |
Detachable DJI SkyPort |
Speaker
| Impedance |
4 Ω |
| Nominal Power |
25 W |
| Effective Broadcast Distance |
500 m
Measured in a laboratory environment at 25 ° C (77 ° F). Actual conditions may vary due to environmental factors; final performance is subject to actual use.
|
| Max Sound Pressure Level |
127 dB @ 1 m
Measured in a laboratory environment at 25 ° C (77 ° F). Actual conditions may vary due to environmental factors; final performance is subject to actual use.
|
| Effective Bandwidth |
800 Hz to 8 kHz |
Basic Features
| Record & Broadcast |
Record and broadcast with local playback and storage |
| Text‑to‑Speech |
Convert input text to speech (supports English and Mandarin Chinese) |
| Audio File Playback |
Import MP3, AAC, or WAV files for on‑demand broadcast |
| Playback Control |
Start/Stop recording, loop playback, volume adjustment |
| Remote Controller Button |
One‑press shortcut — press once to start recording, press again to stop and play |
| Gimbal Synchronization |
Supports synchronized control with other gimbal‑equipped payloads |
Special Features
| Directional Audio Recording |
Directional pickup via DJI RC Plus microphone with environmental noise reduction |
| Payload Protection |
Temperature, over‑current, and power protection safeguard the loudspeaker’s electronics |
