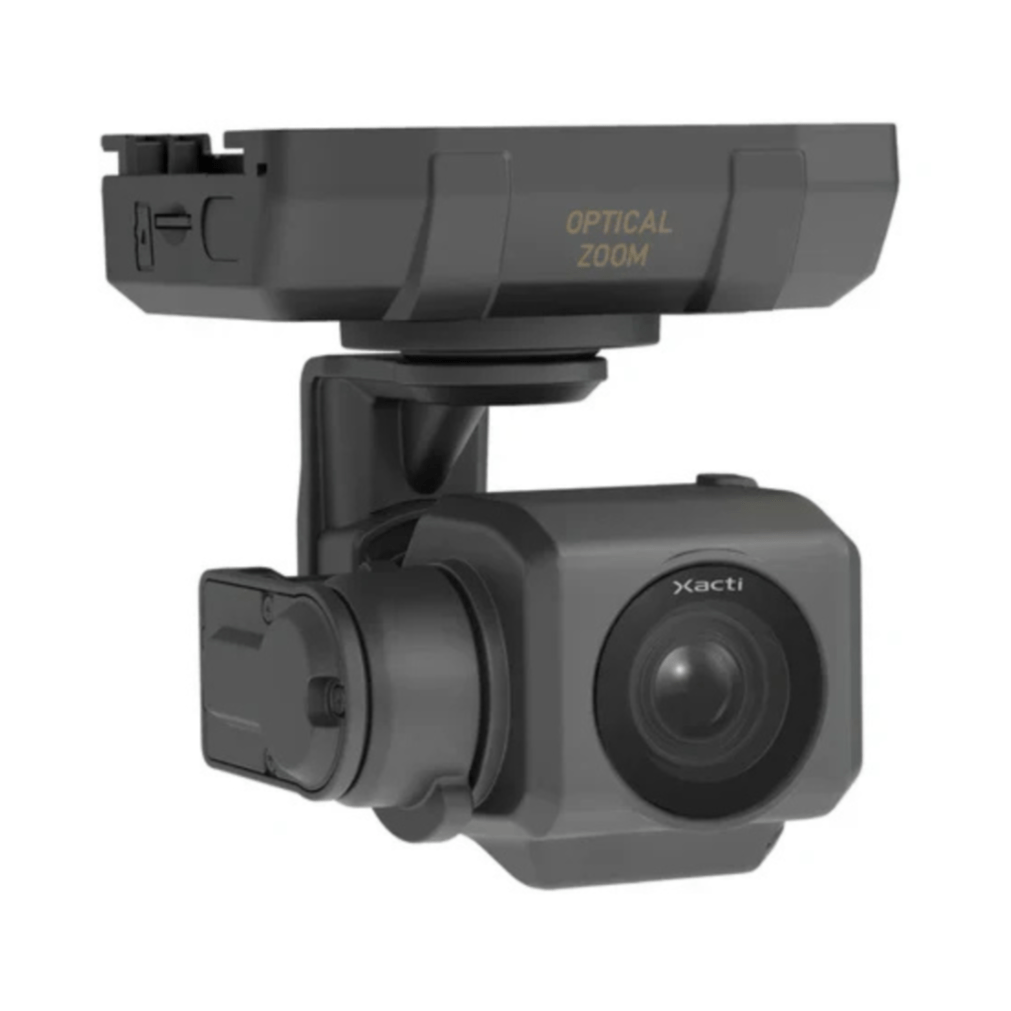

The ACSL SOTEN Optical Zoom Camera is a powerful and versatile payload designed exclusively for the ACSL SOTEN drone. Featuring a 2.5x optical zoom combined with 10x digital zoom for a total zoom range of 25x, this camera delivers exceptional detail whether you’re inspecting infrastructure up close or capturing subjects from a safe distance.
Built on the swappable SOTEN camera platform, it integrates seamlessly while maintaining the highest security standards, giving you confidence in every mission. With 20MP photo capture and 4K video recording, it’s the perfect tool for professional, field-ready operations.
Features:
- 2.5x optical zoom, 10x digital zoom, 25x total zoom for wide and close-up imagery
- 20MP resolution from 1/2.3" CMOS sensor with mechanical and electronic shutter
- Aperture range: f/2.0 (wide) to f/3.0 (telephoto)
- 4K video at 30fps, full HD streaming via UVC protocol
- Still image formats: JPEG, DNG, JPEG+DNG
- 3-axis gimbal with ±0.02° precision and rapid pan/tilt control
- Secure microSD storage (up to 512GB), encrypted via SOTEN system
- Fully swappable on ACSL SOTEN with no shutdown required
- Dust and water resistant to IP43 when mounted
- NDAA-compliant, ISO15408-certified, and field-proven
The ACSL SOTEN Optical Zoom Camera - Engineered for professionals who demand clear, adaptable zoom imaging in secure, mobile workflows.
Compatibility
ACSL SOTEN
In the Box
1 - ACSL SOTEN Optical Zoom Camera
Specifications
-
Image Sensor: 1/2.3-inch CMOS
-
Effective Pixels: 20MP
-
Lens FOV: HFOV 64°, VFOV 44°, DFOV 73° (Wide); HFOV 43°, VFOV 30°, DFOV 51° (Tele)
-
Focal Length (35mm Equivalent): 28mm (Wide) / 18-45mm (Zoom)
-
Aperture Range (F-Stop): Wide: f/2.0 / Tele: f/3.0
-
Mechanical Shutter Speed: 8 sec - 1/2000 sec
-
Electronic Shutter Speed: 8 sec - 1/8000 sec
-
ISO Sensitivity: Auto, 100-6400
-
Still Image Size: JPEG: 3600 × 2400 (9MP); DNG: 3616 × 2414 (9MP)
-
Still Image Format: JPEG, DNG, JPEG+DNG
-
Interval Shooting (Minimum Interval): JPEG: 2 sec; DNG: 5 sec
-
Video Resolution & Frame Rate: 4K (3840 × 2160) / 30p
-
Video Format: MOV / H.264
-
Streaming (UVC Protocol): MJPEG Full HD / 30p
-
Supported SD Cards: microSD (UHS Speed Class U3, Video Speed Class V30 or higher, up to 512GB)
-
Dimensions (mm): 78W × 87H × 72D
-
Weight: ~195g
-
Dust & Water Resistance: JIS C 0920 IP4X (IP43 when mounted on SOTEN drone)
-
Power Requirements: 12V, max power consumption 12W
-
Operating Conditions: Temperature: 0°C - 40°C; Humidity: 10% - 90%
-
Interfaces: USB (UVC / Control signals)
-
Connection: 10-pin pogo connector
-
Gimbal Control Axes: 3-axis stabilization (Pan, Tilt, Roll)
-
Minimum Control Angle: ±0.02°
-
Motion Range: Pan: ±90°; Tilt: -120° to +50°; Roll: ±30°
-
Operational Motion Range: Pan: ±85°; Tilt: -115° to +45°
-
Max Control Speed: Pan: 60°/s; Tilt & Roll: 100°/s
