The WingtraRAY LIDAR Payload combines efficiency, ease of use, and reliability to create exceptional digital terrain models, revealing terrain beneath vegetation.
Features
- Easy-to-use, precise and efficient
-
Point density: 110pt/m2
-
Absolute accuracy (RMS x, y, z) with PPK 2: 3cm
-
Max coverage at 90 m: 460ha
High Quality, Swappable and Durable
-
Unwavering aerial image quality: Thanks to their heavy payload capacity, the Wingtra drones carry the highest quality sensors on the market.
-

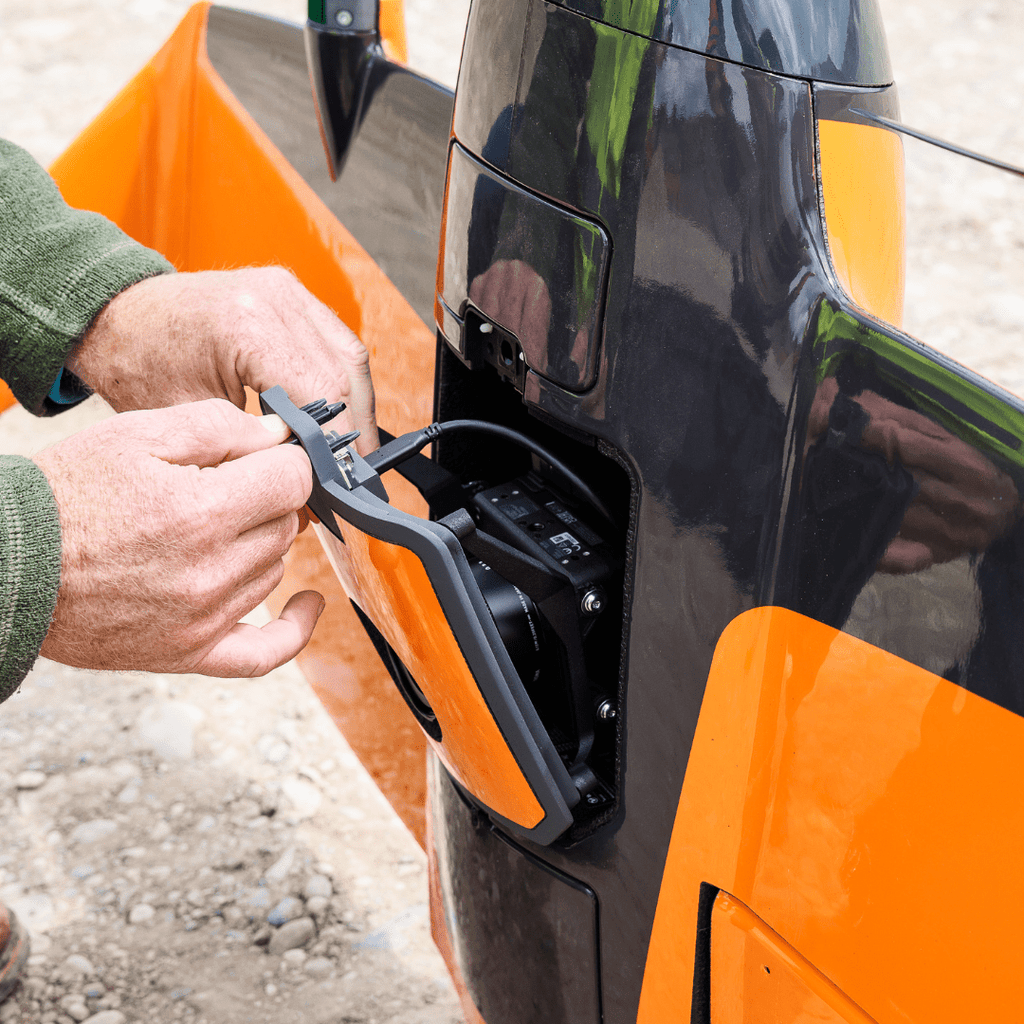

Keep a lean fleet: Effortlessly switch between sensors, including high-resolution RGB cameras, multispectral sensors and advanced LIDAR, on the same drone platform.
-
Protected from landing shock: Thanks to the smooth vertical landing, your high-quality sensors are always protected, even in rough environments, ensuring a longer lifespan.
Applications
- Mining and Metals: Ensure accurate exploration and effective reclamation strategies with precise terrain mapping.
- Construction and Infrastructure: Ensure project feasibility and optimal design with detailed greenfield surveys and precision earthwork planning.
- Urban Planning and Land Management: Drive informed planning and sustainable development with comprehensive greenfield surveys.
- Environmental Monitoring: Monitor environmental changes and simulate floods for more effective ecological management and planning.
The WingtraRAY LiDAR Payload - Easy-to-use, Precise and Efficient
Compatibility
WingtraRAY
In the Box

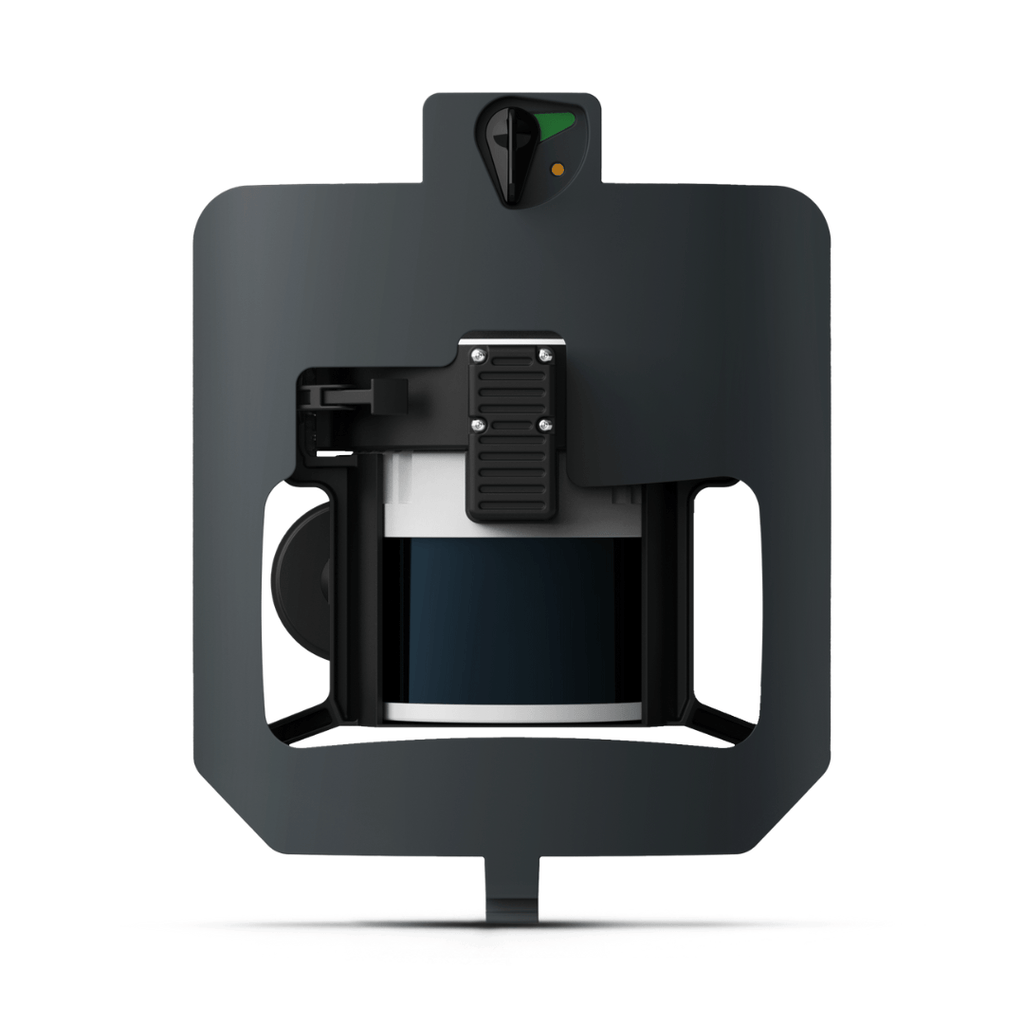

1 - LIDAR payload: Scanner, IMU, GNSS, Mount
1 - 256 GB storage device
1 - Payload case
1 Year LiDAR License
Specifications
| Scanner |
Hesai XT32M2X rotating sensor • 905 nm • ≤ 300 m range |
Payload weight
(incl. mount) |
1 060 g (2.34 lb) |
| Point density @ 150 ft (45 m) |
110 pts/m² (single) — up to 660 pts/m² (triple)* |
| Point density @ 300 ft (90 m) |
110 pts/m² (hard surface) — up to 330 pts/m² (triple) |
| Point density @ 400 ft (120 m) |
84 pts/m² (hard surface) — up to 252 pts/m² (triple) |
| Coverage with PRS* |
150 ft: 220 ha (545 ac) • 300 ft: 415 ha (1 025 ac) |
| Coverage w/o PRS* |
150 ft: 245 ha (605 ac) • 300 ft: 460 ha (1 140 ac) |
| Vertical accuracy (RMS) |
≤ 3 cm (1.2 in) @ 300 ft |
| IMU |
Inertial Labs tactical-grade (0.006° roll/pitch) |
| Outputs |
Corrected LAS / LAZ point clouds via Wingtra LiDAR App |
| Assumptions |
30 % side-overlap, calm conditions |
