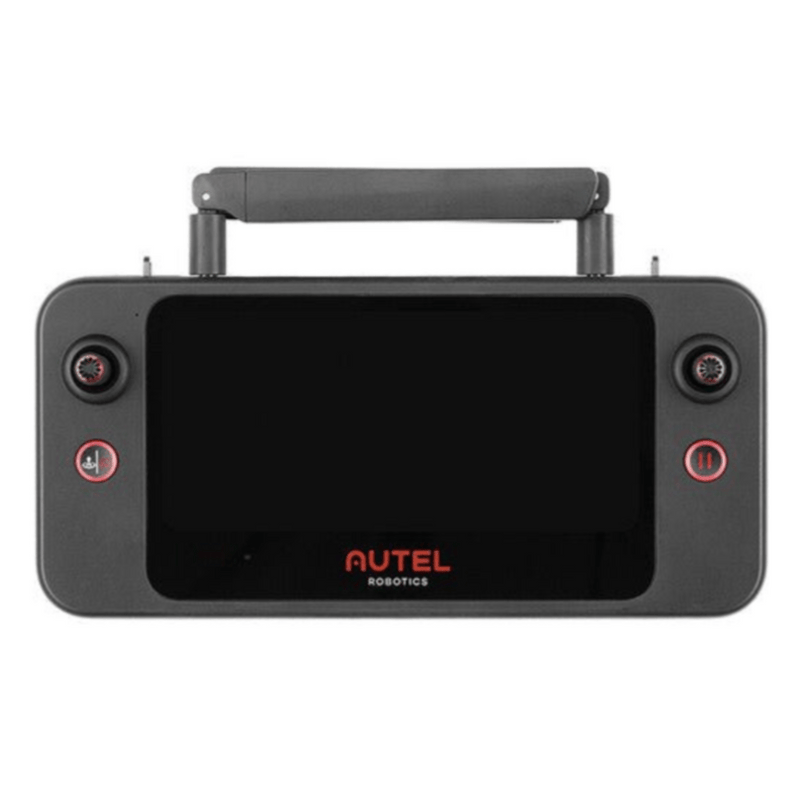

The Autel Smart Controller SE V3 comes with an 6.4-inch OLED touch screen and latest gen 8-core processor for HD image transmission. SkyLink 2.0 Transmission technology guarantees long-distance operations from up to 15km away and enhances anti-interference abilities with triple-band frequency hopping. The customized Android system allows for additional flexibility with 3rd party apps and an IP43 rating ensures all weather performance.
Key Features
- 6.4-Inch OLED Screen
- 8-Core Processor
- 4-Hour Long Battery Life
- Removable Battery
- 15km Transmission Range
- -10℃ to 40℃ Operating Temperature
Supported Aircrafts
- EVO II Pro V3
- EVO II Dual 640T V3
- EVO II RTK Series V3
- EVO II Enterprise V3
High Resolution OLED Screen
The Smart Controller SE comes with an 6.4" OLED 2340x1080 touch screen with exceptional touch sensitivity. The OLED's high contrast and 800 nit brightness makes the Smart Controller SE readable in most daylight conditions.
SkyLink 2.0 Transmission Technology
Autel Smart Controller SE uses Autel's latest SkyLink 2.0 transmission technology, capable of QHD video within 1km and HD video up to 15km away. SkyLink 2.0 utilizes triple frequencies of 5.8Ghz, 2.4Ghz, and 900 Mhz for enhanced anti interference capabilities in urban environments.
High Performance Hardware
Featuring Qualcomm 8-core processor, the Smart Controller SE comes with stronger computing capability while lowering power consumption. It is capable of decoding 4K videos and processing audios in high-fidelity. The supporting of Wi-Fi 5 protocol enables it to download third-party applications real fast.
3rd Party App Support
Smart Controller SE's Android system allows for the installation and customization of 3rd party apps.
Livestream
Smart Controller SE supports livestreaming to a local monitor via the HDMI port or through 3rd party apps downloads.
Swift Charging and Removable Battery
Get up to 4 hours of nonstop operation thanks to improved processing efficiency. The Smart Controller SE shortens charging time to 1.5 hours and supports quick battery swaps between missions.
Weather Sealed and Temperature Tolerant
Autel Smart Controller SE has an IP43 against dust and light rain. An operating temperature between -10c to 40c enhances reliablity of the Smart Controller SE in all seasons.
Lightweight and Portable
Coming in at 617g, the Smart Controller SE is light enough for all day carrying and removable joysticks are conveniently stowed in the backside for easy access.
Enhanced Connectivity
Autel Smart Controller SE comes with SMA compatible connectors, which allows for quick replacements or 3rd party upgrades.
Muti-Ports
HDMI, quick removable SD card, and USB-C ports solve all your broadcasting, charging, and transfer needs.
Compatibility
- EVO II Pro V3
- EVO II Dual 640T V3
- EVO II RTK Series V3
- EVO II Enterprise V3
In the Box
1 - 6.4" Smart Controller
1 - USB - C Controller Charging Cord
1 - Charging Brick
2 - Controller Sticks (pair)
1 - Smart Controller Hanging Neck Strap
1 - Controller Antenna (pair)
Specifications
| Operating Frequency |
902-928MHz (FCC Only)
2.400-2.4835GHz
5.725-5.850GHz (non-Japan)
5.650-5.755GHz (Japan Only) |
| Max Transmission Distance (unobstructed, free of interference) |
FCC：15km
CE：8km |
| Supported Aircrafts |
EVO II Pro V3
EVO II Dual 640T V3
EVO II RTK Series V3
EVO II Enterprise V3 |
| Display screen |
2340x1080 60fps |
| Max Brightness |
800nits |
| Dimensions |
226.3×137.7×31.5mm (antennas folded)
226.3×215.4×31.5mm (antennas unfolded) |
| Weight |
617g |
| Battery |
1900mAh |
| Operating time |
~2 hours (Max. Brightness)
~4 hours (50% Brightness) |
| Charging time |
90 minutes |
| Internal Storage |
ROM 128GB + expandable storage via micro-SD card |
| Operating Temperature |
-10℃ to 40℃ (14℉ to 104℉) |
| Ingress Protection |
IP43 |
