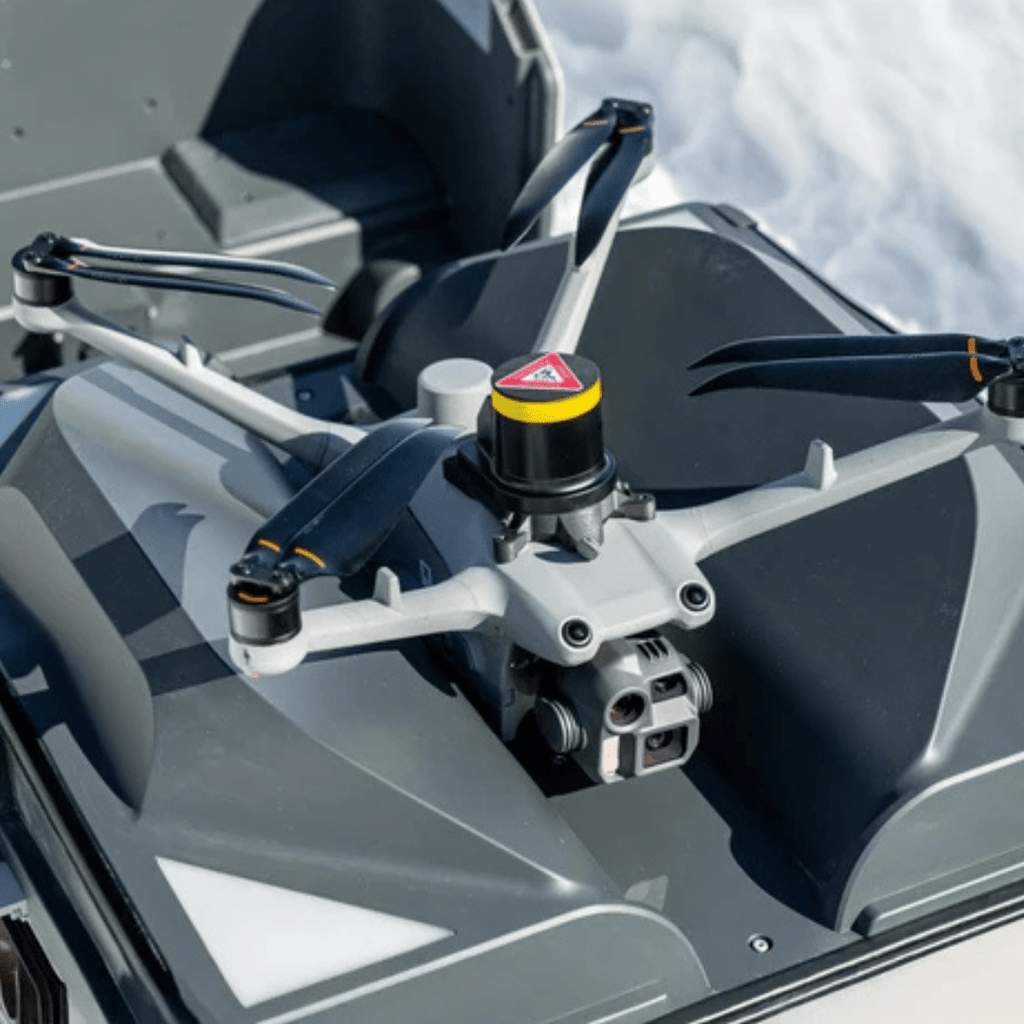

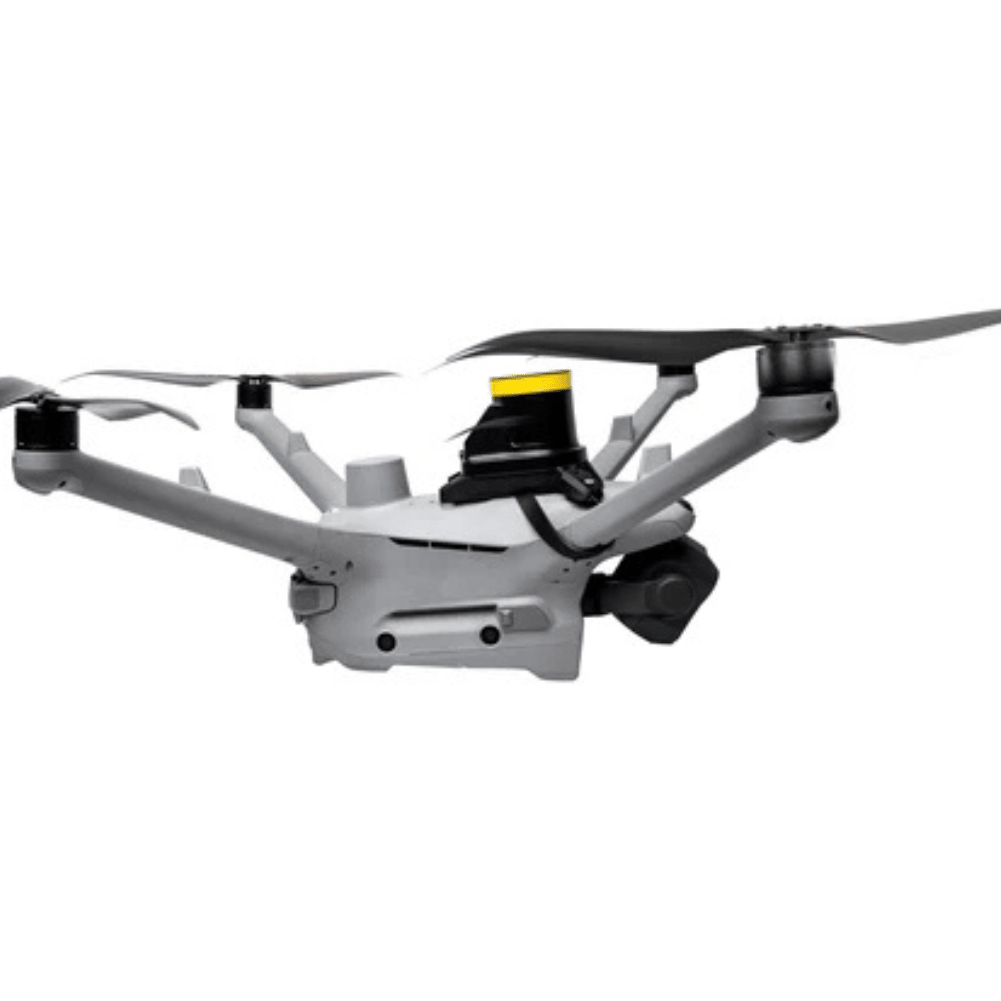

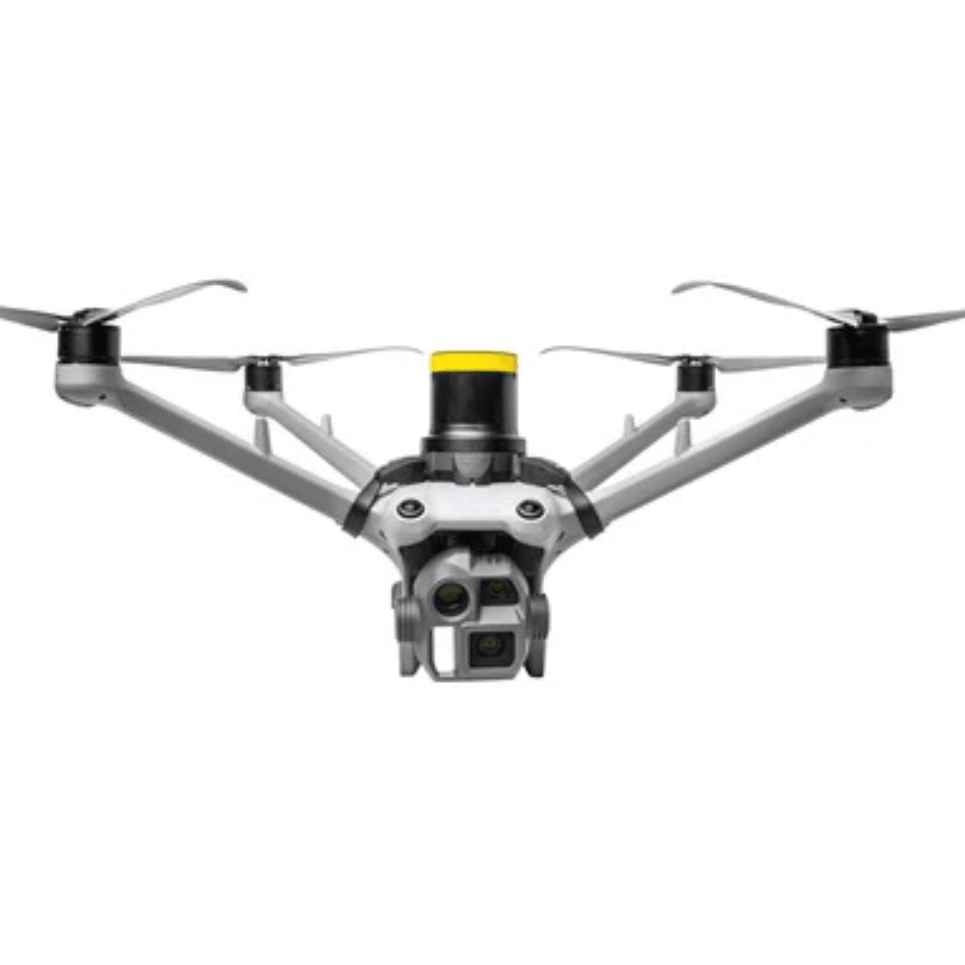

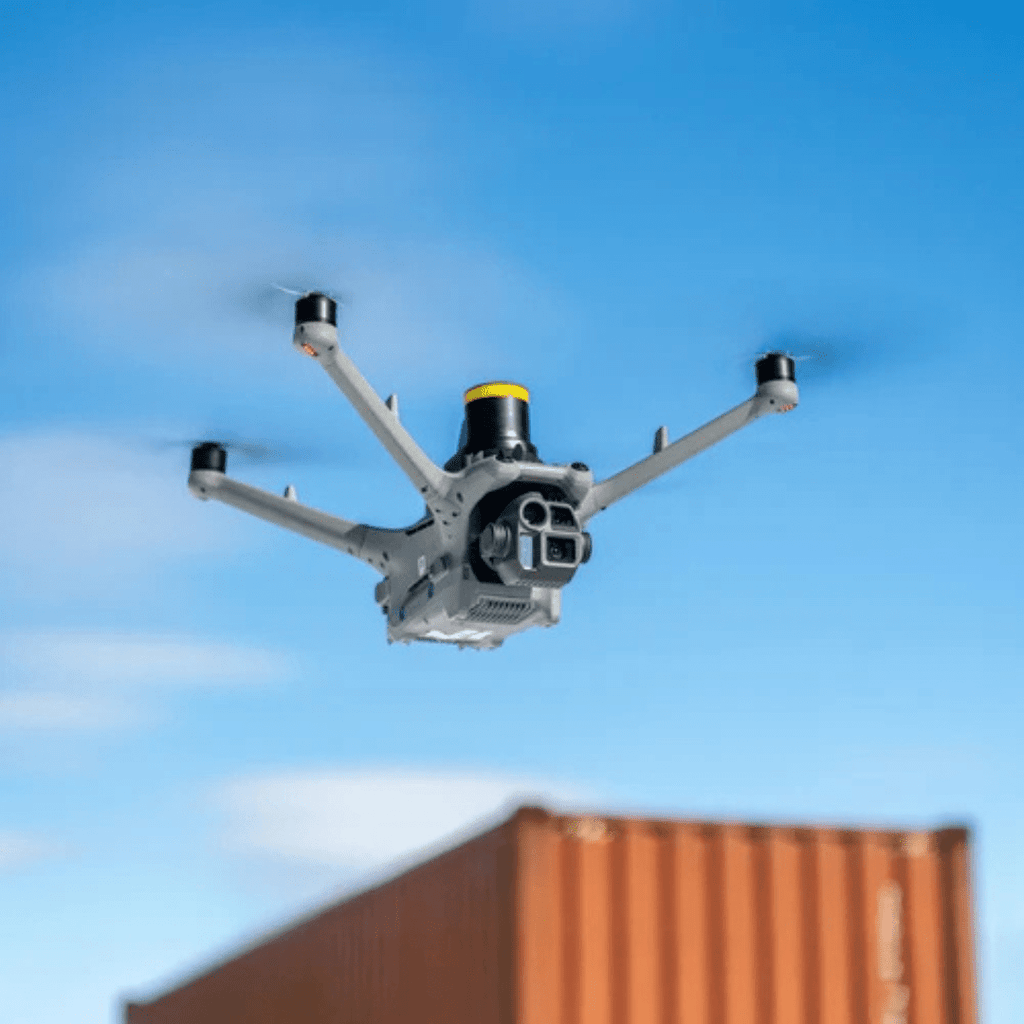

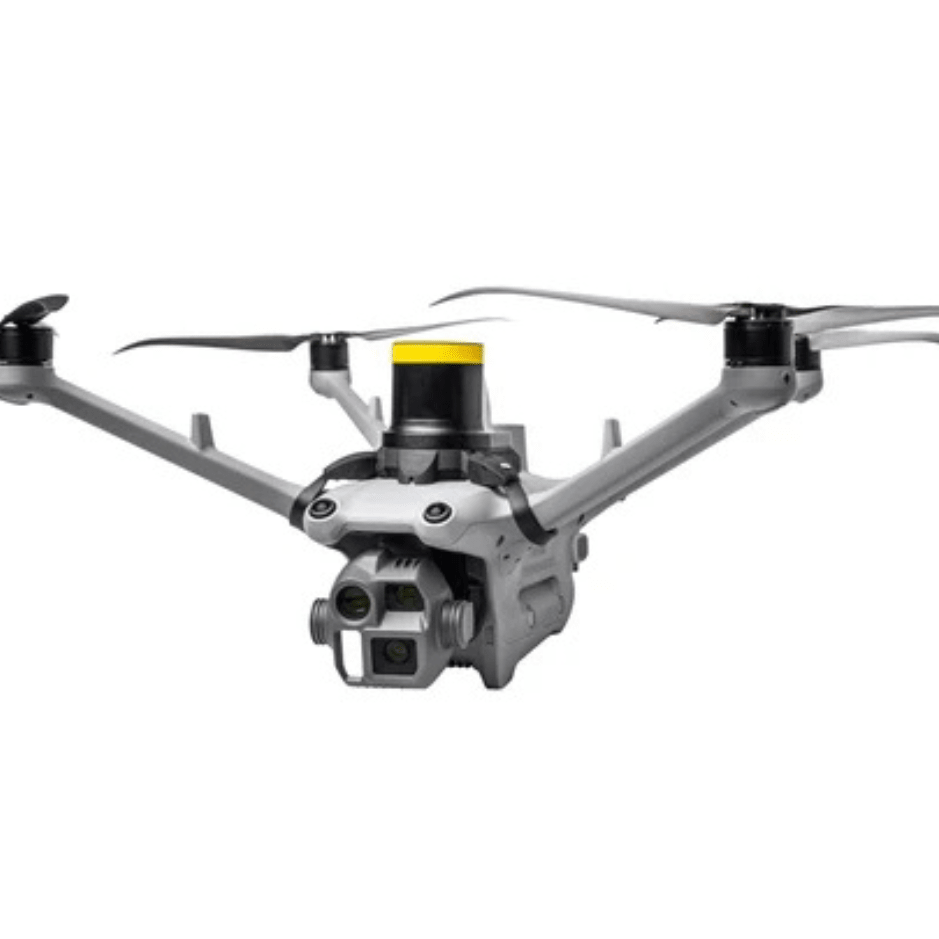

AVSS Parachute Recovery System for DJI Matrice 4TD/4D

The AVSS PRS-M4DT for DJI Matrice 4TD/4D is an integrated Parachute Recovery System (PRS) designed to support regulatory compliance for enterprise drone operations. The system is designed to support FAA Operations Over People Category 2 and Category 3 and Transport Canada Over People rules.

Features:

• Automatic Deployment:  Less than 0.5-second automatic deployment
• Manual Deployment:  Manual deployment through the PSDK
• Plug-and-Play Design:  Plug-and-play flight termination system with an option for 0 meter/feet deployment
• Independent Deployment:  Independent deployment through geofence
• Standards & Documentation:  ASTM F3322-24a and third-party documentation relevant to Civil Aviation Authorities

Aircraft not included

Compatibility

DJI Matrice 4D
DJI Matrice 4TD

In the Box

1 - Parachute Pod™
1 - Electronic module
1 - Flight termination system – PSDK
1 - Autonomous triggering System
1 - Attachment bracket
1 - Electronic module batteries
1 - CAA, ASTM F3322 documentation

Specifications

PRS-M4DT

• Total weight:  215 grams / 0.47 lbs (+/- 5 grams)
• Average descent rate:  2.92 mps / 9.58 fps
• Average impact energy:  8.82 J / 6.51 ft-lb
• Deployment technology:  Energetic
• Deployment trigger:  Manual and/or autonomous
• Flight termination system:  Yes
• Manual triggering device:  Yes
• Manufacturers Warranty:  1 year

Note: Expected performance metrics. Depending on the Civil Aviation Authority data collection and analysis requirements, performance metrics may require different calculation methods.
