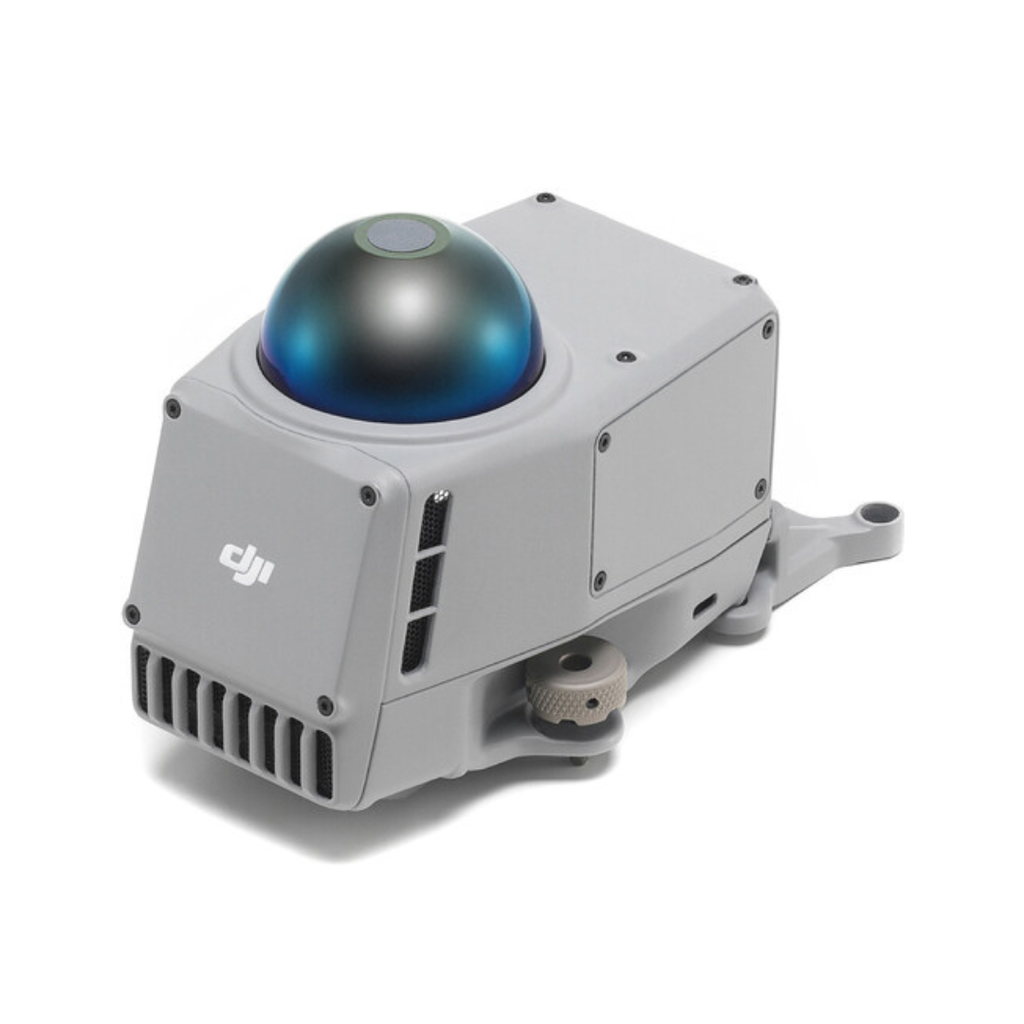

DJI Matrice 4 Obstacle Sensing Module

DJISKU: CP.EN.00000648.01

Price:
Sale price$2,230.00

Shipping calculated at checkout

Stock:
Sold out
Volatus Protect
Powered by CPS Warranties
What's Covered?
Crash & Impact OEM Parts Free Roundtrip Shipping
Carbon-neutral shipping on all orders

Description

The DJI Matrice 4D Series Obstacle Sensing Module is optional LiDAR-based accessory that helps detect wires or obstacles up to 12 mm thick at speeds of up to 15 m/s, offering horizontal and upward avoidance for enhanced flight safety. The module utilizes a rotating LiDAR and five-direction millimeter-wave radar to enable safe operation near power lines, substations, and other complex locations while providing comprehensive omnidirectional obstacle detection.

Compatibility

DJI Matrice 4D
DJI Matrice 4T
DJI Matrice 4TD

In the Box

1 - DJI Obstacle Sensing Module for Matrice 4

Specifications

Weight: 235 g (8.29 oz)

Dimensions (L × W × H): 103.3 × 64 × 85.8 mm (4.07 × 2.52 × 3.38 in)

Sensing System: Rotating LiDAR and five-direction millimeter-wave radar

LiDAR Field of View: 360° horizontal, 58° vertical

Millimeter-Wave Radar Field of View: 90° horizontal, 90° vertical

Maximum Detection Distance: 100 m (328.1 ft)

Effective Sensing Speed: Flight speed ≤ 15 m/s (49.2 ft/s), for 12 mm steel-core aluminum stranded wire

Operating Temperature: −20°C to 50°C (−4°F to 122°F)

Ingress Protection Rating: IP55 (with Matrice 4D Series)
