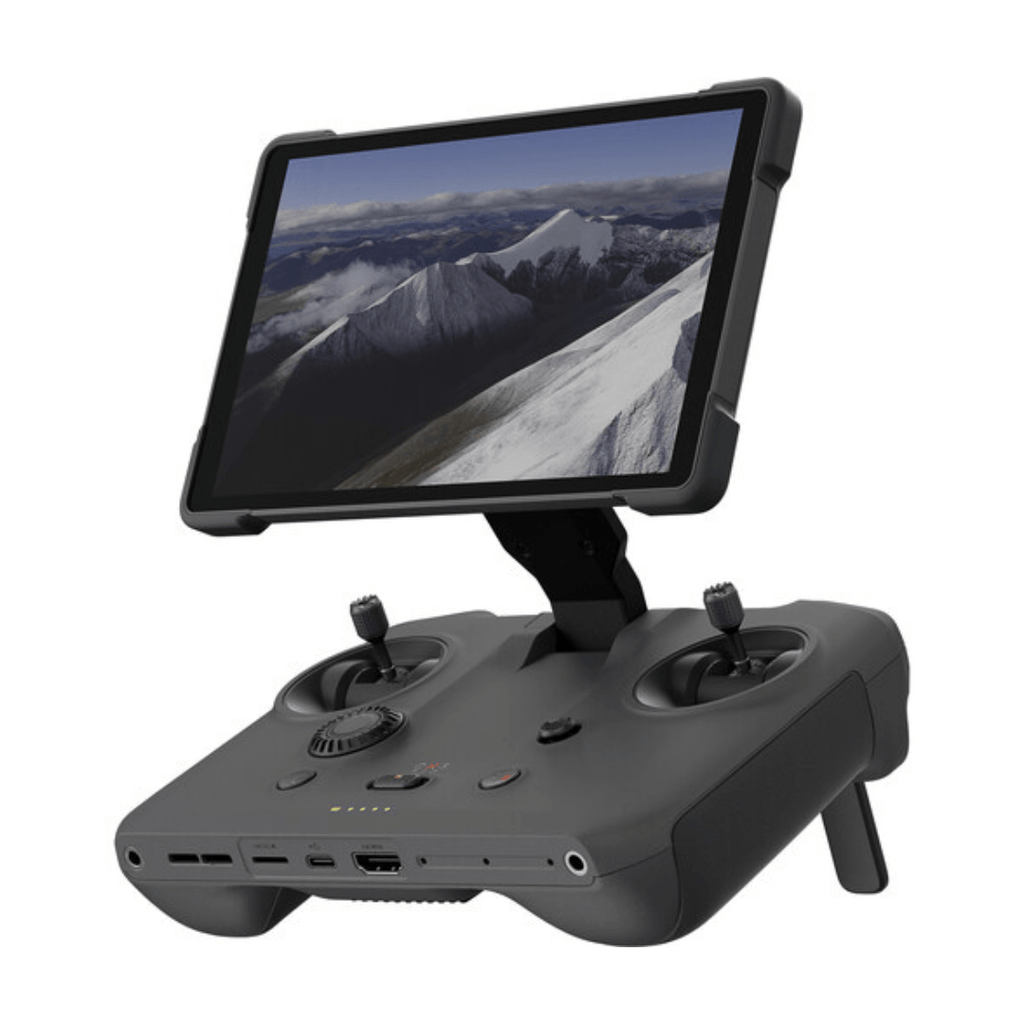

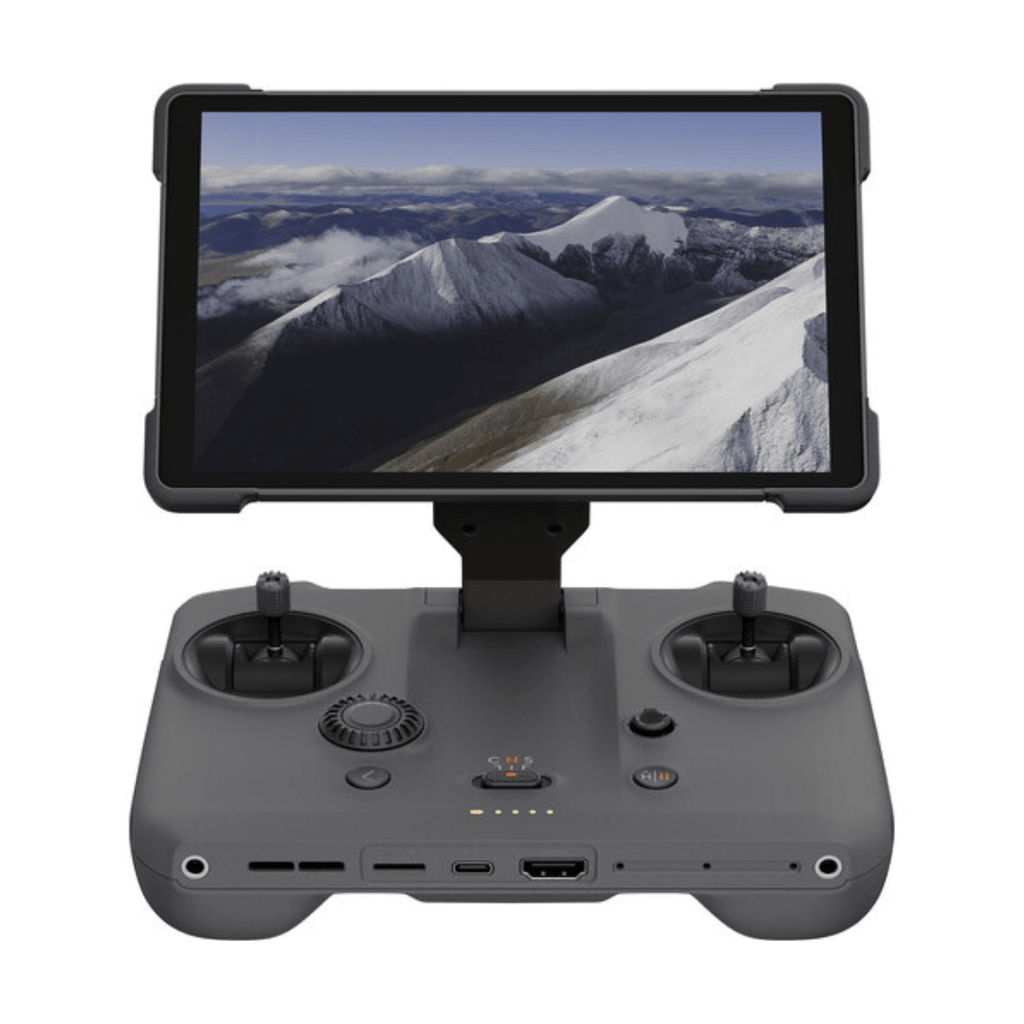

DJI RC Pro 2 Remote Controller puts professional-grade aerial filmmaking at your fingertips. Its powerful 7-inch high-bright Mini-LED display delivers stunning visuals, while the rotatable screen instantly syncs with the drone’s gimbal for vertical shooting. An enterprise-level multibeam high-gain antenna ensures ultra-reliable video transmission.
With its integrated, collapsible design, the RC Pro 2 powers on when extended and automatically deploys its control sticks so you can start creating instantly. Plus, capture high-quality audio with the built-in mic, or connect directly to the DJI Mic series.
Features
- Supports Wi-Fi 6 (802.11ax)
- Up to 4 hours of battery life
- Built-in mic to record audio
- HDMI video-only out to an optional external monitor

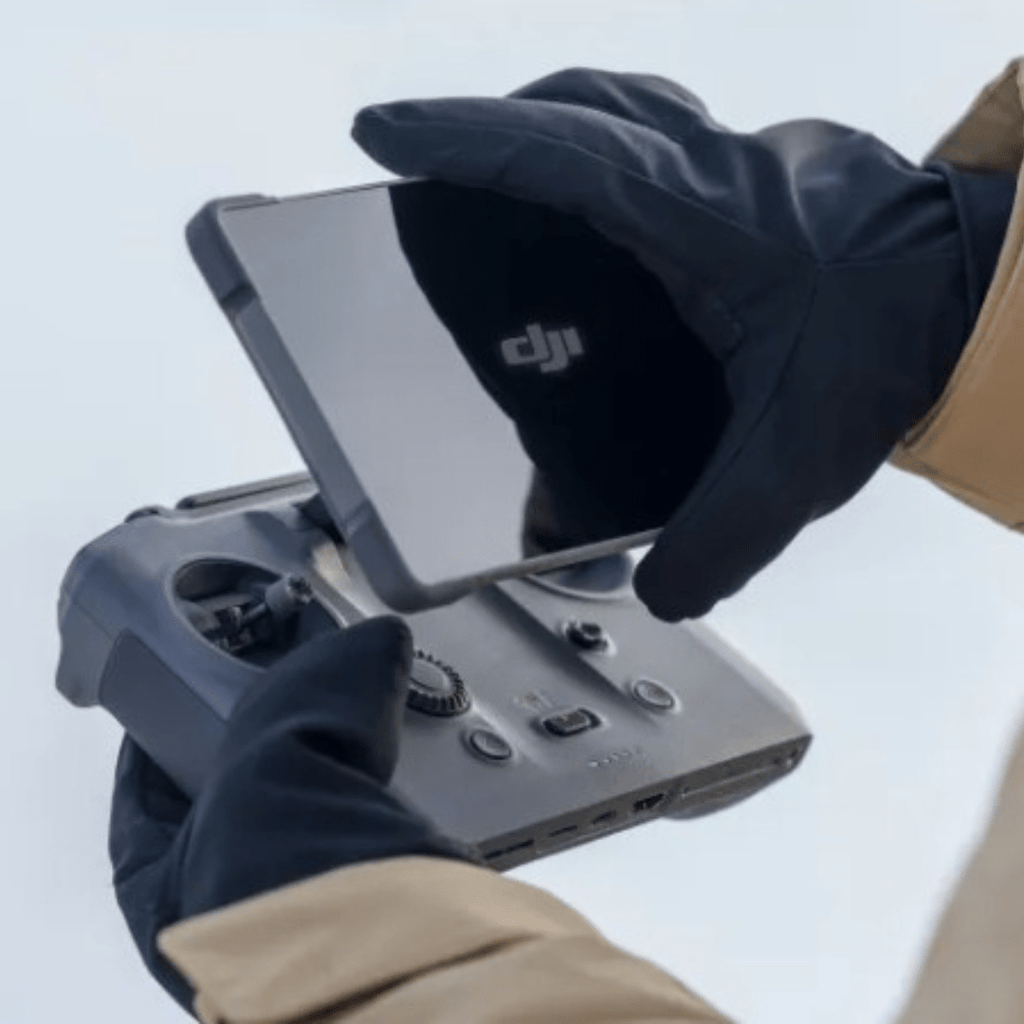

- Dial and five-dimensional buttons allow easy thumb control, even with gloves
- GPS, BeiDou, and Galileo GNSS support
- 128GB of built-in storage
- Expand storage with an optional microSD up to 64GB in size
- Supports third-party apps for livestreaming and quick editing
From design to experience, DJI RC Pro 2 is the ultimate companion for DJI camera drones.
Compatibility
DJI Air 3S
DJI Mavic 4 Pro
DJI Mini 4 Pro
In the Box
1 - DJI RC Pro 2 Remote Controller
Specifications
Display
| Panel Type |
LCD
|
| Display Size |
7.02"
|
| Native Resolution |
1920 x 1200
|
| Touchscreen |
Yes
|
| Maximum Brightness |
2000 nits / cd/m2
|
| Touch Screen |
10-Point Multi-Touch
|
| Frame Rate |
60 FPS
|
Inputs/Outputs
| Video I/O |
1x HDMI Output ( Video Only )
|
| Media/Memory Card Slot |
Single Slot: microSD/microSDHC/microSDXC (UHS-I) [64 GB Maximum / U3/V30 or Faster Recommended]
|
| Internal Storage |
128 GB
|
Wireless
| Wireless |
2.4 GHz Radio/RF / 5.1 GHz Radio/RF / 5.8 GHz Radio/RF / Wi-Fi 6 (802.11ax) / Bluetooth 5.2
|
| Mobile App Compatible |
No
|
| Global Positioning (GPS, GLONASS, etc.) |
BeiDou, Galileo, GPS
|
| Transmission |
System: O4/O4+
Operating Frequency: 2.4000 to 2.4835 GHz, 5.170 to 5.250 GHz, and 5.725 to 5.850 GHz
Antenna: Enterprise-Level Multibeam High-Gain, 2T4R
Transmitter Power (EIRP) (2.4 GHz): <33 dBm (FCC), <20 dBm (CE, SRRC, MIC)
Transmitter Power (EIRP) (5.1 GHz): <23 dBm (CE)
Transmitter Power (EIRP) (5.8 GHz): <33 dBm (FCC), <14 dBm (CE), <30 dBm (SRRC)
|
| Wi-Fi |
Operating Frequency (2.4 GHz): 2.4000 to 2.4835 GHz
Operating Frequency (5.1 GHz): 5.150 to 5.250 GHz
Operating Frequency (5.8 GHz): 5.725 to 5.850 GHz
Transmitter Power (EIRP) (2.4 GHz): <26 dBm (FCC), <20 dBm (CE, SRRC, MIC)
Transmitter Power (EIRP) (5.1 GHz): <23 dBm (FCC, CE, SRRC, MIC)
Transmitter Power (EIRP) (5.8 GHz): <23 dBm (FCC, SRRC), <14 dBm (CE)
|
| Bluetooth |
Operating Frequency: 2.400 to 2.4835 GHz
Transmitter Power (EIRP): <10 dBm
|
Battery
| Battery Chemistry |
Lithium-Ion
|
| Battery Capacity |
6200 mAh / 44.64 Wh
|
| Recharge Time |
1.5 Hours
|
| Maximum Battery Life |
4 Hours
|
Physical
| Operating Conditions |
14 to 104°F / -10 to 40°C
|
| Storage Conditions |
-22 to 140°F / -30 to 60°C
|
| Dimensions |
7.2 x 5.5 x 2.4" / 182 x 139 x 61 mm (Folded)
|
| Weight |
1.7 lb / 750 g
|
