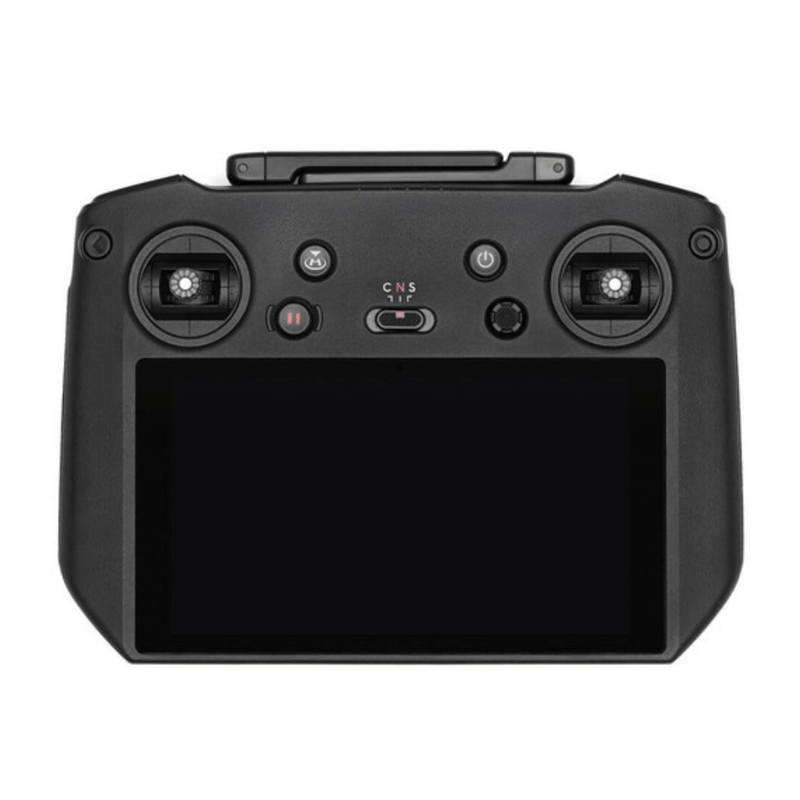

DJI RC Pro Enterprise Controller

The DJI RC Pro Enterprise Remote Controller is a high-performance device that features advanced technology and precision engineering, providing users with unmatched control and stability.

The RC Pro Enterprise features a 5.5-inch screen with 1080p resolution, a built-in speaker and microphone, and a customizable button layout. Additionally, the RC can be connected to the DJI Smart Controller Enterprise or a mobile device via HDMI or USB-C.

Whether your mission is inspection, search & rescue, or security, the DJI RC Pro Enterprise will get the job done efficiently and safely.

Compatibility

• DJI Matrice 3D/3TD
• DJI Mavic 3E
• DJI Mavic 3T
• DJI Mavic 3M

In the Box

• DJI RC Pro Remote Controller
• Control Sticks (Pair)

Does not include charging cables.

Specifications

Video Transmission

• Video Transmission System:  O3+

• Max Transmission Distance (unobstructed, free of interference):  15 km (FCC); 8 km (CE/SRRC/MIC)

• Operating Frequency:

  • 2.400-2.4835 GHz

  • 5.725-5.850 GHz

• Antennas:  4 Antennas, 2T4R

• Transmitter Power (EIRP):

  • 2.4 GHz: ≤33 dBm (FCC); ≤20 dBm (CE/SRRC/MIC)

  • 5.8 GHz: ≤33 dBm (FCC); ≤14 dBm (CE); ≤23 dBm (SRRC)

Wi-Fi

• Protocol:  802.11a/b/g/n/ac/ax Support 2×2 MIMO Wi-Fi

• Operating Frequency:  2.400GHz-2.4835 GHz; 5.725-5.850 GHz

• Transmitter Power (EIRP): .4 GHz: ≤26 dBm (FCC); ≤20 dBm (CE/SRRC/MIC)5.8 GHz: ≤26 dBm (FCC/SRRC); ≤14 dBm (CE)

Bluetooth:

• Protocol:  Bluetooth 5.1

• Operating Frequency:  2.400-2.4835 GHz

• Transmitter Power (EIRP):  ≤8 dbm

Screen:

• Resolution:  1920×1080

• Dimensions:  5.5 inches

• Frame Rate:  60 fps

• Brightness:  1000 nits

• Touch Control:  10-point multi-touch

General Specs:

• Battery:  Li-ion (5000 mAh @ 7.2 V)

• Charging Type:  Recommended to be charged with USB charger at 12 V or 15 V

• Rated Power:  12 W

• Storage Capacity:  32GB internal + expandable storage via microSD card

• Charging Time:  2 hours (with USB charger at 12 V), 1.5 hours (with USB charger at 15 V)

• Operating Time:  3 hours

• Video Output Port:  Mini-HDMI port

• Operating Temperature:  -10° to 40°C (14° to 104° F)

• Storage Temperature Range:  Less than one month: -30° to 60° C (-22° to 140° F) One to three months: -30° to 45° C (-22° to 113° F) Three to six months: -30° to 35° C (-22° to 95° F) More than six months: -30° to 25° C (-22° to 77° F)

• Charging Temperature:  5° to 40° C (41° to 104° F)

• Supported Aircraft Models:  DJI Mavic 3, DJI Mavic 3 Cine, DJI Air 2S

• GNSS:  GPS + Galileo + GLONASS

• Dimensions:  183.27×137.41×47.6 mm (antennas folded, controllers not mounted)183.27×203.35×59.84 mm (antennas unfolded, controllers mounted)

• Weight:  Approx. 680 g

• Model:  RM510
