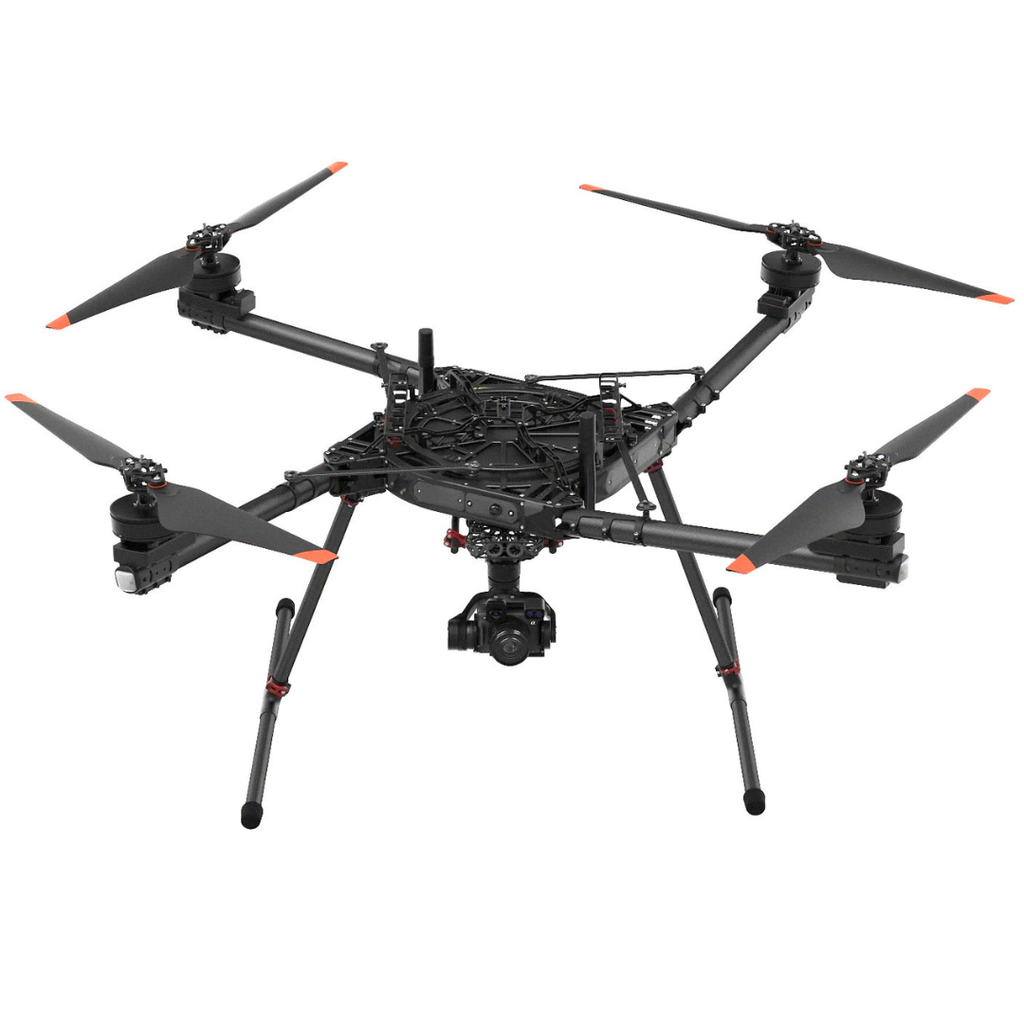

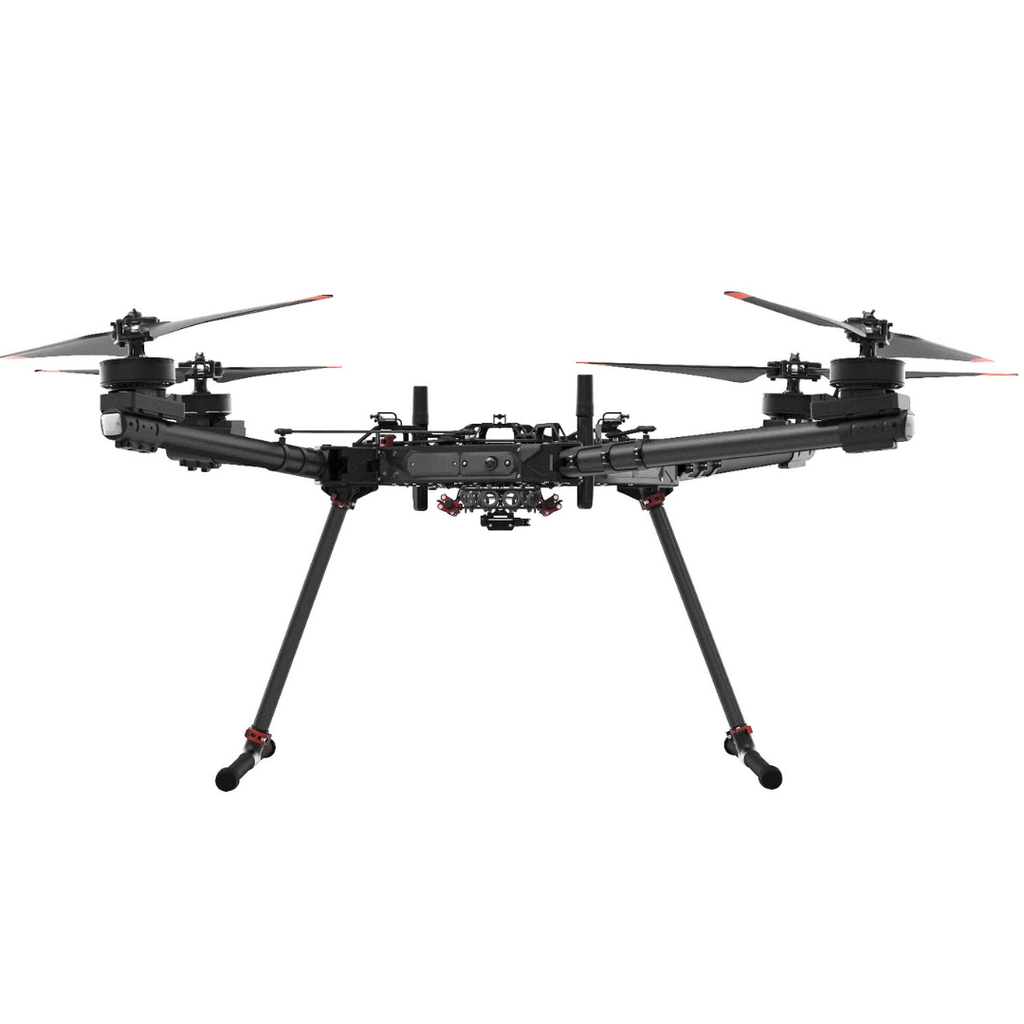

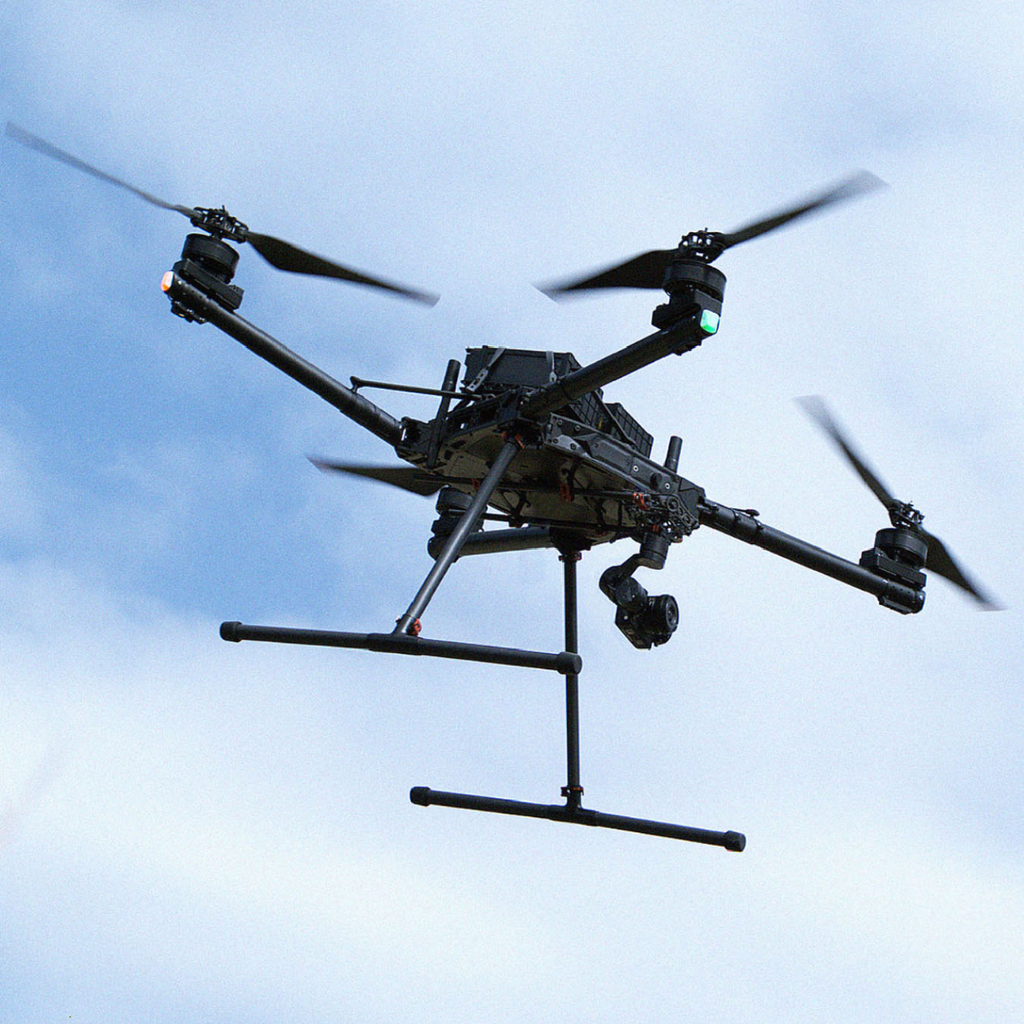

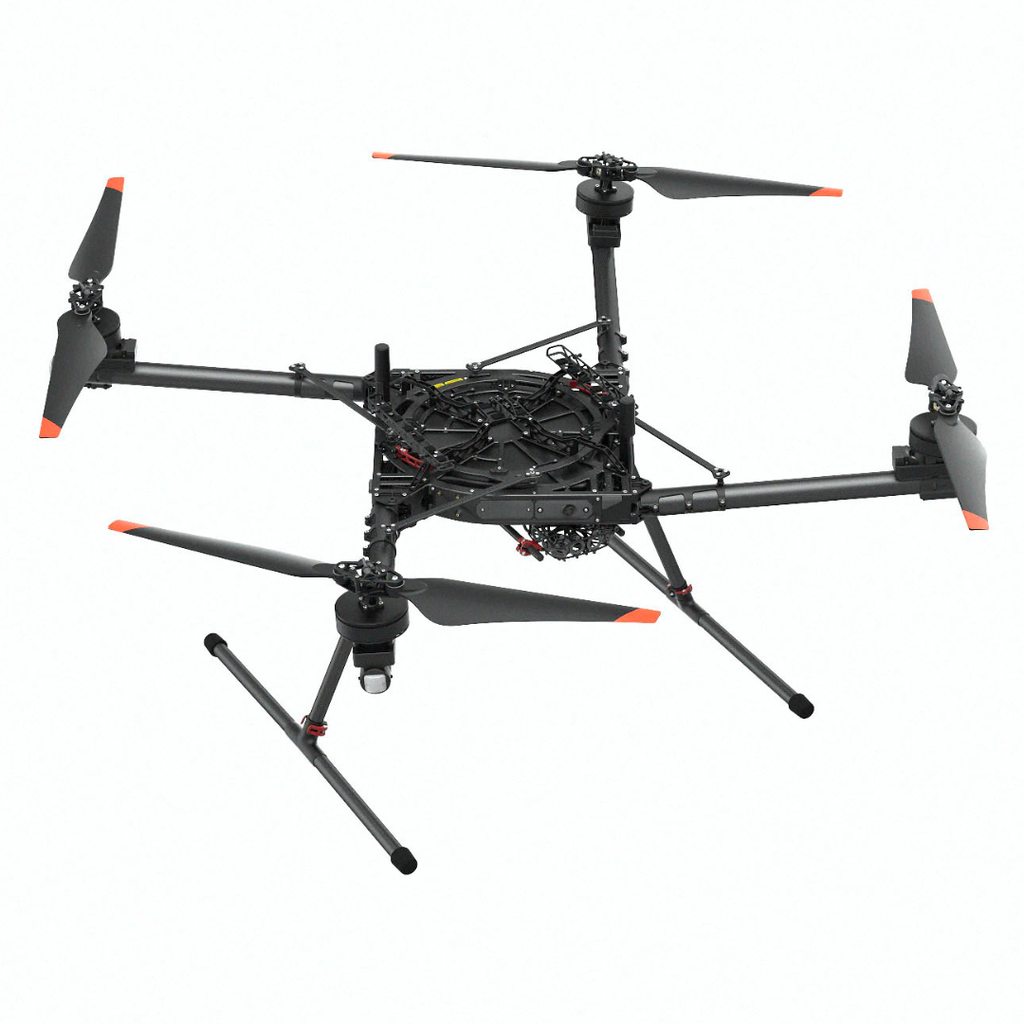

Freefly Alta X Gen2 Enterprise

The Freefly Alta X Gen2 combines the rugged, heavy-lift performance of the Alta X frame with the cutting-edge flight controller, smart payload interface, and workflow integration of Astro Max.

Designed for filming, inspection, mapping, and other enterprise level missions, Alta X Gen2 is engineered for professional operators who demand maximum lift, endurance, and flexibility. With a payload capacity of up to 35 lb, Alta X Gen2 can carry large cinema rigs, advanced sensors, or multiple payloads with stability and precision. Please note: Batteries, payload, and charger are not included.

Designed and assembled in the USA, with a dedicated US based engineering, operations, service, and support team.

Next-Gen Autonomy & Control

Powered by the same custom Skynode in Astro Max for enhanced GPS resilience, precise navigation, and intelligent failsafes.

35 lb Payload Capacity

Carry large cinema rigs, advanced sensors, or multiple payloads with stability and precision.

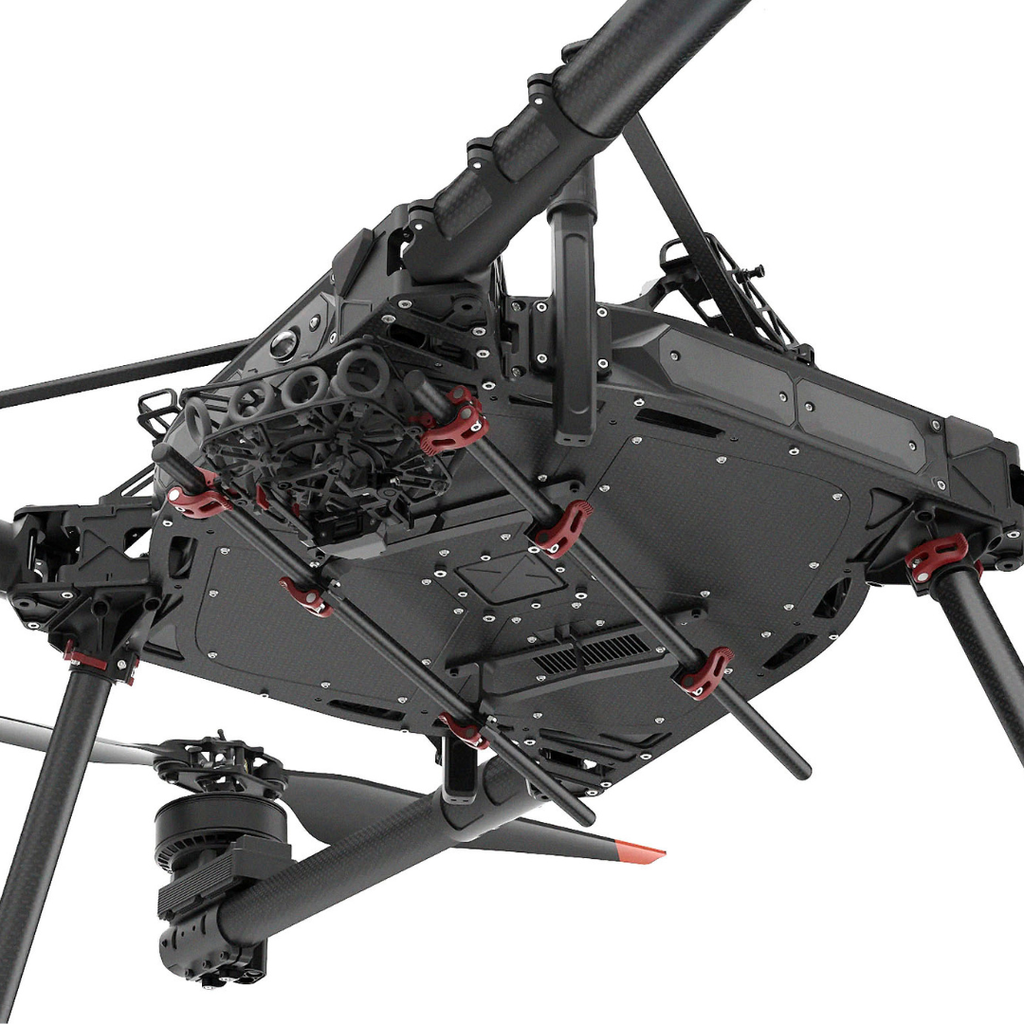

Smart Dovetail Payload Interface

Quick-connect options for Freefly and a growing field of third-party payloads, with expanded communication and power pathways. (Payloads sold separately).

Industrial-Grade Reliability

Alta X’s proven carbon-fiber frame, weather-resistant design, and rapid field-deployable setup.

Data-Driven Workflows

Integrated telemetry, mission planning tools, and logging for enterprise and inspection applications.

Expanded Connectivity and Integration

Leverage the internal payload bay to add custom integrations with onboard Ethernet, regulated payload power, and onboard LTE for remote connectivity.

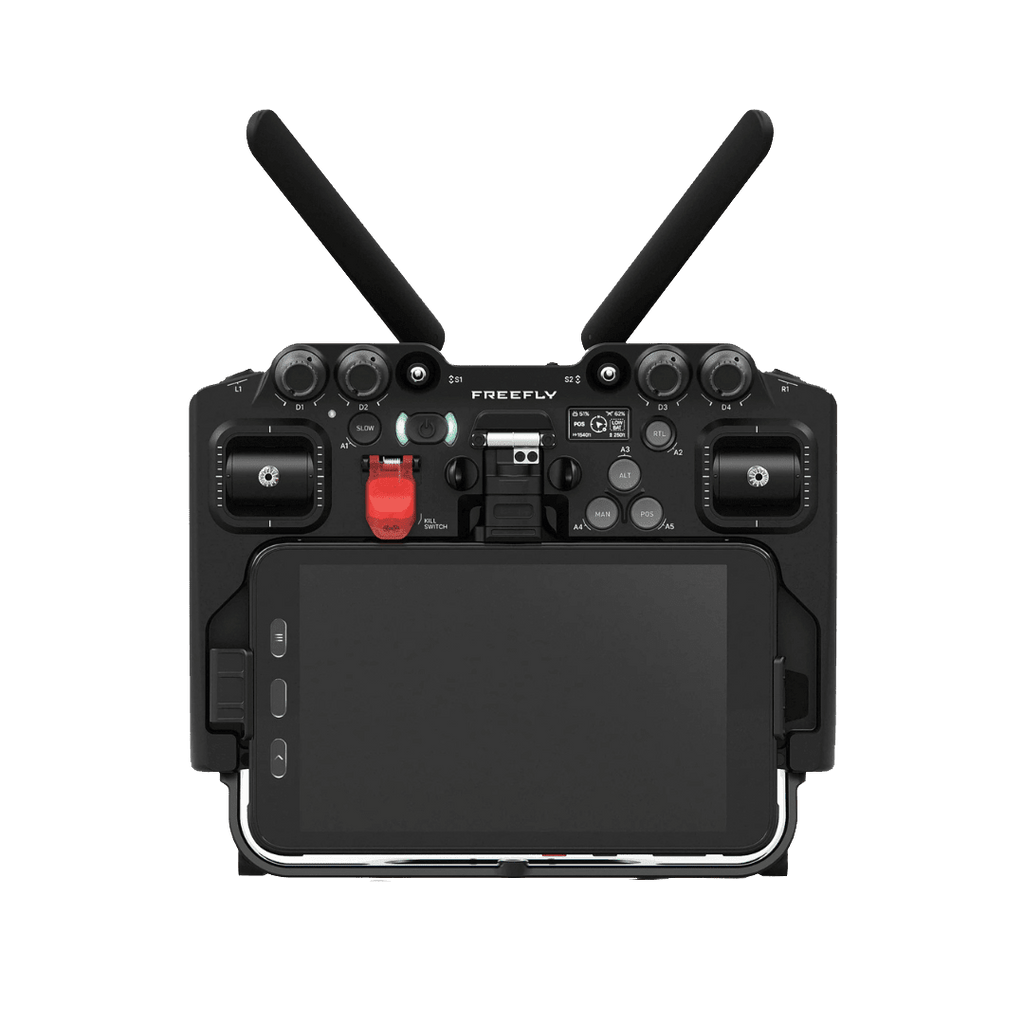

Pilot Pro Controller

The Freefly Pilot Pro Controller provides an intuitive, pilot-focused control experience for professional operations. Its IP43-rated design features conveniently placed controls for flight, camera functions, and other key features, with customizable buttons to suit individual workflows. The integrated fold-out 8-inch Samsung Galaxy Tab Active5 provides an HD live view and essential flight information for clear mission visibility.

The Freefly Alta X Gen2 - Built for the heaviest lifts, the toughest environments, and the smartest missions.

In the Box

Does not include batteries, charger, or payload. One dual channel charger and six (6) batteries is recommended.

1 - Alta X Gen2 Airframe (Standard Remote ID, with props installed)
1 - Alta X Gen2 Travel Case
1 - Pilot Pro Controller (preconfigured for Alta X Gen 2 with Herelink radio)
1 - Skid Landing Gear (448 mm / 17.6" legs only, with 450mm clearance from chassis to ground)
1 - 12mm Rail Kit (installed)
1 - Smart Dovetail with isolated mount for up to 1.5KG Freefly Payloads (installed)
Spare Parts
Tools

Compatibility

For a full list of sensors and payloads that have been integrated or operated with Alta X Gen2, please see Freefly Systems

RGB Sensors

• Freefly LR1 Payload (NDAA/Blue)
• Lenses tested with LR1
  • Sigma 24mm F3.5 (included with LR1 payload)
  • Sony FE 35mm F2.8
  • Sony FE 50mm F1.8
  • Samyang 75mm F1.8
• Sentera 65R Sensor (NDAA)

Thermal Sensors

• Freefly LR1 Thermal Upgrade* (NDAA)
• Sentera 6X Thermal Sensor** (NDAA)
• Sentera 6X Thermal Pro**

Multispectral Sensors

• Sentera 6X Multispectral Sensor** (NDAA/Blue)

Distance Sensors

• Freefly LR1 Laser Range Finder Upgrade* (NDAA)

LiDAR

• Freefly Flux L1 (with optional GNSS Mount)
• Freefly Flux O1 (with optional GNSS Mount) (NDAA)
• Freefly Flux H1 (with optional GNSS Mount)
• Emesent Hovermap ST-X**

*The LR1 Laser Range Finder Upgrade (910-00841) and LR1 Thermal Upgrade (910-00840) are modules for the LR1 Payload and cannot be used on Astro without the LR1.

**May require updated ILS mount for Gen2 for existing Sentera sensors from previous applications.

Compliance

• Standard Remote ID - YES
  • Ships with Remote ID preinstalled and configured for FAA Standard Remote ID compliance
  • FAA Compliant for Beyond Visual Line of Sight (BVLOS)
• FCC DA 25-1086 - YES
  • Alta X Gen2 ships with FCC approved critical components
• NDAA - NO
  • Alta X Gen2 Drone - Compliant
  • Pilot Pro - Complaint
  • Herelink radio link - Not Compliant
• DIU Blue - NO
  • Alta X Gen2 Drone - In process for approval
  • Pilot Pro Controller - Compliant
  • Herelink radio link - Not Compliant

Specifications
