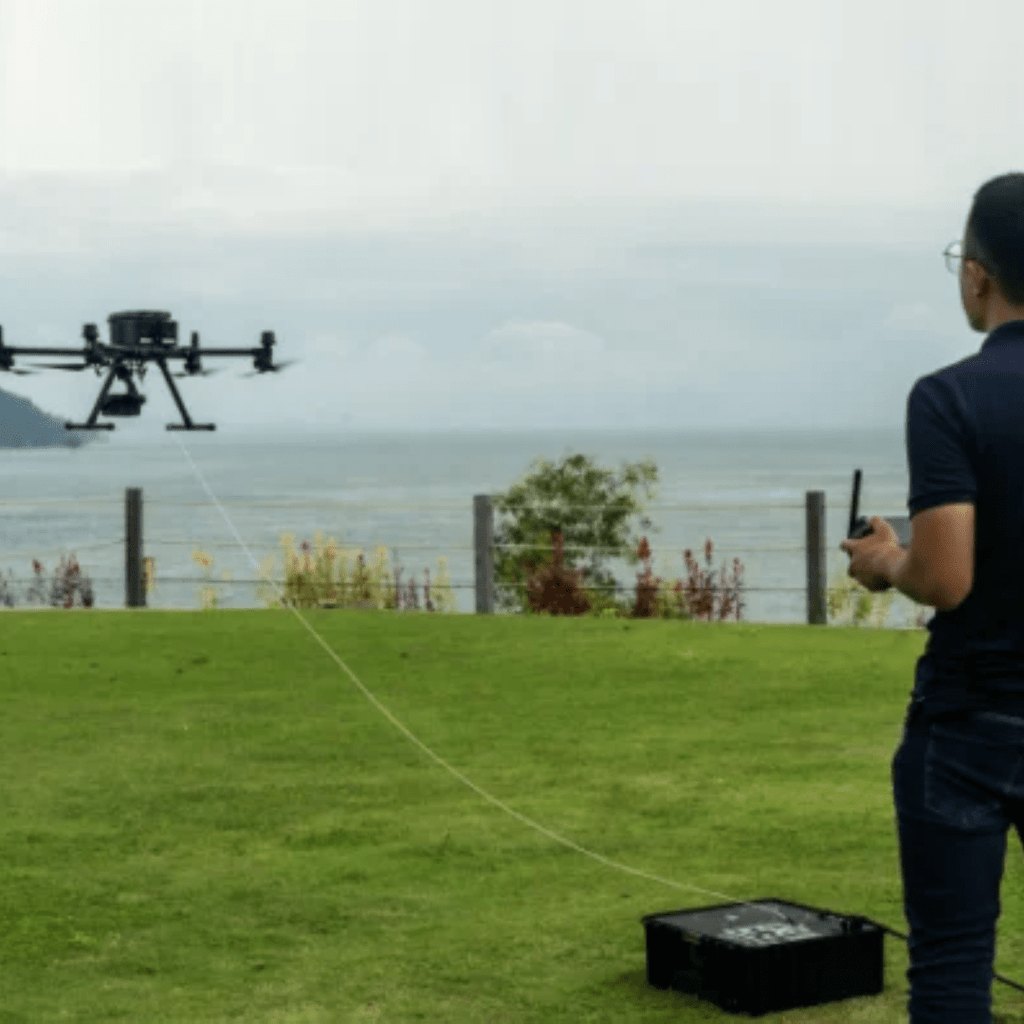

The specialized tethered system of Volarious V-Line Pro Tethered Power Kit for DJI Matrice 300/350 enhances the drone's performance by extending both its flight time and the operational use of its payloads. With the V-Line Pro, you can maximize the efficiency and duration of your aerial missions, allowing for longer and more comprehensive surveys, inspections, and monitoring activities.
Features:
-
Extended Flight Time: Extend flight time for the DJI Matrice 350 RTK with a tethered drone power system.
-
Continuous Power Supply: Maintain continuous power for critical missions with a high-capacity smart tethered power supply.
-
Fast Charging: Reduce downtime with fast charging capabilities that help keep the drone operational.
-
70 m Operating Height: Reach heights of up to 70 m (approximately 30 stories) using lightweight, aviation-grade cable.
-
Responsive Smart Tension: Features reel speeds of 7 m/s ascending and 5 m/s descending to minimize tether slack.
-
Easy Setup: Compact design weighing less than 20 kg. Designed for one-person setup, with the system ready to fly in under 5 minutes.
-
Integrated App Control: Manage all tether kit parameters directly through the drone controller.
-
Versatile Applications: Support aerial surveillance and long-duration inspections with a robust tethered power solution.
Advanced Thermal Control
System automatically sense the internal temperature at each location of the V-Line Pro with 6 temperature sensors and adjust all 9 fans speed automatically.
Active Fault Detection
All errors will be notified both on the V-Line Pro and the controller screen through the supporting app to ensure a quick response.
Built-In Protection
The tether system is guarded by an Over Current Protection and Short Circuit Breaker for excess power that the equipment can safely carry.
Precision Engineered Modular Parts
All of V-Line Pro parts use high quality automotive/aerospace grade components. And the modular system simplifies the process of replacing any parts that need repair.
One Application for All
The Volarious App provides comprehensive monitoring tools and advanced features for efficient, versatile aerial operations. Remote tracking displays essential system parameters and statistics, including restricted flying zone boundaries and external wind speeds, helping support safe and efficient drone operation within the set environmental conditions.
Advanced applications further expand system capabilities. V-Scan tracks multiple individuals and vehicles, providing detailed insights and surveillance capabilities. Sentry Mode allows a sequence of shots to be programmed, creating a customizable surveillance system for a range of operational needs.
Drone not included.
Volarious V-line Pro Tethered Power - Unlilmited Energy for the Payload Master

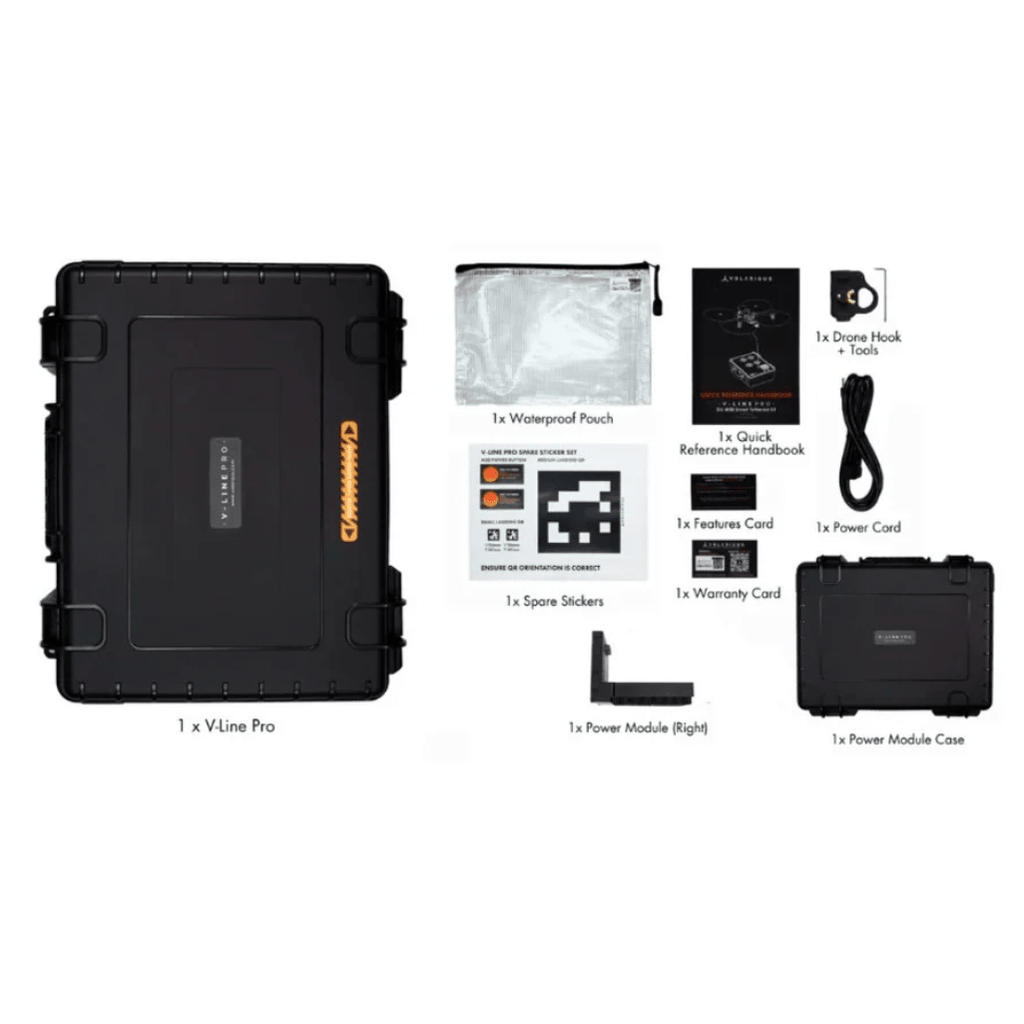

In the Box
Volarious App Compatible with M300/350 Series

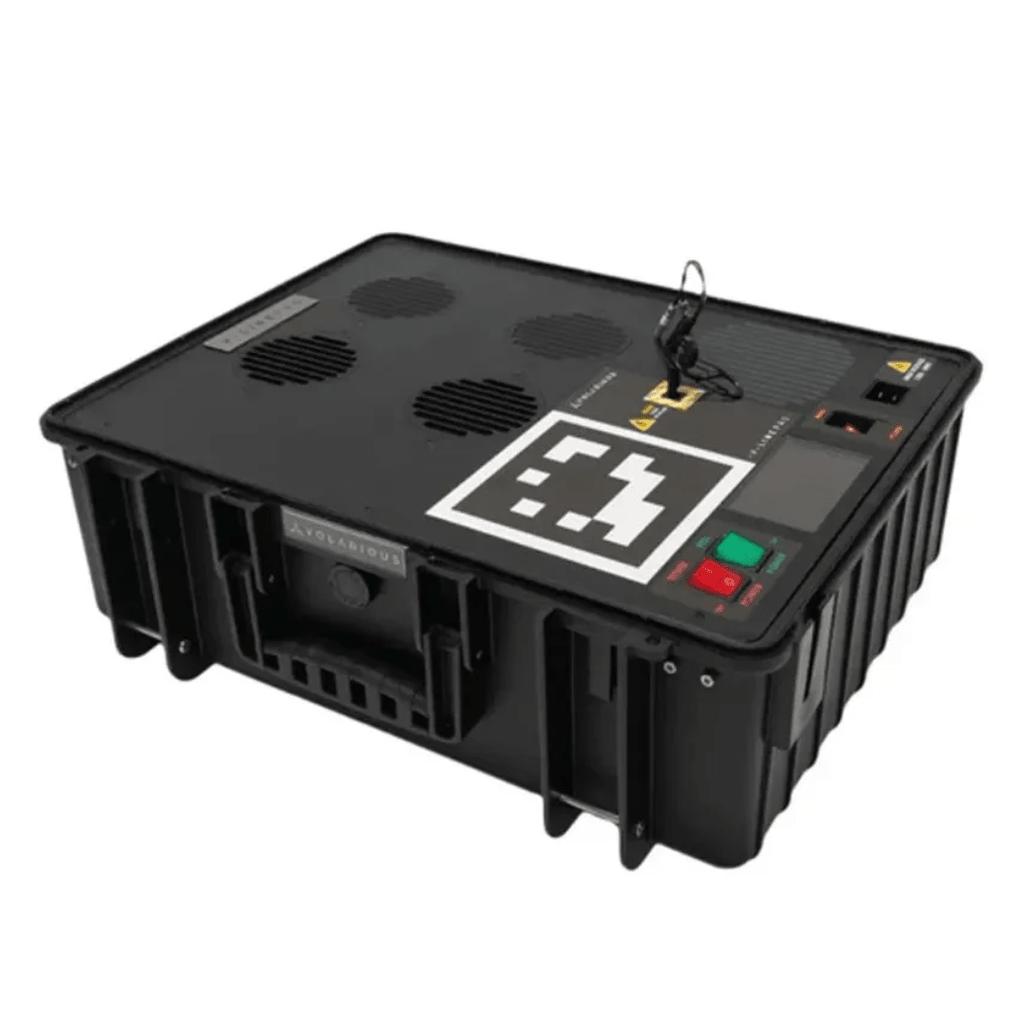

1 - Volarious V-Line Pro Smart Tethering Station
1 - Power Module (Right)
1 - Power Module Case
1 - Waterproof Pouch
1 - Power Cord
1 - Drone Hook Tools
Spare Stickers
User Manual
Volarious 1 Year Limited Warranty
Specifications
V-Line Pro Tether System for DJI M350 RTK
-
Dimensions: 470 mm x 365 mm x 190 mm
-
Net Weight: 19 kg
-
Input Voltage: 90-264 VAC
-
Output Voltage: 380 VDC - 410 VDC
-
Max Output Current: 3.5A
-
Operating Temperature: -10°C - 50°C ( 14°F - 122°F )
-
Maximum Tether Operating Range: 70 m (230ft)
DJI M350 RTK Power Module
-
Dimensions: 133 mm x 93 mm x 92 mm
-
Net Weight: 520g
-
Input Voltage: 380-410 VDC
-
Output Voltage: 45-50 VDC
-
AUX Output Voltage: 45-50 VDC
-
Max Output Power: Drone + AUX 3000W
-
Operating Temperature: -10°C - 50°C ( 14°F - 122°F )
-
Backup Battery Details: TB65 Intelligent Flight Battery
